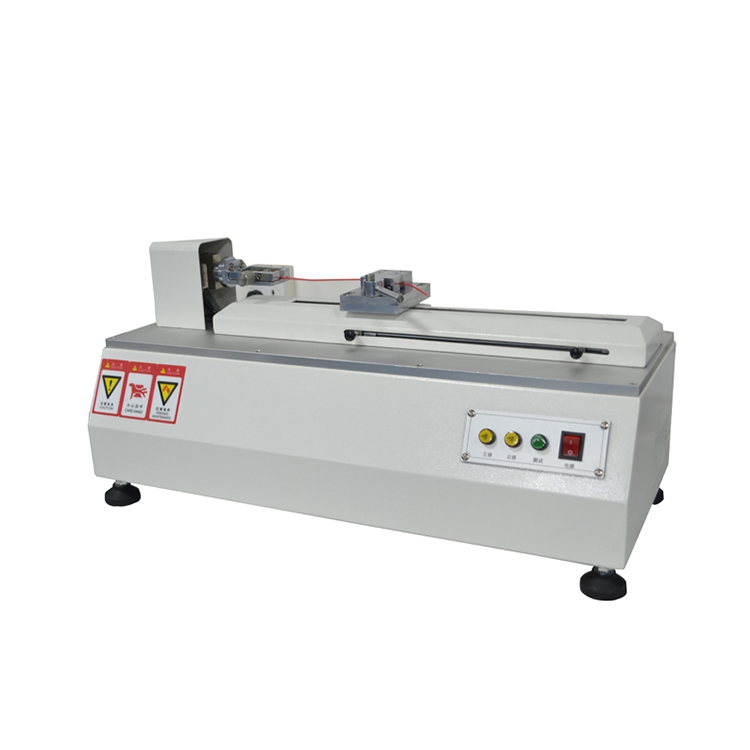

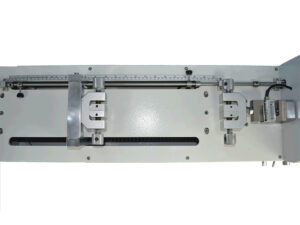

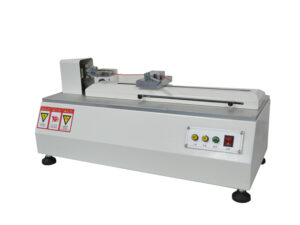

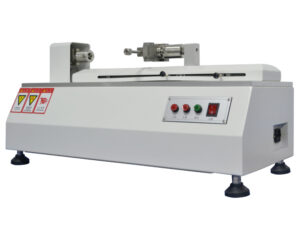

Summary: computerized horizontal 200kg tensile testing machine

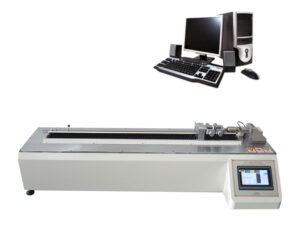

Computer horizontal 200kg tensile testing machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive, computer and color inkjet printer.
High-precision electronic motor can be set to five-speed,the components are connected by plug-way, Floor standing models, it is taken account of modern industrialdesign and ergonomics in modeling. and coating.
Computer horizontal 200kg tensile testing machine can be tested all the materials in stretch, compreession, bending , shear, embedded relay, peeling, tearing, crack, etc. Such as rubber, plastics, leather, metal, nylon wire, fabric, paper, aerospace, packing, construction petrochemical, electrical, vehicle.
Test standards: Computer horizontal 200kg tensile testing machine
GB/T4689.20-1996 measuring fastness of leather’s adhesion
QB/T2710-2005 measuring leather’s expansion and the rate of elongation
QB/T2711-2005 measuring tear force of leather
QB/T2712-2005 measuring leather’s strength and stretch of spherical crack test
ISO 13934 Test Machines for Grab and Strip Tests of Fabric
ASTM D76 Tensile Textiles Test Machine
ASTM D751 Coated Fabrics Rainwear Test Equipment
ASTM D1683 Sewn Seams of Woven Fabric
ASTM D4964 Tension and Elongation of Elastic Fabrics
ASTM D5034 Grab Testing for Textile Fabrics
ASTM D5035 Breaking Force and Elongation of Textile Fabrics by Strip Method
ASTM D6775 Break Strength and Elongation Test Equipment for Textile Webbing, Tape and Braided Material
ASTM D7269 Tensile Testing of Aramid Yarns
Test items: Computer horizontal 200kg tensile testing machine
Common items: ( display data and calculation )
tensile stress
tensile strength
rate of elongation at break
fixed stress
rate of stress at break
tear strength
the value of force at any point
rate of elongation at any point
stress strength
pull-out strength
Technical parameters: Computer horizontal 200kg tensile testing machine
Product Name
Computer horizontal 200kg tensile testing machine
Load cell
10, 20, 50, 100, 200kg (Optional)
Resolution of force
1/200000
Accuracy of force
≤0.5%
Power magnification
7 automatic switching
Displacement resolution
1/1000
Accuracy of displacement
≤0.5%
Resolution of extensometer
1/1000
Accuracy of extensometer
≤0.5%
Range of speed
0.01-500mm/min or 1000mm/min(according to
the needs of customer)
Effective Tensile stroke
300mm(can be increased theheight according to customer’s requirement)
Testing width
380mm(can be increased the width)
Power supply
220V,50HZ
Power
about 2KW(depending on different demand of force,
using different motor)
Main feature: Computer horizontal 200kg tensile testing machine
the surface of appearance using electrostatic spray, simple and generous, multi-functions and economy.
digital force displayed by LCD , discernible tension or pressure, LCD display clearly
Three kinds of units: N, KG, Lb, option or automatically exchange;
LCD with backlight can be used in low-light environments
Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.
The system would shut down if overload or over-trip
Structure of single-column is beautiful, sophisticated and economy.
