Brief Introduction

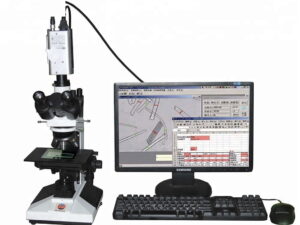

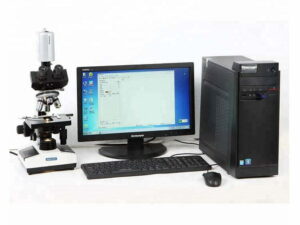

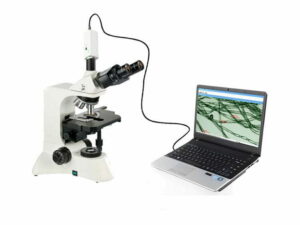

The fiber analysis system is a new human-computer interactive fiber diameter measurement analyzer. The instrument connects the optical microscope with a computer through a high-resolution industrial camera, and the professional analysis software is used to complete the testing of the fiber diameter and cross-sectional area. It can be used to measure the fiber diameter measurement of animals’ fiber such as wool and rabbit hair and various natural, man-made mixed fibers. The measuring range is 2~200 μm, precision is 0.1 μm
Standards:
GB/T 10685~1989: Test method for determining wool fibres diameter by the projection microscope;
GB/T 16988~1997: Quantitative determination for mixtures of special animal fibre and wool;
FZ/T30003~2000: Method for quantitative analysis of ramie (flax hemp) cotton blended textile–Micro projection;
SN/T0756~1999: Method of quantitative analysis for bast/cotton blended textiles by the projection microscope for import and export;
AATCC 20A~1995: Fiber Analysis: Quantitative
Features:
This system uses computer digital image processing technology, which is composed of computers, cameras, microscopes, printers and detection software. It also provides fiber diameter automatic measurement function and hotline help function;
It is used for observing the cross-sectional morphology and measuring the cross-sectional area of various types of animal fibers, chemical fibers, shaped fibers, and hollow fibers;
Testing heterotypic fiber abnormalities;
The fiber content of various blended products can be obtained through the analysis of the single fiber transverse morphology and area measurement in the blended product;
Professional analysis software, data and reports which are output as EXCEL, with the standard reports;
Operator can work without the dark room condition, which reduces the fatigue with the demonstration;
Improve the efficiency, much greater than the traditional detection speed;
The testing records can be printed out, which improves the preciseness, and the controversial sample images can be printed out for reference;
Dark-colored fiber can improve the detection effect without stripping the color;
It is equipped with English software, cross-section software and cotton and linen software.
Specifications:
Model
NG-529
Operation Mode
manual measuring, automatic measuring,
multi-point measuring, automatic statistical analysis
Instrument Structure
computer, industrial camera, microscope, and printer
Application Range
flora and fauna fiber
Measuring Range
0~200μm
Measuring Accuracy
0.1μm
Power Supply
AC220V, 10W
External Dimension
1200mm*500mm*600mm
