SUMMARY:

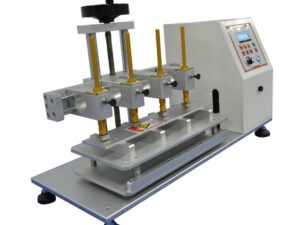

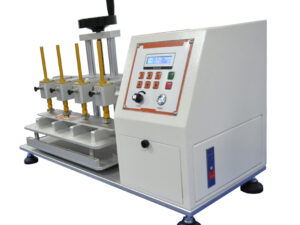

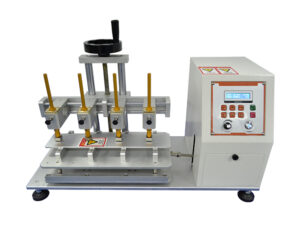

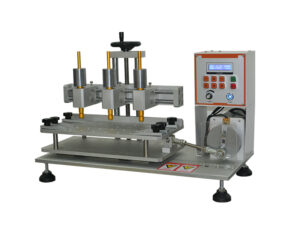

Alcohol Eraser Abrasion Resistance Tester is suitable for printing on the surfaces of electronic products such as TV remote control key screen printing, plastics, mobile phone housing, earphone housing division silk screen, battery silk screen printing, keyboard printing, wire screen printing, leather, etc. Wear resistance, assess its degree of wear. This machine can be used for three typical wear tests of alcohol or other liquid media and cotton cloth friction test, eraser friction test, pencil hardness friction test. The machine reciprocates the product back and forth under certain test loads, test times, and test strokes.
Applicable to wear resistance test on various surfaces, suitable for wear resistance test of mobile phone, MP3, CD player, laptop computer and various surface coating test products, friction surface life of various products and printing surface, use of eraser rub or alcohol rub dual purpose.
STANDARD
GB/T6545/1539/454,ISO2759/2758,CNS2054/1353,ASTM D2210
FUNCTIONS
The machine has the functions of adjustable speed and adjustable stroke;
2, Can display the current test speed and test times;
3, Multi-function counter, can preset the number of tests required to reach the automatic shutdown function;
4, With two kinds of fixtures: Eraser test fixture, alcohol test fixture
5, Automatic memory function when power off
ADVANTAGES
The cabinet is treated with electrostatic paint, and the workbench and friction fixture are all sandblasted on the surface of the aluminum material. It has strong corrosion resistance, structural fastening, reasonable design, beautiful and generous operation, safe and stable operation, accurate;
2. The number of tests can be preset, with power-off memory function, adjustable test speed and stroke, humanized design, LCD display of speed and times, convenient, quick and intuitive;
3, with a multi-function test, can be used for alcohol or other liquid and cotton cloth, eraser, pencil, steel needle and other friction test.
TECHNICAL PARAMETERS
Test station
3, 4 or specified
Test trip
10-60mm (manually adjustable)
Test counter
0-99999999 (can be preset, LCD display)
Friction media
Standard cotton cloth, eraser, Chinese 2B pencil
Test Clamp
Eraser test clamp, Alcohol test clamp
Test load
75-960g
Test speed
5～100rpm/min
Load weight
10, 25, 50, 100, 200,500g each for two
Working power
AC220V 50HZ
