45 Degree Flammability Tester, 45 Degree Textile Combustion Testing Machine
Model
NG-509
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

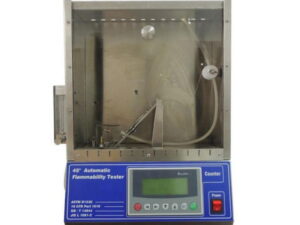

45 Degree Flammability Tester, to determine fabric flammability (fabric burning test) under controlled conditions. Automatic igniter is equipped to ensure the 45 degree fabric flammability tester safe and easy to operate. Stainless steel test cabinet with glass observation panel provides with automatic timing of flame spread in 0.1-second increments from ignition. Brushing Device is included.
Test Principle:
45 Degree Flammability Tester is designed as a whole box type and consists mainly of a control system and a combustion chamber. Install the specimen on the specimen rack with an angle of 45° in the combustion chamber, then let the nozzle close to the sample and ignites the specimen with the flame for a specified time and then returns. Evaluate the flammability scale of the sample by observing the combustion and flame propagation rate on the sample. This instrument is suitable for the ASTM flammability test and FTMS flammability test of clothing fabric, decorative fabric, tent fabric, etc.
Standard:
ASTM D1230 CFR 16 Part 1610 GB/T 14644 FTMS 191-5908
CAL TB 117 NFPA 702
Features:
Stainless steel test chamber with heat resistant glass viewing window is easy to observe the testing conditions.

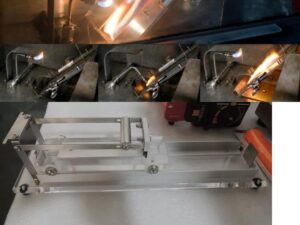

Fully equipped with accessories, such as specimen holder, brushing device.
Adjustable length of flame with standard 16mm standard gauge makes testing more convenient and easy-to-operate.
Preset ignition time meets different testing requirements.
Specifications:
Angle of inclination
45°

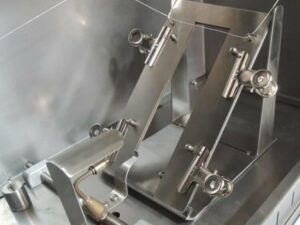

Specimen holder
U-shape 205mm×76mm (inner 152mm×38mm）
Nozzle to specimen distance
8mm
Specimen size
50*150mm
Ignition time
Adjustable with 0.1s accuracy
Time counter
Automatic timer with 0.1s accuracy
Igniter
Needle valve burner
Indicator finger
Stainless steel typical indicator finger
Gas shield
Stainless steel typical gas shield

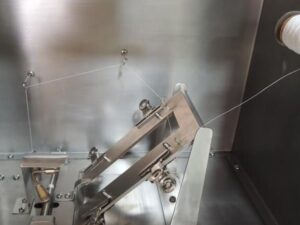

Terminal point
Automatic stop when reaching stop thread
Power supply
220V 50Hz
Dimension
420mm×260mm×526mm
16.54inch×10.24inch×20.71inch
