AATCC Crock Meter, Textile Dry Wet Rubbing Colour Fastness Tester
Model
NG-302
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

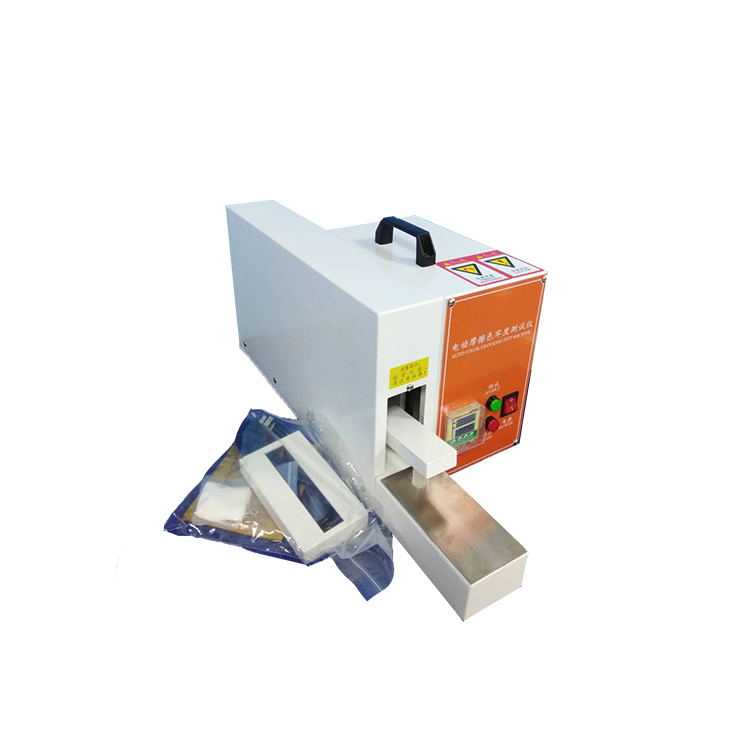

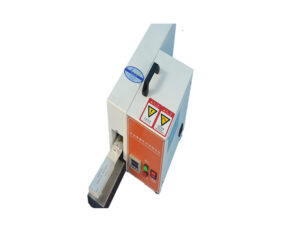

AATCC Electronic Crockmeter To determine the color fastness of textiles to dry or wet rubbing. A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results. Fitted with a pre-determined electronic counter for strokes up to 999,999 times.
Principle:

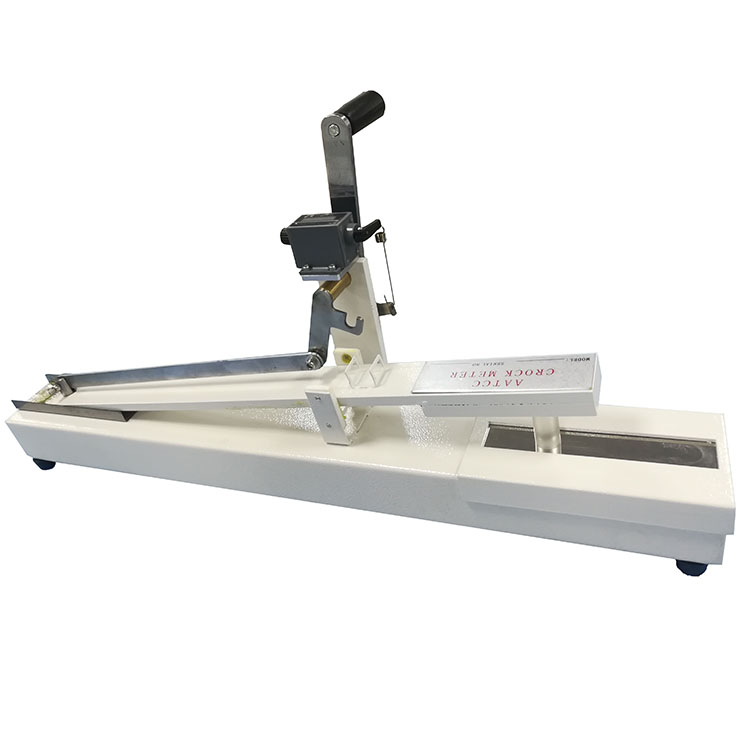

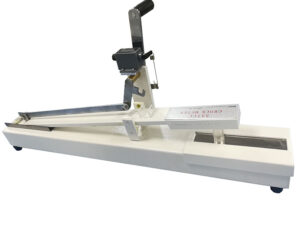

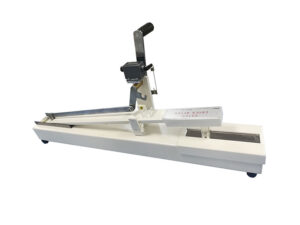

Ramp Crock (Digital / Motorised) provides a reciprocating rubbing motion simulating the action of a human finger and forearm. It is used for determination of fastness of dyed and printed tesxtiles to dry and wet rubbing.
The Ramp Crock(Digital ,Motorised)is so designed that the 16mm diameter finger moves back and forth , with each complete turn of the crank, in a straight line along a 100mm track on the specification , with a downward force of 9N.
Standards：
AATCC 8/165
ISO 105 × 12/D02
BS 1006 D02
BS 4655
Specifications:
Diameter of the rubbing finger
16mm
Counter( Re-SetTable)
0~999
Force on the finger
9 N
Size of crock square
19*25 mm
Center to center traverse of the finger
100 mm
Size of Test Specimen
200*50mm
Finish
Light gray
Packing Dimension of the Unit
540*390*245 mm
Gross Weight of the Unit
21KG
Standard Accessories:
AATCC rubbing clothing 1 pc
Sand paper 2 pcs
Rings 2 pcs
