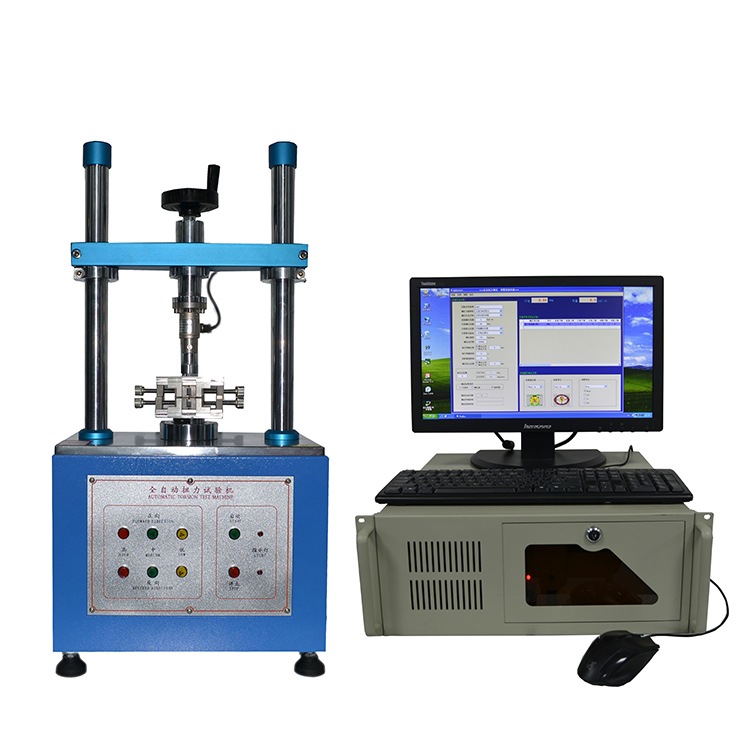

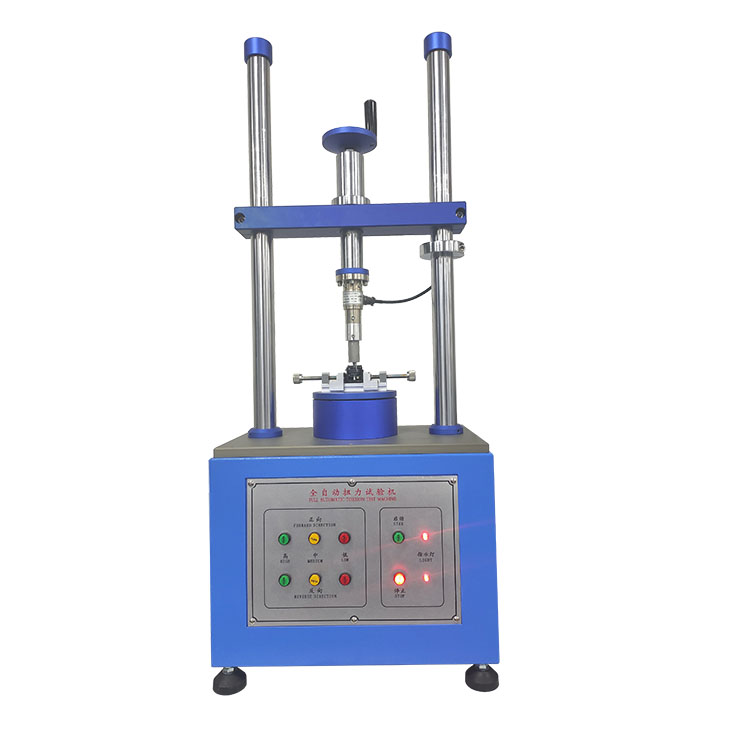

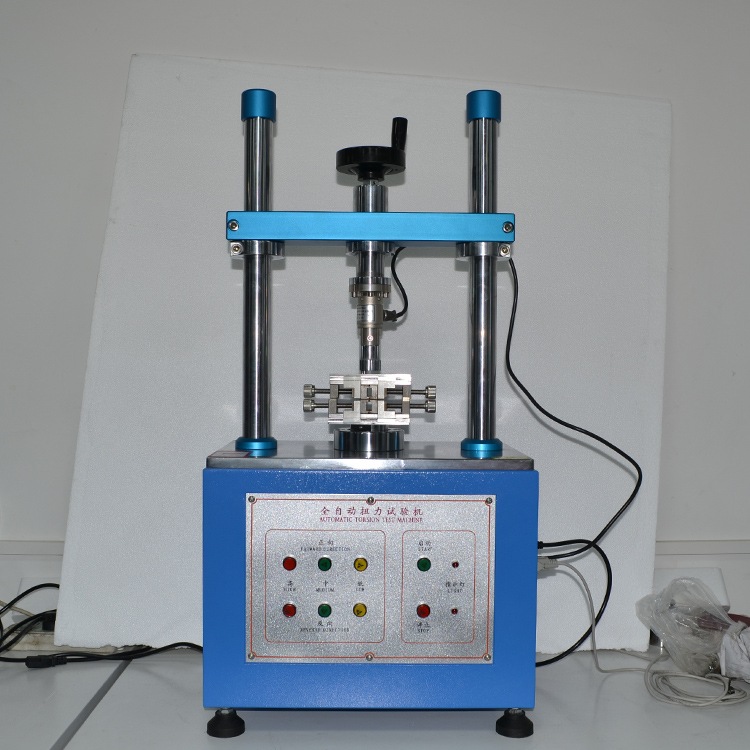

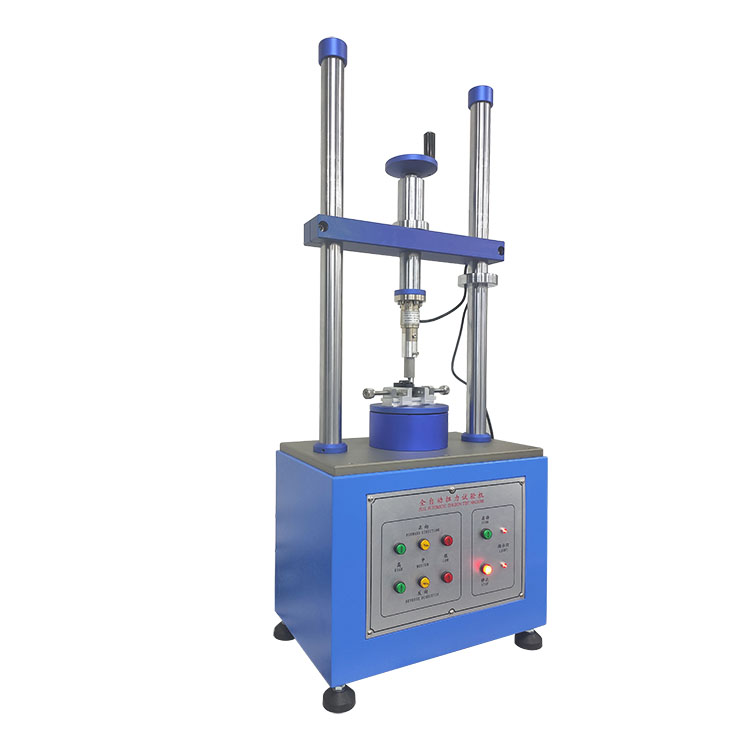

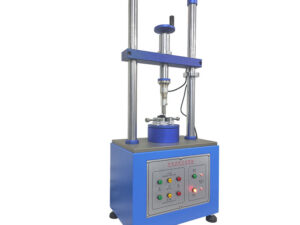

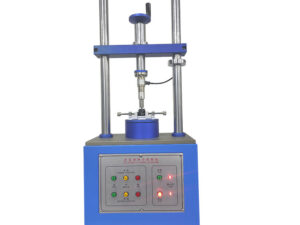

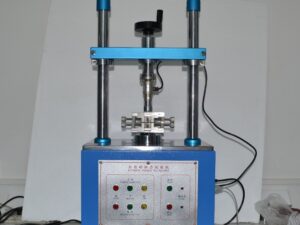

Automatic Torsion Test Machine, Universal Torsion Twist Tester
Model
NG-203
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Servo Control Automatic Torsion Testing machine is applicable in testing the rubber, plastic film, cable,
Spring, fabric, paper, aluminum board and so on. It is ideal for high-capacity tension, compression, bend/flex, and shear testing; These machines are guaranteed to meet the relative requirements of ISO, ASTM,JIN, GB and many other testing standards
Features:
Torsion test machine equipped with a high-resolution digital encoder to ensure precise control and
measurement of specimen position.
Use famous brand Panasonic servo motor, which ensure high efficiency, steady transmission and low noise.
3. The shoulders of the test specimen can be manufactured in various ways to mate to various grips in the testing machine.
The general performance of pull out tester reaches the international standard.
Easy to operate. Suitable for laboratory and production environment.
Standards:
ISO 898-7:1992, Mechanical properties of fasteners;
ISO 16047-2005, Fasteners-Torque/clamp force testing;
Etc..
Specifications
Item
Automatic Torsion Testing Machine
Max. torsion
10, 50, 200, 500kgf.cm (optional)
Motor
Servo motor
Range of speed
60~15000/min
Min. display torsion
1, 10, 20, 50gf.cm
Min. Display angle
0.1°
Operate
computer control
Size
360*260*940mm(W*D*H)
Weight
Approx.80kgf
Power
AC 220V
