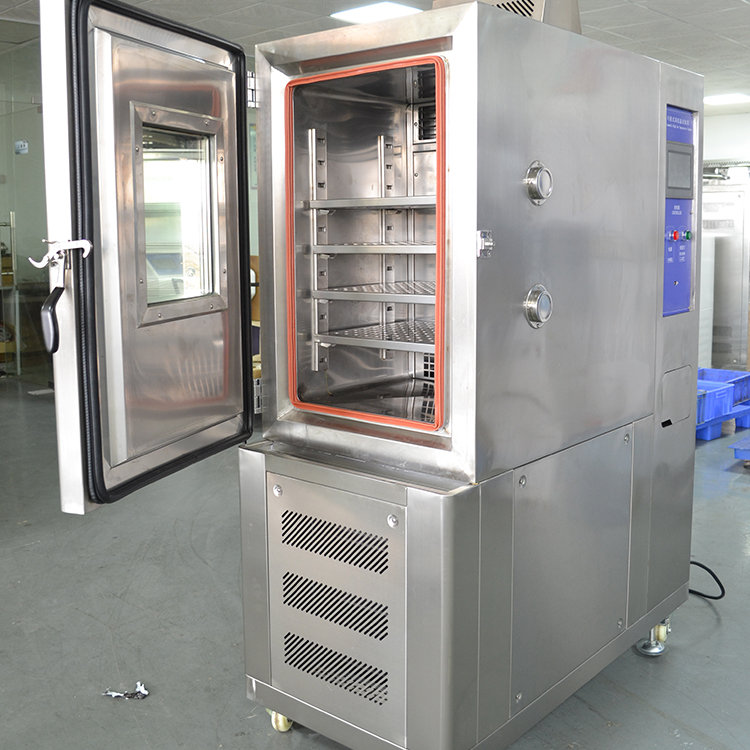

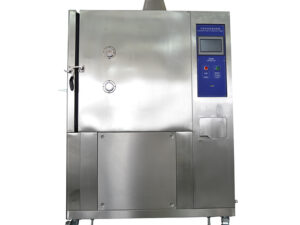

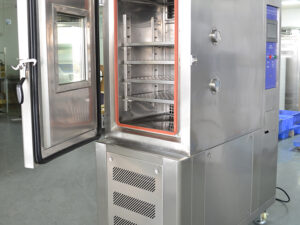

Industrial Climate Controlled High Low Temperature Test Chamber, High Low Temperature Tester
Model
NG-GD
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
High low temperature test chamber is used to test or composite material structure,instant by the extremely high temperature and low temperature under continuous environment can endure degree,in order to test chemical change in shortest time caused by heat bilges cold shrink or physical damage.Applicable to metal and plastic,rubber,electronic…such as material, can caused as the basis of its product improvements or reference.
Standard：JIS C8990,IEC61730-2,IEC61215/IEC61646/ IEC61701/ IEC 61370…
Technical Parameters
Model
Inner Chamber Volume
Internal Dimensions
W*H*D(cm)
External Dimensions
W*H*D(cm)
NG-GD80
80L
40*50*40
90*143*100
NG-GD150
150L
50*60*50
100*153*110
NG-GD225
225L
60*75*50
110*168*110
NG-GD408
408L
80*85*60
130*178*120
NG-GD800
800L
100*100*80
150*193*140
NG-GD1000
1000L
100*100*100
150*193*160
Item
High Low Temperature Control Stability Test Environmental Chamber
Temperature Range
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation
± 0.5 ℃
Temperature Deviation
± 2.0 ℃
Cooling Rate
1 ℃ / min
Heating Rate
3 ℃ / min
Refrigerant
R404A, R23
Heating Element
Nichrome heater
Controller
Programmable color LCD touch screen controller
Temperature Sensor
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Exterior Material
Steel Plate with protective coating
Interior Material
SUS304 stainless steel
Standard Configuration
1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply
220V 50Hz / 380V 50Hz
Maximum Noise
65 dBA
Feature:
High performance and quiet operation (65 dBa).
Space-saving footprint, designed for flush installation to wall.
Stainless steel exterior.
Full thermal break around door frame.
One 50mm (2″) or 100mm (4″) diameter cable port on left, with flexible silicone plug.
Three levels of overheat protection, plus overcool protection.
Easy lift-off service panels, electrical access on left.
Detachable eight-foot power cord with plug.
ETL listed electrical panel conforming to UL 508A.
Standards:
GB11158 high-temperature testing condition
GB10589-89 low-temperature testing condition
GB10592-89 high-low-temperature testing condition
GB/T2423.1-2001 low-temperature testing condition
GB/T2423.2-2001 high-temperature testing condition
GB/T2423.4-93 alternating temperature testing machine
GB/T2423.22-2001 temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
GJB150.3 high-temperature test
GJB150.4 low-temperature test
ETC…
