IEC60950 Household Appliances Scratch Resistance Strength Tester
Model
NG-237
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
This Scratch Resistant Testing Machine is designed and manufactured in accordance with the requirements of Article 2.10.8.4 of GB4943.1-2011, Article 2.10.8.4 of IEC60950, Article 21.2 of GB4706.1 and Article 21.2 of IEC60335-1. It is suitable for solid insulation of household appliances and similar products. Scratch test on accessible parts or printed boards to ensure that the material has sufficient strength without being pierced by sharp tools.

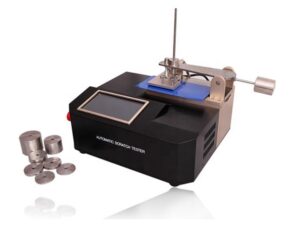

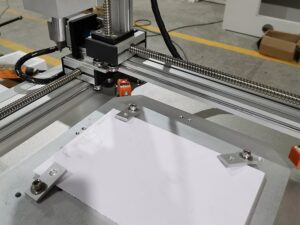

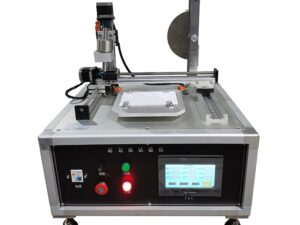

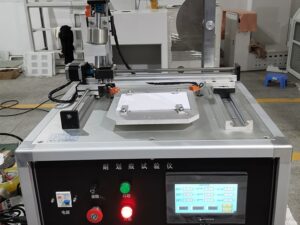

This machine adopts PLC + touch screen control system with stable performance. Rotate the work surface to easily achieve scratch test in both vertical and horizontal directions.
Structure and Principle:

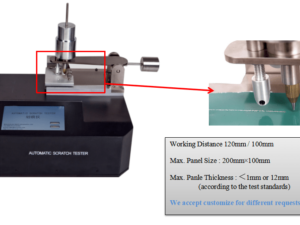

The scratch resistance test uses a hardened steel pin for scratching. The end of the steel pin should be tapered with a apex angle of 40°. The tip should be rounded with radius of 0.25 mm ± 0.02 mm. The scratch passes through five pairs of conductive parts, including the middle interval, and the middle interval should be the part with the greatest potential gradient during the test.
When performing the scratch test, scratches were performed at a speed of 20 mm/s ± 5 mm/s in a plane perpendicular to the edge of the conductor. The steel pin should be properly loaded so that the hardend steel pin can apply a force of 10N ± 0.5N along its axial direction. The scratch interval should be at least 5mm and at least 5mm away from the edge of the sample.
Specifications:
Scratch Speed
0~25mm/s (adjustable)
Test Times
0~9999 times (adjustable)
Scratch Spacing
0~50mm (adjustable)
Working Table
3600 rotation
Force Applied
10N±0.5N (option: 30N±0.5N equip with 20N weights)
Scratch Needle
R0.25 ± 0.02mm.
Control System
PLC+touch screen
Drive Mode
Stepping motor
Power
220V / 50Hz
