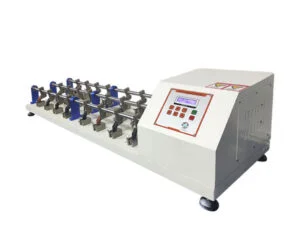

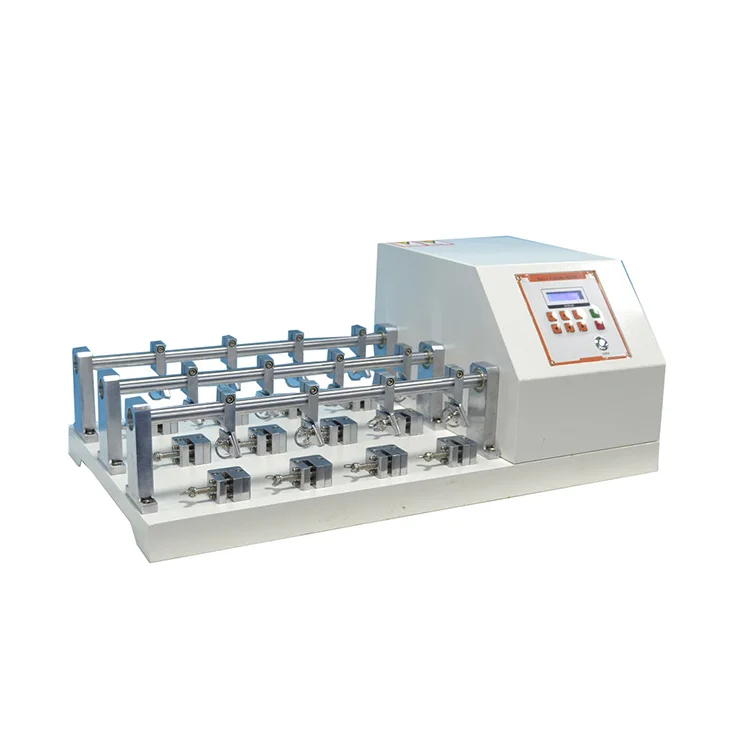

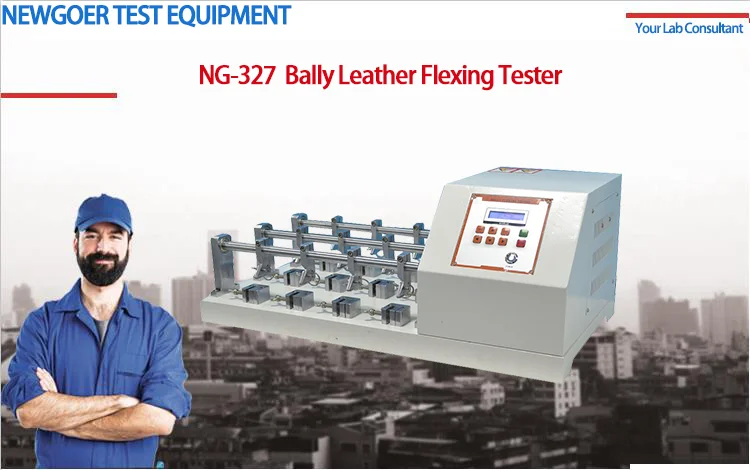

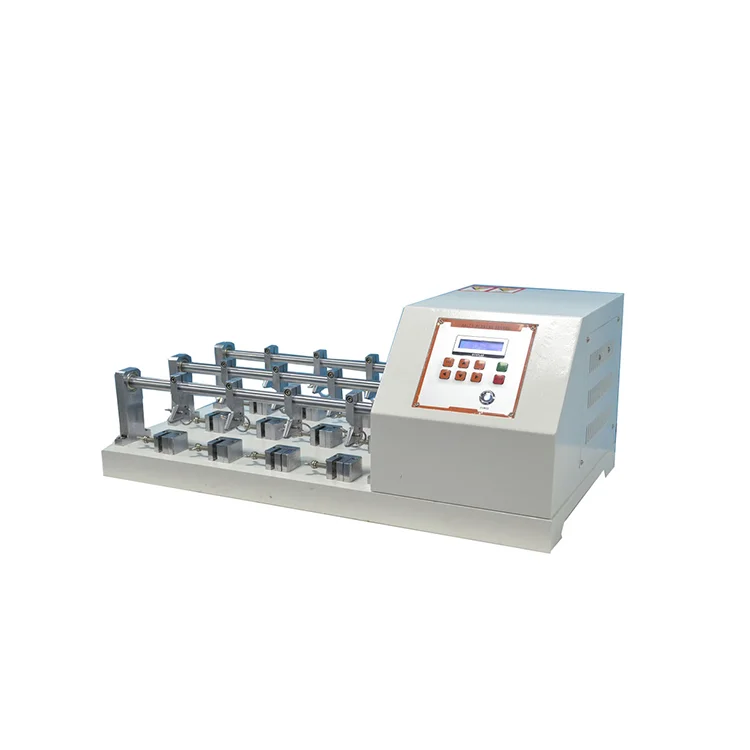

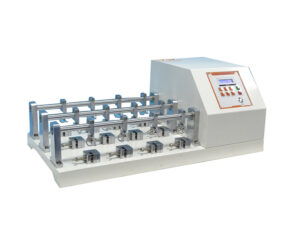

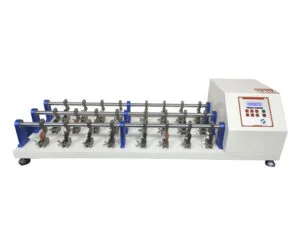

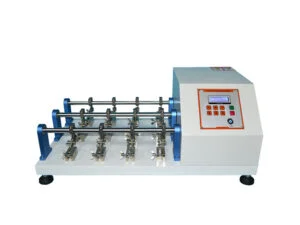

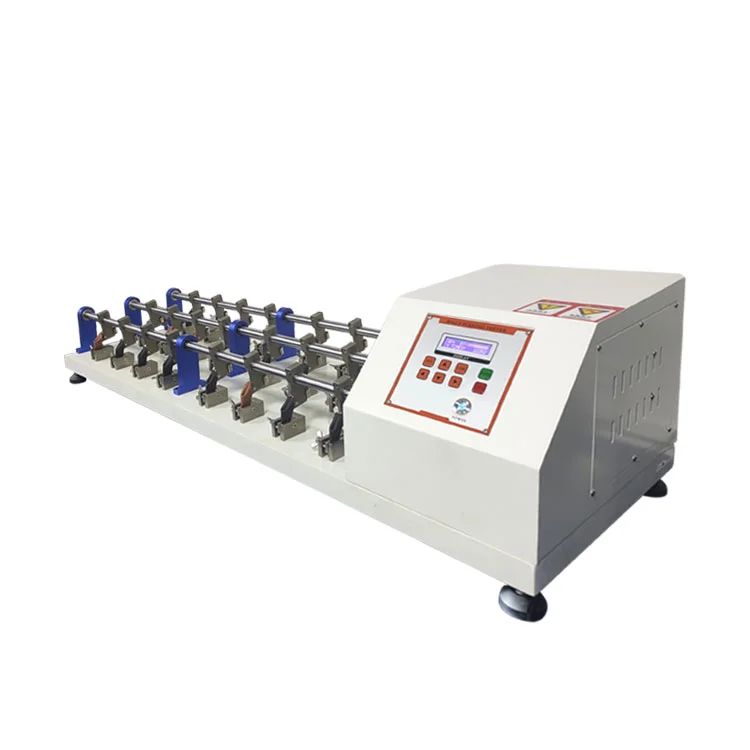

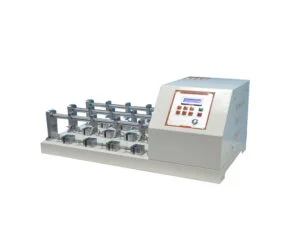

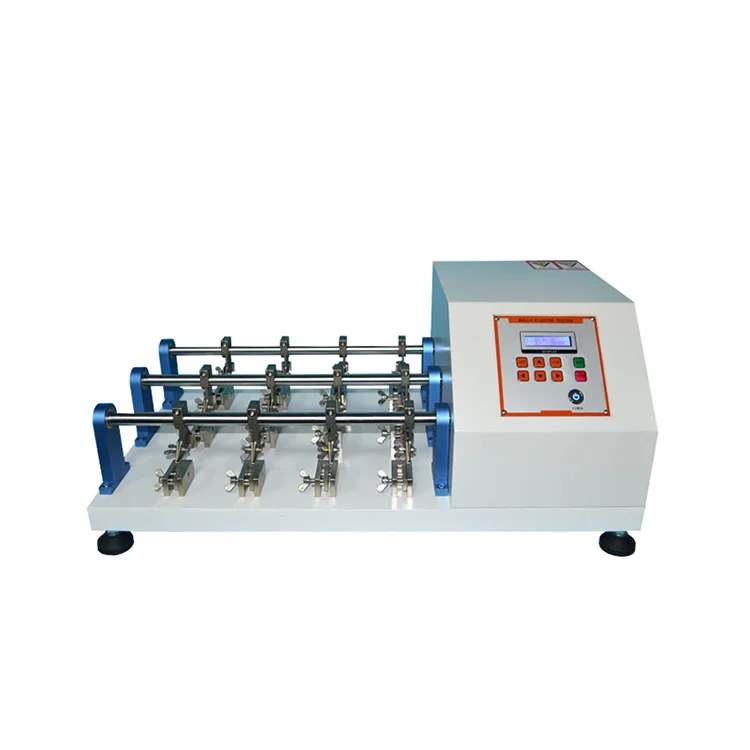

Bally Leather Flexing Tester
Model
NG-327
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
The leather flexing test machine used to test the folding nature for various leathers and fabrics. Materials need
be nipped both inside and outside, twist and turn over and over again until a certain number, checking the
damage of the tested materials, this machine applied to use in clothing, shoes, bags and other thin material
leather.
Application:
It Used to test leather performance in shoes, clothing, luggage handbag industry, research laboratories;
Commodity inspection, arbitration and technical supervision departments.
Application Standards:
ISO 17232 (IULTCS/IUP 38): Leather — Physical and mechanical tests — Determination of heat resistance of patent leather
ISO 20344: Personal protective equipment — Test methods for footwear
SATRA TM55: FLEXING RESISTANCE OF UPPER MATERIALS – BALLY FLEXOMETER
DIN 53351: Testing Of Artificial Leather And Similar Shut Materials – Behaviour At Permanent Folding
ISO 5402-1: specifies a method for determining the wet or dry flex resistance of leather and finishes applied to leather.
BS EN 344-1: Safety, protective and occupational footwear for professional use – Requirements and test methods
JIS K 6545: Testing method for flexing endurance of light leathers and their surface finishes
QB/T 2714: Leather — Physical and mechanical tests — determination of flex resistance
EN 13512: Footwear – Test Methods For Uppers And Lining – Flex Resistance
ETC…
These standards only for your reference, more details please contact us.
Specifications
Bally Leathers Flexing Testing Machine
Model
NG-327
Station

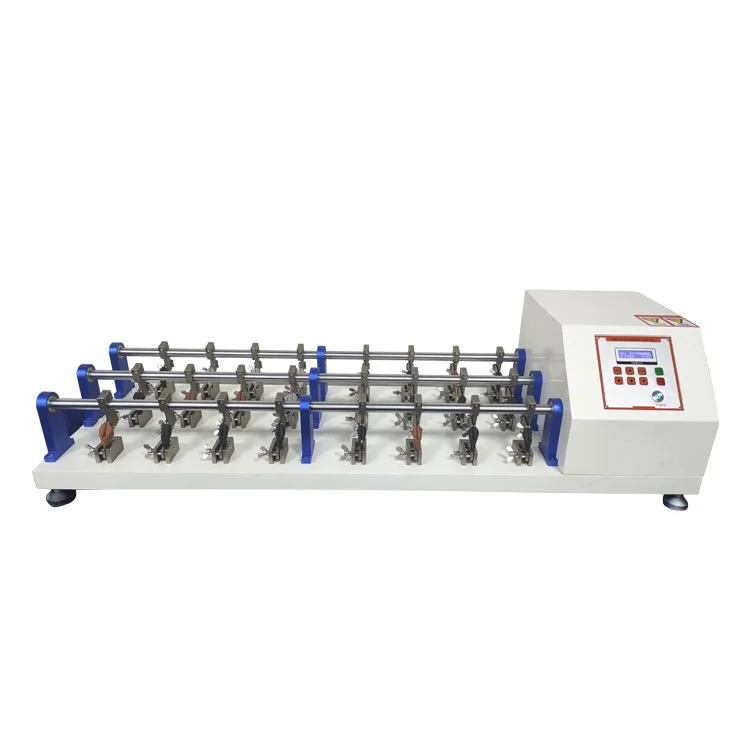

6 ,12, 24 group sets (optional)
Speed
（100±5）cpm
Specimen size
70 * 45mm
Reverse angle
22.5 degrees
Counter
LCD from 0 to 999,999
Volume
about 78 * 46 * 32cm
Machine Weight
(A) 69kg (B) 78kg
Newgoer is a professional manufacturer for various test equipment, we denote ourselves to making best quality products and service for providing you a suitable solutions!
We focus on every details of product quality and precision.
