The Electronic Balance adopts strain gauge sensor with high stable resistance in high accuracy and single chip microprocessor in high function and low power. It includes following function: Automatic self-calibration, tare, memory, count and error indication. Full functions and simple operation by intelligent design! Light touch indication, LCD display with backlight, easy to see, simple cleaning and good stable repeatability.
Basic Model:
NG-HS series (Basic Model )
NG-HG series (Basic Model )
Model
NG-HS100
NG-HS200
NG-HS300
NG-HG400
NG-HG500
NG-HG600
Weighing Range
100g
200g
300g
400g
500g
600g
Accuracy
0.001g
Pan Size
80mm
Main Features
1. High resolution, quick reaction and stable
2. There are 4 units conversion
3. Large LCD backlit display
4. Both Ac and DC, DC is dry battery power
5. With full range of tare function

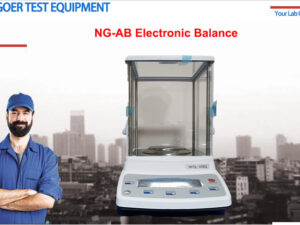

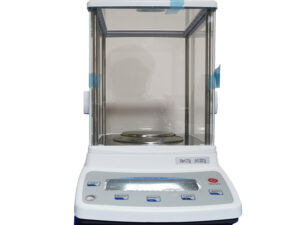

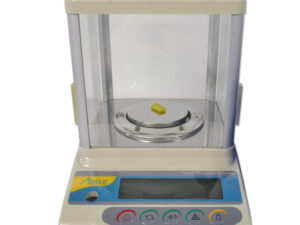

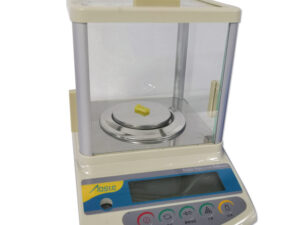

Upgrade Model: NG-AB series
Model
NG-AB200
NG-AB300
NG-AB400
NG-AB500
NG-AB600
NG-AB800
Weighing Range
210g
310g
410g
510g
610g
810g
Accuracy
0.001g
Repeatability
0.002g
Pan Size
φ110
Main Features
1. Front horizontal bubble – allows the operator to adjust the balance horizontally.
2. Multi – sectional air cover -5 pieces of glass constitute a transparent weighing chamber.
3. Small sample weighting – unique zero – set micro weighing technology can meet different use needs.
4. Dynamic temperature compensation – always modifies the effect of ambient temperature changes on the weighing.
Application functions
1. Various weighing units – milligrams, grams, kilograms, ounces, pounds, carats, etc.
2. Environmental filtering optimization – According to the use of the environmental characteristics of the balance filter Settings, can make the weighing results faster and more stable.
3. Point and trace take-off – changes in the environment may cause the display to drift. Even if there is a slight change in the environment, the balance can still be weighed from 0 g.
4. Classic application pattern – piece weight and percentage weight
5. Built-in downhanging scale hook – meets the user’s requirements for downhanging density measurement and other special weighing requirements.
6. Standard RS232 communication interface – easy to connect printers, computers and other peripherals.
