Summary:

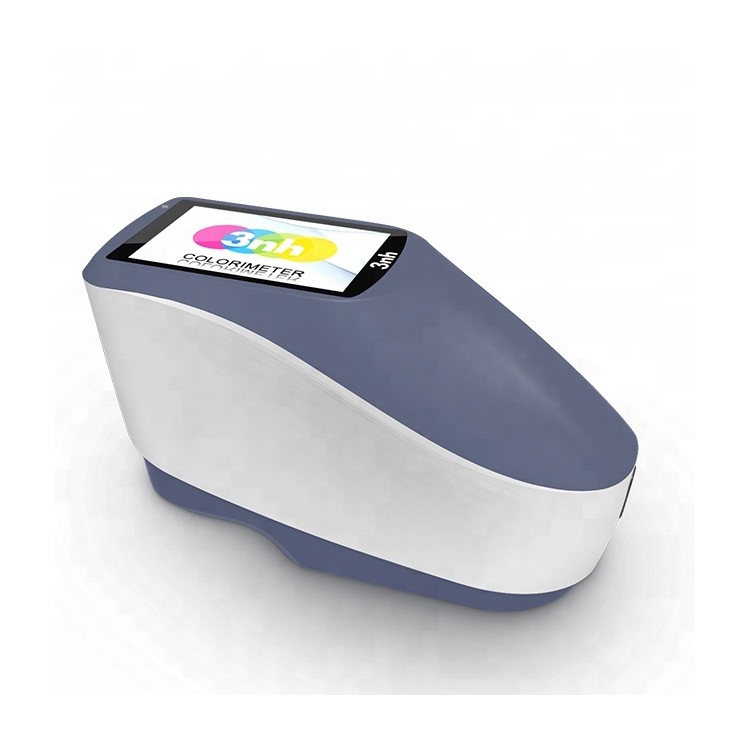

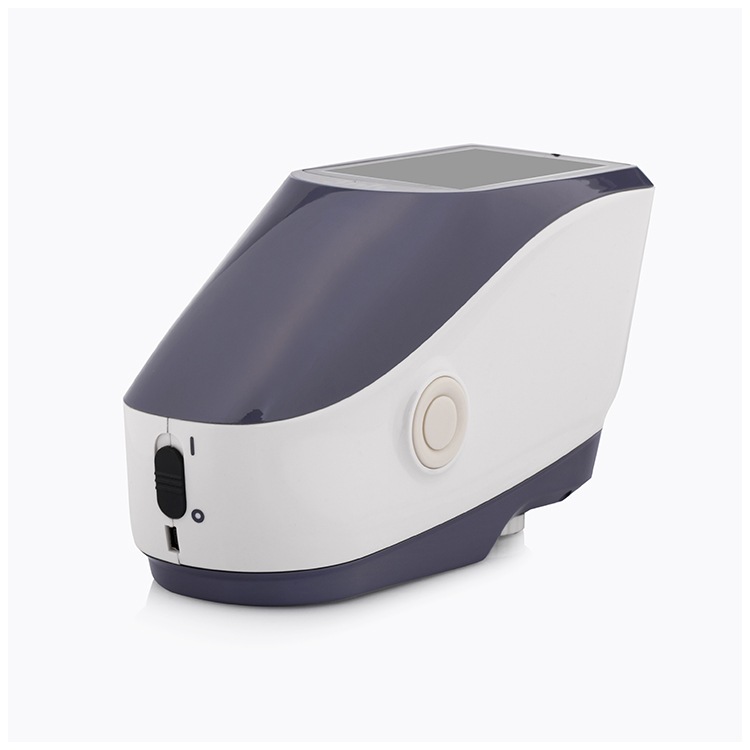

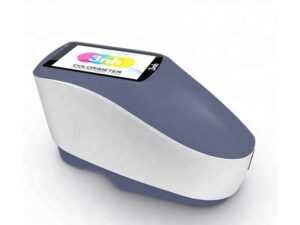

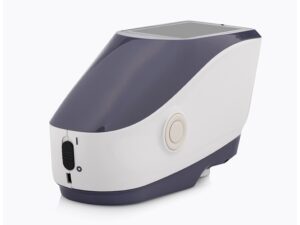

NG-YS3060 Grating spectrophotometer, it features with stable performance, precise measurement and powerful functions in the leading position of the same industry.
Comply with CIE No.15，GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7,
YS3060 grating spectrophotometer features UV, SCI/SCE, USB / Bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
Application Industry:
Grating spectrophotometer can easily achieve color transferring, and be used as a precision instrument for color matching system. It’s widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Features:
Perfect combination of beautiful appearance and the human body mechanics structural design;
B.D/8 geometrical optics, conforms with CIE No.15, GB/T 3978, GB293, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Tile.
Use long life and low power consumption combined LED light source, including UV/excluding UV;

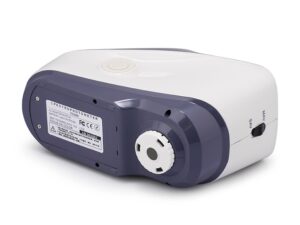

Switchable Φ8/4mm aperture, adapt to more samples; support both SCI and SCE at the same time;
Measure sample spectra, accurate Lab data, can be used in color matching and accurate color transmission;

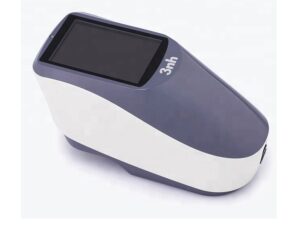

High electronic hardware configuration: 3.5-inch TFT color LCD, Capacitive Touch Screen, concave grating, 256 image Element Double Arrays CMOS Image Sensor;
G.USB/Bluetooth 2.1, dual mode, widely useful;
Super stain-resistant and stable standard white calibration plate;
Large capacity storage space, over 20,000 measurement data;
Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers’ demand for color measurement;

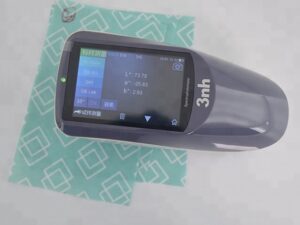

Camera Locating Function, better position;
l. PC software has a powerful function extension.
Specifications:
Model
Items
NG-YS3060
Optical Geometry
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size
48mm
Light Source
Combined LED Light, UV Light
Spectrophotometric Mode
Concave Grating
Sensor
256 Image Element Double Array CMOS Image Sensor
Wavelength Range
400-700nm
Wavelength Interval
10nm
Semiband Width
10nm
Measured Reflectance Range
0-200%
Measuring Aperture
Dual Aperture: 10mm/8mm & 5mm/4mm
Specular Component
SCI&SCE
Color Space
CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Other Colorimetric Index
WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),
TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle
2°/10°
Illuminant
D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Displayed Data
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time
2.6s
Repeatability
MAV/SCI: ΔE*≤0.03
Inter-instrument Error
MAV/SCI: ΔE*≤0.15
Measurement Mode
Single Measurement, Average Measurement
Locating Method
Camera View Finder Locating
Battery
Li-ion battery. 5000 measurements within 8 hours
Dimension
L*W*H=184*77*105mm
Weight
600g
Illuminant Life Span
5 years, more than 3 million times measurements
Display
3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port
USB, Bluetooth 4.0
Data Storage
Standard 2000 Pcs, Sample 20000 Pcs
Language
English, Chinese
Operating Environment
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment
-20~50℃, 0~85%RH (no condensing)
Standard Accessory
Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory
Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.
