Summary:

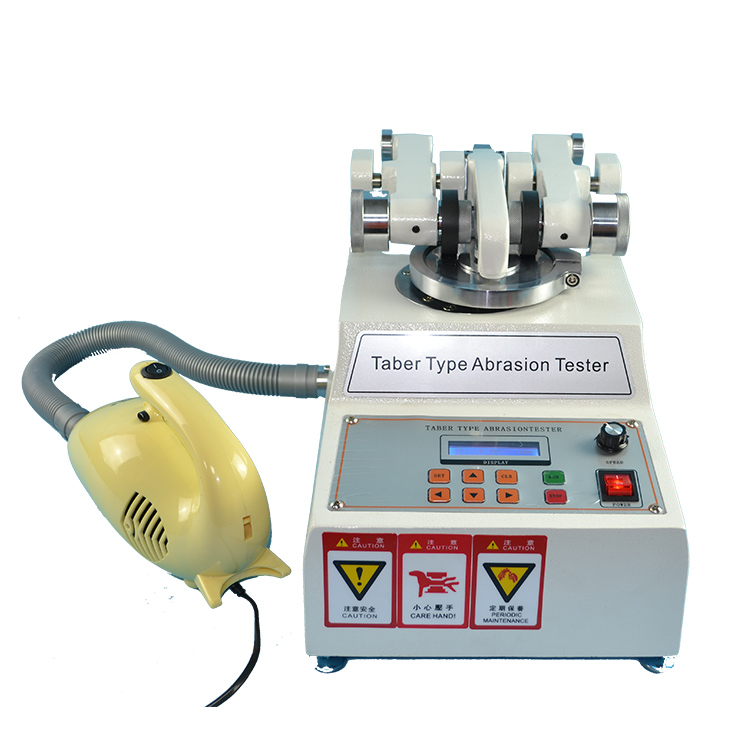

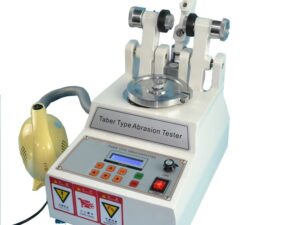

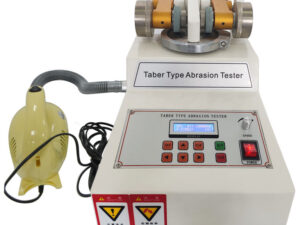

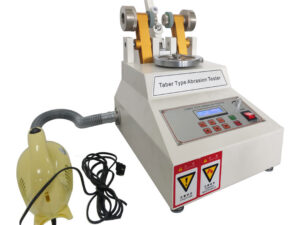

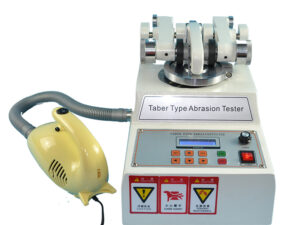

Taber Abrasion Tester ASTM D7255 Leather Rotary Abraser for Wear Test applied to do the test of wear-resistant in skin, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber.
The method is using the standard knife cutting the specimen, and then using the regulated model
of grinding wheel with loading weight to be abrased, Specimen to be removed after rotation to
reach a certain number, observe the condition of the specimen or compare the weight with the
previous materials, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
Corresponding standard:
DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044,D3884,ISO-5470
Din53754 Taber Abraser / Taber Abrasion Tester for Sale
Applicable industry
Taber Abraser Tester used in testing the performance of leather products, such as suitcases, carpets,cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets,high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin, furniture, and scientific research laboratories; commodity inspection, arbitration, and technical supervision department.
Testing reference:
Paint
Brick
Plywood
Plastic
CS10
CS17
CS17
S32
S33
CS17
H18H22
Machine Specifications:
Abrasion Whee;
Diameter 2 inches, Width 1/2 inches
Load
250g, 500g, 750g (1000g for optional)
Counter
6 digit electronic display, automatic shut down
Testing disk speed
1-82RPM, adjustable
(default set value 60RPM)
Accessories
● Vacuum cleaner 1
● Paster 3 pieces
● Abrasive paper 3 pieces
● 250g, 500g, 750g weight each for 2
● Wrench 1
● Taber Abrasive wheel
Power
AC220V / 50HZ
Computational formular
Abrasion index computational formula = Abrasion loss weight ×100 Test turnover number
