Summary:

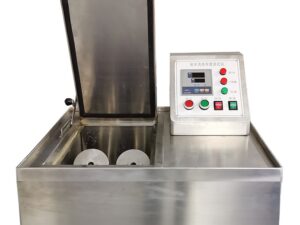

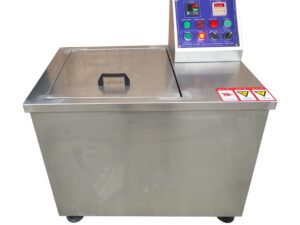

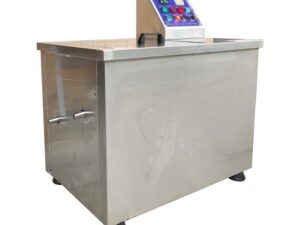

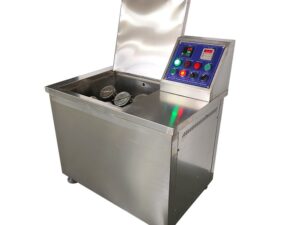

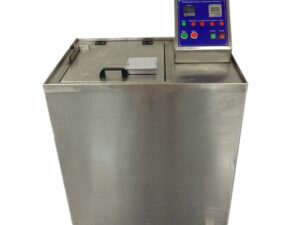

Rotawash color fastness tester is used to determine color fastness to washing or dry cleaning of fabrics
consisting of cotton, wool, silk, ramie, chemical fiber, etc. And to examine the dye washing color fastness capability for dyeing industries, textiles inspection departments and research departments, etc .
Standard:
M&S C4, C4A, 5, 37, C49, P3B
ISO 105
IWST7, 115,177,193,199,240,241
AATCC 2,3,28,61,62,86,132
BS 1006
JIS L0884
GB/T3921
GB/T5711
Features:
* Double working chamber, the temperature, working time, rotation state and drainage of both chambers
are controlled independent;
* Chamber temperature and heating time are controlled by MCU with PID function, more excellent
stability and avoid over-heating;
* Equipped with SIEMENSTM solid-state relay to control heater, no mechanical touch point, keep
constant temperature, low noise, and more endurable;
* Digital timer with audible warning after cycle time is over;
* Fitted with over temperature protection device to shut down the unit in case of overheating;
* Chamber temperature and cycle time pre-settable and duly displayed on the LED panel;
* Stainless steel construction of water bath chamber, test chamber and washing pots;
* Equipped with water level detection and protection system for two working chamber to avoid damage
for low water level.
Specifications:
Wash pot volume: 550mL (For ISO) / 1200mL (For AATCC) (optional)
Number of wash pot: 12 (For ISO) / 6 (For AATCC) (can free combination)
Rotating speed: 40±2r/min
Max test time: 0~999min±5s
Range of temperature: room temperature~99.9°C
Temperature accuracy: ±1°C
Power supply: AC220V 50Hz
Dimension: 1120×600×1130mm
