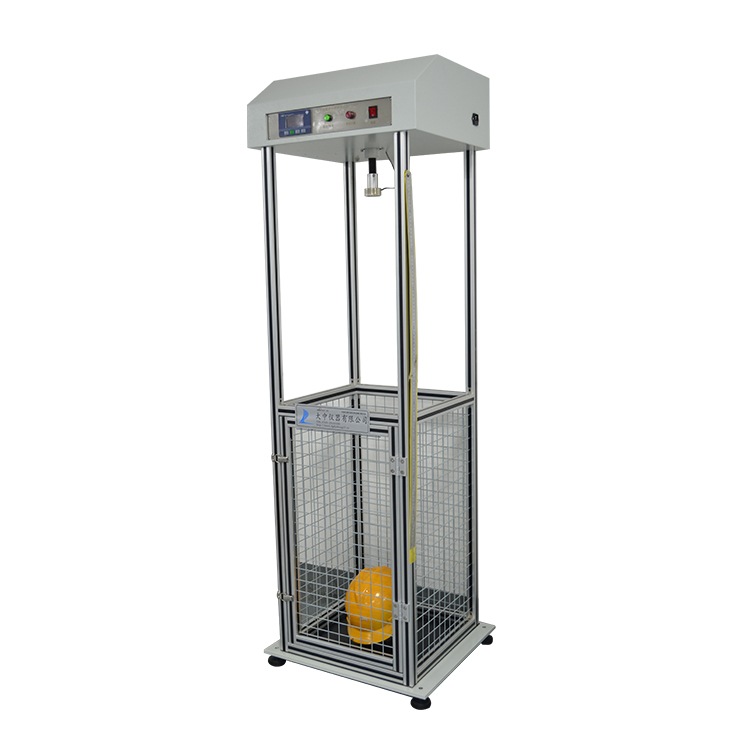

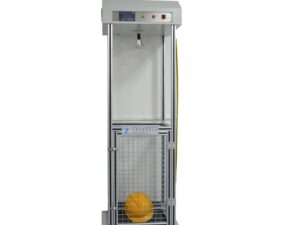

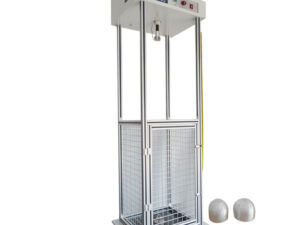

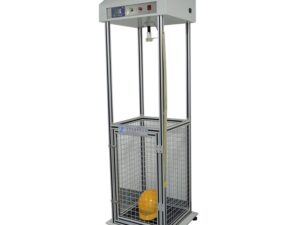

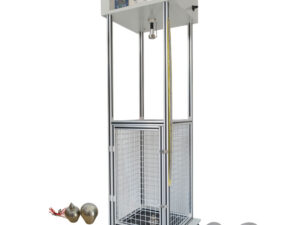

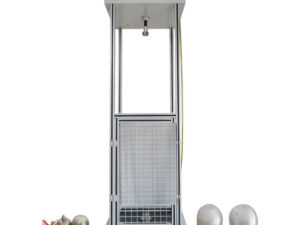

Safety Helmet Drop Weight Impact Tester, Helmet Impact Resistance Puncture Tester
Model
NG-800
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
This machine specially test fire helmets impact resistance performance, can also do the anti-penetration properties test. Determination of fire helmets impact resistance performance, put the special head model with a good helmet (aluminium magnesium alloy materials) installed in the high sensitivity of the sensor, then use the 5kg hammer from 1 m height of impact, and the high sensitivity strength induction device detect the impact instantaneous force value to judge helmet shock absorption performance is good or bad.
Principle:
Determination of the helmet antipenetration properties test, first fix the head model on the base, make head model,Steel cone and electrical contact display device to form a closed circuit, then put 3kg steel cone from 1 m height fall to puncture helmet, after puncture observation electrical contact display device. Judge helmet anti-penetration properties is good or bad.
Specifications:
Item
Safety Helmet Impact Puncture Tester
Drop Hammer
Impact Hammber, Puncture Hammber
Impact Hammber Weight
5 + 0.01kg
Radius of Impact Hammer
R=48mm
Material of Impact Hammer
45 # steel
Force Sensor
20KN
Test Range
2%-100%FS
Min. Reading
1N
Puncture Hammer Weight
3 + 0.05kg
Puncture Hammer Cone Angle
60 °
Radius of Puncture Hammer Cone
R=0.5mm
Length of Puncture Hammer
40mm
Max. Diameter of Puncture Hammer
28mm
Drop Height
1000mm±5mm
Power
220V, 50Hz
Standard:
GB / T 2812-2006: Test method for safety helmet
ISO 3873: Industrial safety helmets
GB2811-2007: Safety Helmet
Other international Safety Helmet Test Method
Features:
1, Drop hammer and hammer to replace simple operation.
2,With automatic guidance system to ensure accurate impact hammer and hammer down exactly hit the helmet.
3, The puncture hammer adopt a closed circuit, will alarm after puncture
4, wallop professional precision sensors, range is 2t, accuracy is ± 0.02%.
5, LED digital display, auto-save maximum force.
6, The height of impact hammer and puncture hammber can be adjustable.
