Appliance:

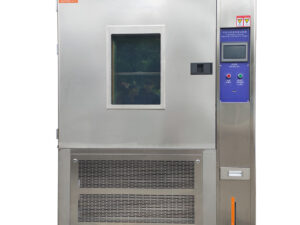

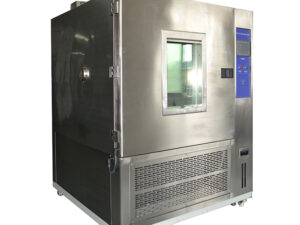

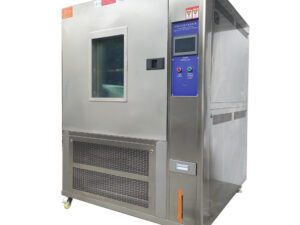

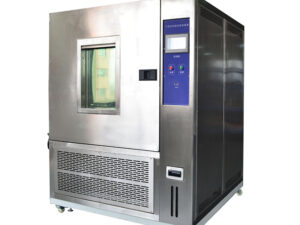

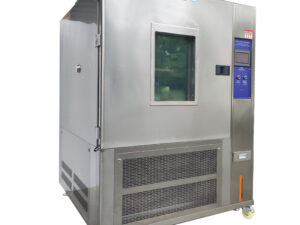

Temperature Humidity Climatic Test Chamber Price is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Temperature Humidity Climatic Test Chamber Price applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Standards:
The performance index meets the requirements of GB5170, 2, 3, 5, 6-95 verification methods for basic parameters of
environmental test equipment for electrical and electronic products low temperature, high temperature, constant humidity and alternating humidity heat test equipment
Basic environmental test procedures for electrical and electronic products test a: low temperature test method GB 2423.1-89 (IEC68-2-1)
Basic environmental test procedures for electrical and electronic products test B: high temperature test method GB 2423.2-89 (IEC68-2-2)
Basic environmental test procedures for electrical and electronic products test CA: constant damp heat test method GB/T2423.3-93 (IEC68-2-3)
Basic environmental test procedures for electrical and electronic products test Da: alternating damp heat test method GB/T2423.4-93 (IEC68-2-30)
ETC…
Refrigeration system:
Compressor: fully hermetic compressor imported from France
Refrigerant: Environmental refrigerant R404A
Condenser: fin type with heat dissipation motor
Evaporator: fin type multi section automatic load capacity adjustment
Other accessories: desiccant, refrigerant flow window, repair valve
Expansion system: refrigeration system with capacity control
Control system:
Imported from Korea, all Chinese LCD 7 “LCD touch panel, drawing face to talk input data, temperature and humidity can be programmed at the same time, curve display, set value / display value curve. It supports the direct export of temperature and humidity record data by U disk, and can display various alarms respectively. When the fault occurs, it can display the fault on the screen to eliminate the fault and misoperation. Multi group PID control function, precise monitoring function, and display on the screen in the form of data.
Controller specification:
1. Accuracy: temperature ± 0.1 ℃ + 1digit, humidity ± 1% RH + 1digit
2. Resolution: temperature ± 0.01, humidity 0.1% R.H
3. With upper and lower limit standby and alarm functions
4. Temperature and humidity input signal selection PT 100 Ω× 2 (dry bulb and wet bulb)
5. Temperature and humidity conversion output: 4 ~ 20mA
6. Six groups of P.I.D control parameter setting, P.I.D automatic calculation, dry and wet bulb automatic correction
Specifications:
Item Name
Temperature and humidity test chamber/machine
Capacity(L)
80, 150, 225, 408, 500, 800, 1000L(optional, or custom-made)
Performance
Control Methods
Balanced temperature humidity control system (BTHC) PID intelligent adjust
Temperature and Humidity Range
-70°C~150°C; 20%-98%R.H
Accuracy
±1.0°C, ±2%RH / ±0.5°C, ±2%RH
Resolution
±0.1°C, ±0.1%RH / ±1°C, ±3%RH
Heating Rate
≤3°C/min
Cooling Rate
Average 1°C/min
Internal Material
SUS#304 stainless steel
External Material
SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray)
Insulation Material
Superfine wool + polyurethane foam
Regulator
Cooling Mode
Mechanical binary refrigeration way
Compressor
Closed compressor (French Tecumseh or German Copeland )
Refrigerant
R23/R404A
Condensing Way
Air-cooling and Water-cooling
Humidifier
Stainless steel humidifying tube
Airflow Way
Broadband-type forced air circulation
Controller
Operate Interfaces
Korea TEMI 880 LCD touch screen
Memory capacity
120 groups, each program 100 segment
Input
PT100 or T thermocouple
Communicate Interface
RS-232
Subsidiary function
Upper and lower alarm; self diagnosis ; alarm display(fault cause); time sequence protection (Automatic turn on or turn off )
Water supply
Water supply
Circulating water supply
Water tank
Built-in hand type(30Kg capacity)
Water quality
resistance >500Ω.m
Standard Configuration
One observe window(Double hollow toughened glass);one test pattern D50mm(on the left); 2 layers sample frame; one floodlight(fluorescent lamp);one water feeding tank;
Safety device
Power leakage protection; Dry heating protection; Water protection Over-temperature protection switch; Temperature deviation alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc.
Power supply
220VAC ±10%50/60Hz & 380VAC ±10%50/60Hz
