Rubber Compression Set Tester, Rubber Permanent Compression Deformation Testing Machine
Model
NG-YB
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

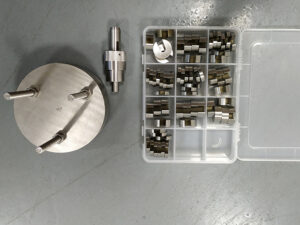

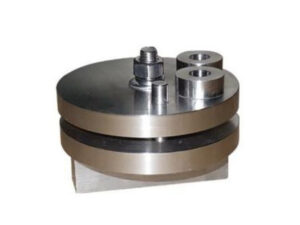

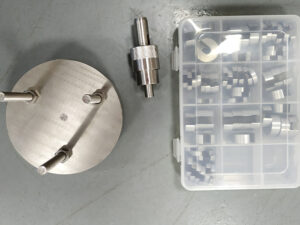

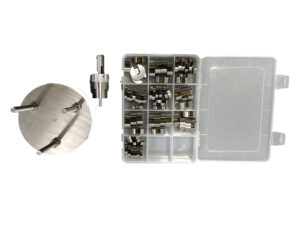

Contain by parallel steel plates, limiters and fasteners, used for vulcanized rubber, thermoplastic rubber in room temperature, high temperature and low temperature conditions, at a constant compression rate, after a certain compression time determination of the amount of deformation of rubber.
Standard:
GB7759-2015, ASTM-D395, ISO815-1:2008 etc.
Specifications
Sample
A: dia. 29mm, height: 12.5mm
B: dia. 13mm, height: 6.3mm
Limiters height
compression rate 25%
A: 9.3 ~ 9.4
B: 4.7 ~ 4.8
Compression rate 15%
A: 10.6 ~ 10.7
B: 5.3 ~ 5.4
Compression rate 10%
A: 11.25 ~~ 11.3
B: 5.65 ~~ 5.7
Dimensions
Diameter 115mm high about 110mm
Weight
10kg
