Plastic Pipe Hydrostatic Pressure Tester, ISO1167 Hydrostatic Pressure Burst Tester
Model
NG-XT10
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述

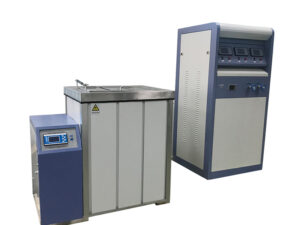

Product Overview
Hydrostatic Pressure PVC Pipe Testing Equipment is nice in appearance, smiple in structure and of high precision and stability as well as easy to operate, it is the it is the necessary testing machine for quality inspection department of kinds of research institutes and pipes manufacturers.
Accordant Standards:
ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599 ISO13479
Performance Introduction:
1). Magnetic valve, each road has two branches. Thanks to advanced pressure method synchronize with Germany and Denmark, a pressure rise and supplement electric valve can respectively change operating frequency and time according to program and test, so that quick and accurate pressure supplement can be realized for large caliber PE sample. Thus the instrument can be widely used(r20—r630 PE pipe)and has high accuracy of pressure control(superior to±1%, maximum can reach ±0.001Mpa)
2). A set of water pressure station imported from Denmark is superior to homemade water pressure test pump and gas drive water pump(use gas to drive water) equipped by some manufactures which has large flow and good performance,as well as longer service life and low noise, and air pump is not required.
3). plastic pipe hydrostatic test equipment plastic pipe hydrostatic test equipment Each road has a high precision sensor from the department of space guarantees 0.001Mpa resolution and highest press accuracy can reach set value±0.001Mpa.
4). Multiline digital display LCD screen,multi storage communication(include U disk storage) , more extensive protocol, so that it can communicate with PC, PLC, touch screen and many other display terminal.
. One set of brand computer
Technical Parameter
Pressure range of the main engine
0~10MPa (adjust at random)

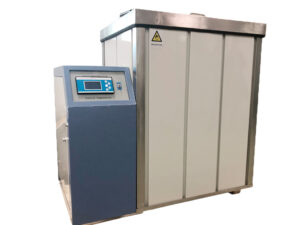

Control range of water box
RT~95℃
Pressure resolution of main engine
0.001MPa
Temperature control accuracy of water box
±0.5℃
Constant pressure range of main engine
<+2%,-1% of the set value
Temperature uniformity of the water box
±0.5℃
Constant pressure accuracy of main engine
no lower than ±1%
Temperature resolution of water box
0.1℃
Timing range
0~9999.59 hours
Timing accuracy
≤0.1%
Insulating layer thickness of the water box
thicker than 83mm,thinner than 95 mm
Power supply of pressure control system
AC220V,1.5kw
Power supply of temperature control system
AC380V,18kw
Test stations
50 roads at most for single machine
