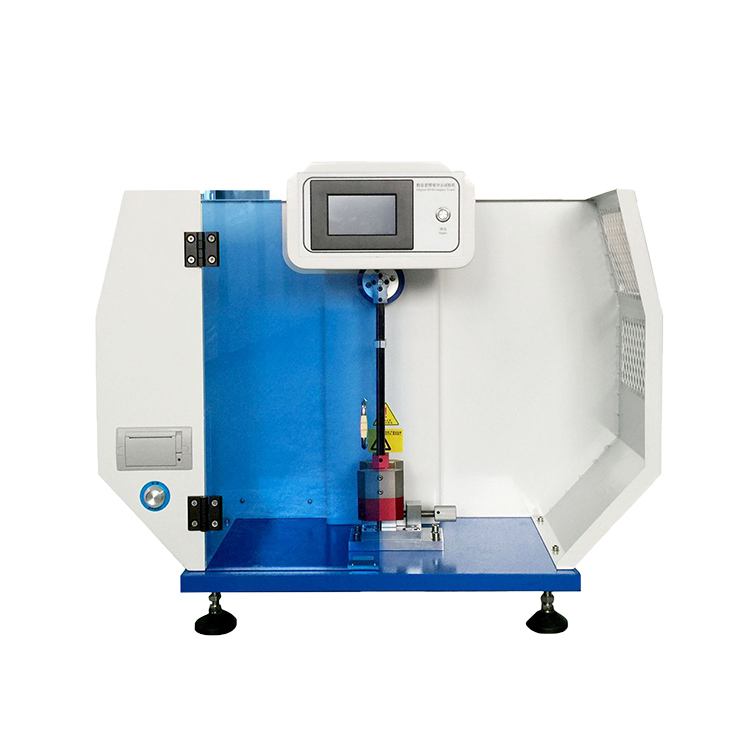

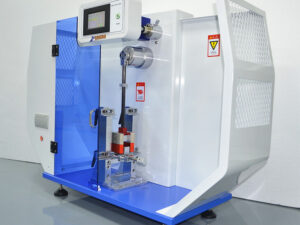

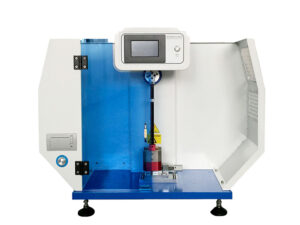

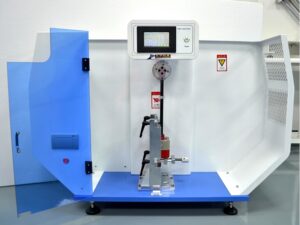

Plastic Pendulum Impact Tester, IZOD & CHARPY Impact Test Equipment
Model
NG-XJ
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Digital IZOD & CHARPY Pendulum Impact Tester is used to test the impact toughness of the non-metallic materials such as rigid plastic, reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, plastic appliance and insulation materials. It is widely used in the scientific research institutes, universities and chemical industry as the common quality test equipment.
It is compatible with Izod test and Charpy test, the IZOD and CHARPY test method can be switchable which easy to use, easy to operate and high test accuracy.
Standard:
ISO179—2000: Determination of Plastics – Hard Materials Charpy Impact Strength
ISO180—2000: Determination of Plastics – Hard Materials Izod Impact Strength )
GB/T1043—2008: Rigid Plastic Charpy Impact Test Method
JB/T8762—1998: Plastics Charpy Impact Testing Machine
GB/T 18743-2002: Charpy Impact Test Method for Fluid Transport Via Thermoplastic Pipe (Suitable for pipe pieces)
ASTM D256-2010: Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
Features:
High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;
China’s first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.
Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;
Aerodynamic impact hammer and imported ball bearings greatly reduce mechanical friction losses
E.Automatic calculation of the final result, 12 sets of the test data can be stored and averaged;
Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.
Built-in mini printer to print the test data
Specifications:
Item
Charpy Impact
Izod Impact
Pendulum energy
NG-XJ5: 1J, 2J, 4J, 5J;
NG-XJ15: 7.5J, 15J;
NG-XJ50: 25J, 50J
(Optional)
1J, 2.75J, 5.5J
Display mode
Color touch screen
Pendulum angle
150°
Impact speed
2.9m/s (3.8m/s)
3.5m/s
Impact center distance
230mm, 395mm
Blade angle
30°
70°
Blade filleted radius
R=2mm±0.5m
0.8mm
Seat filleted radius
R=1m
Blade front angle
5°
Blade back angle
10°
Sample type& dimension
(L x W x T) mm3
(ISO180-2000 or GB/T 1843-2008)
Type-1:80×10×4
Type-2: 63.5×12.7×6.4
Type-3: 63.5×12.7×3.2
Angle accuracy
Original OMRON encoder, 0.01°
Power
220V±10% 50HZ
