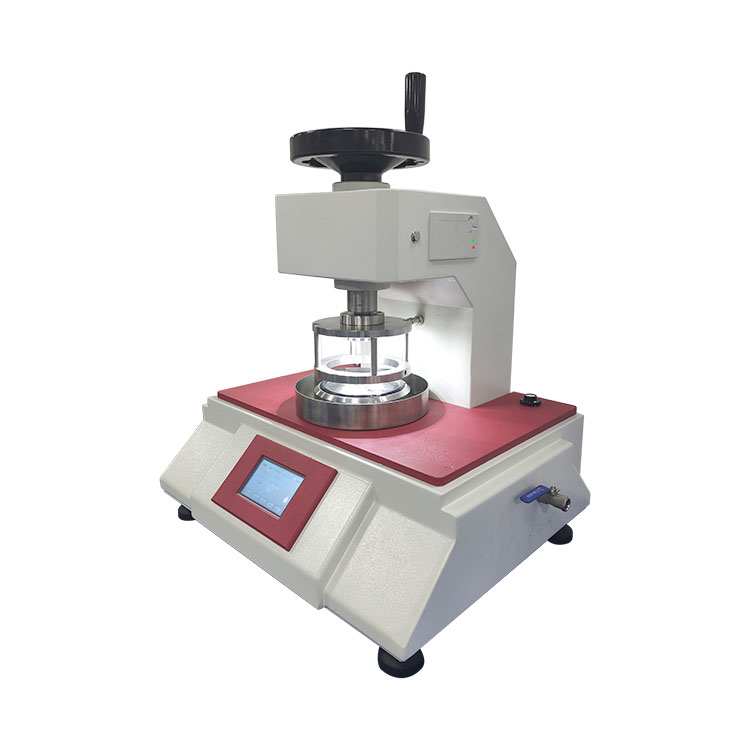

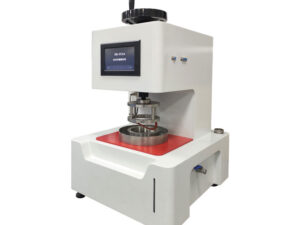

Fabric Hydrostatic Head Pressure Tester, Textile Water Permeability Tester
Model
NG-311
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Hydrostatic Pressure Tester, used for determining the resistance of fabrics (canvas, coated fabrics,
cover cloth, rainproof clothing fabrics and geotextile materials) and films to water penetration under
pressure while firmly clamped in the test rig of standard area, by means of dynamic test method and
static test method. The bank is linked to a test head to which the specimen is clamped quickly and
stably by means of a automatic clamp.
After starting the hydrostatic pressure test, the test pressure is automatically controlled; hydrostatic head test result and process is digitally displayed on LCD pane. The test specimen is observed visually for evidence of penetration by water. The test area is well illuminated and an unobstructed observation of the sample is from all sides greatly facilitates the visual drop detection.
Standards:
GB/T4744: Textiles – Testing and evaluation for water resistance Hydrostatic pressure method
FZT 01004: Coated fabrics – Determination of resistance to Penetration
AATCC 127: Water resistance – Hydrostatic pressure test
DIN 53886: Determination of resistance of textile fabrics to water penetration; hydrostatic pressure test
JIS L1092: Testing method for water resistance of textiles
ETC…
Features:
Gas pressurized: pressurizing speed uniformly faster response, without limitation stroke
Test results are automatically grade evaluation
Pneumatic clamp sample, convenient, fast, stable and consistent
Free angle of enhanced lighting system, users can easily observe the condition of the sample test
There is constant pressure warning function, reduce experimental observation time
Using industrial-grade processor precise process control
High-precision 16-bit AD converter chip collecting real pressure
8.7-inch color touch-screen display control, the English menu, the system is free to set the time
Built-three kinds of testing methods, the greatest extent to meet the different requirements of the
standard test
A variety of pressure units (Pa, Kpa, mmH20, mmHg) may be free to switch, and provides the unit
conversion table for the query, which can meet different national standards.
Specifications:
Model
NG-311-5
NG-311-20
Measurement range
100Pa~50KPa
500Pa~200KPa
Rate of water pressure rise
1KPa～20KPa/min adjustable
1KPa～30KPa/min adjustable
Display accurate
≤10Pa
Accuracy
≤±0.2%FS
Working mode
4
Test Head Area
100cm2
Display
Touch Screen Controller
Weight
60kg
Power
AC220V, 50Hz
