Paper Bursting Strength Testing Machine, Mullen Bursting Strength Tester for Cardboard
Model
NG-601
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Paper Bursting Strength Tester is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather.
The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
Standards:
JIS-L1004,L1018,L1031,K6328,P8131,P8112,ASTM-D2210,TAPPI T403,
ISO2759-2001, GB/T1539
Features:
Large touch screen controller

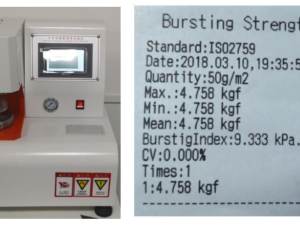

Equipped with printer. Print the test result immediately.

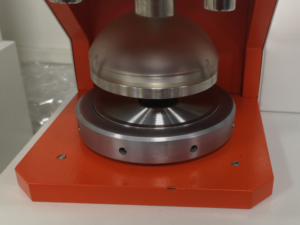

Clamping ring material is stainless steel. Durable, fine mechanical property, green product and corrosion resistance are much better than other material.
The structure is specially designed and high precision of test results.
The equipment is easy and quick operations.
Specifications:
Bursting strength range
250~5600kPa
Resolution
1 kPa
Accuracy
±0.5%FS
Pressure speed
170±10ml/min
Specimen clumping force
more than 690kPa
Clamping ring diameter
31.5mm
Power
AC220 V±10%,50Hz
Dimension
445×425×555mm
