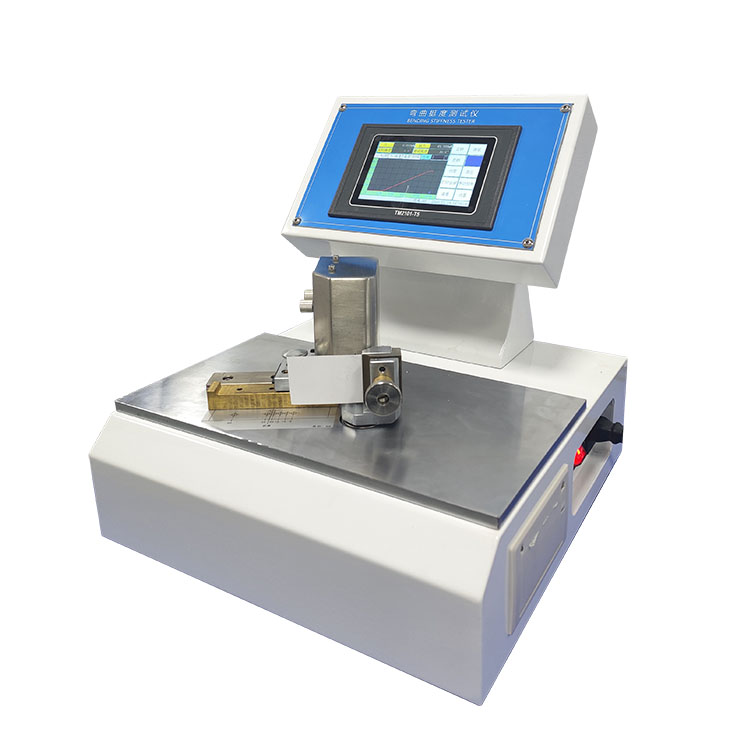

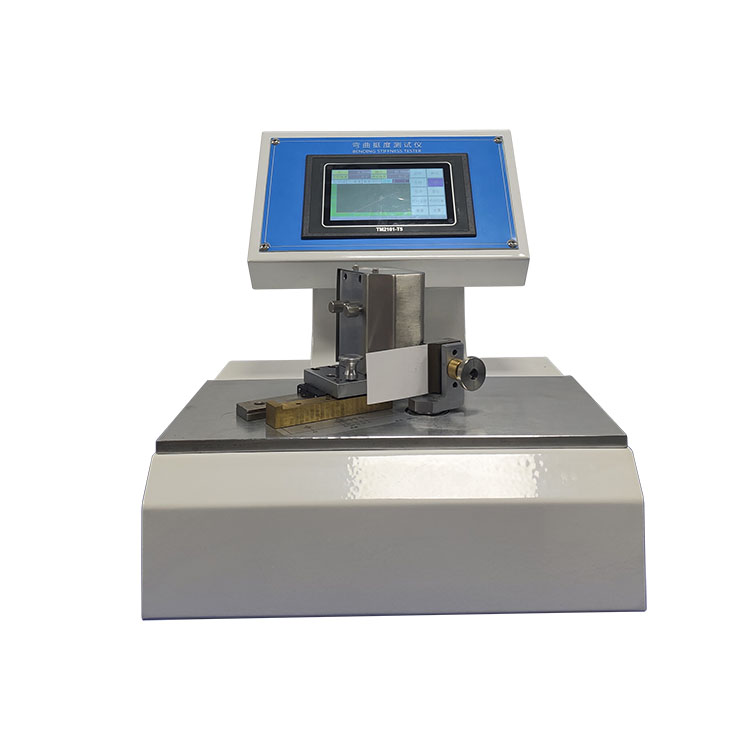

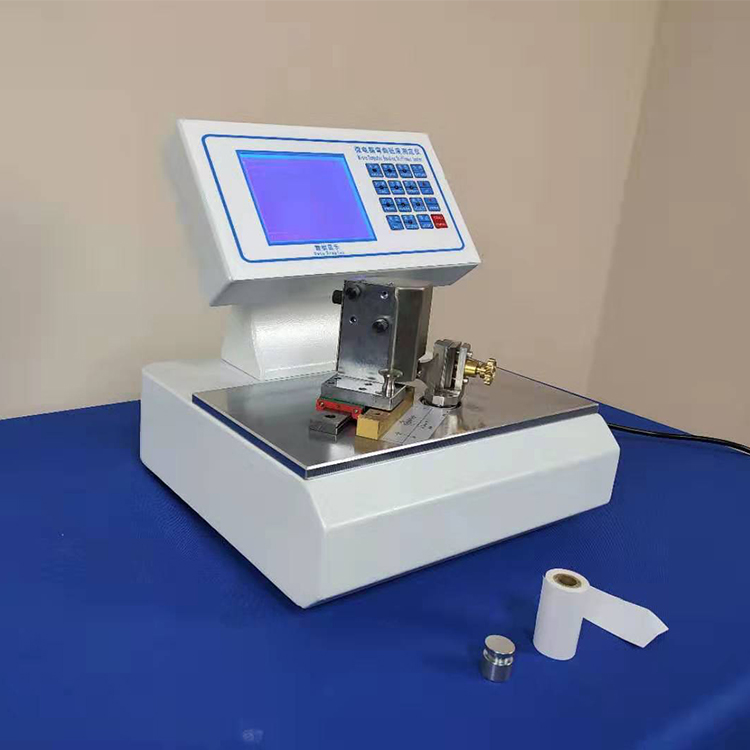

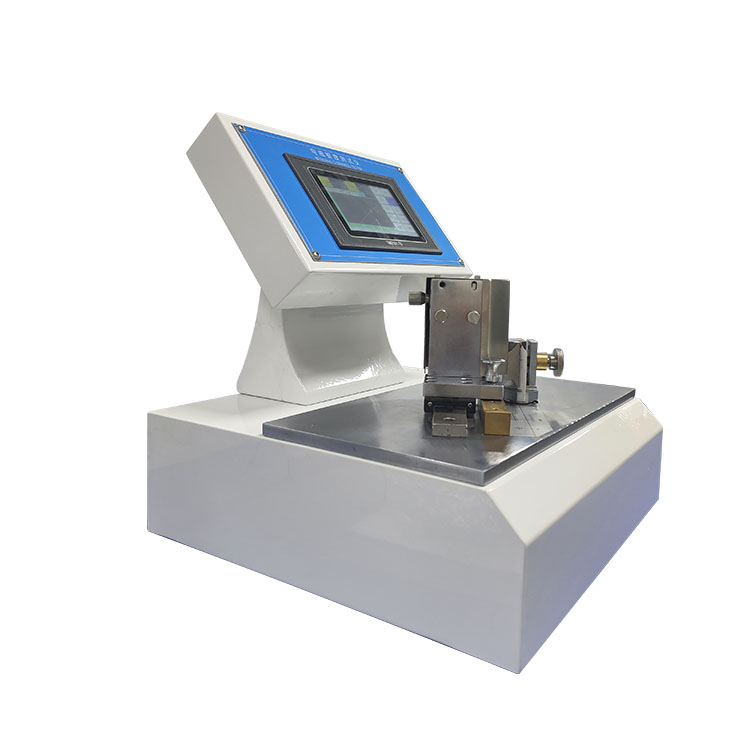

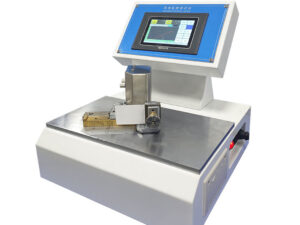

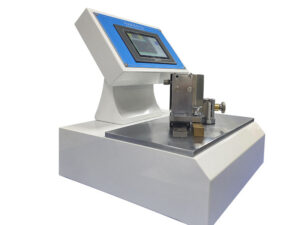

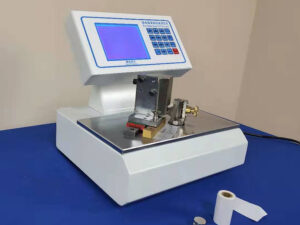

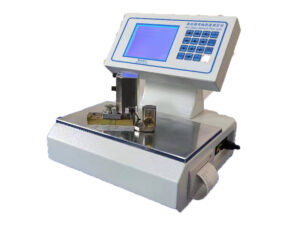

Paper and Cardboard Bending Stiffness Resistance Testing Machine
Model
NG-610
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Paper Bending Stiffness Tester is one muti-function stiffness tester.You can set test angle range. It adopted touch screen with a real-time display function of stiffness and time curve, to
use touch screen has the advantages of simple operation, convenient. Our Bending Stillness
Tester was originally developed to produce a more concise, consistent measurement for the
paper board industry. As well as used in a variety of industries including personal products,paper, flexible films, packaging and non-wovens.
Features:
Adopt high precision load sensor, the error can be controlled within 1%.
● LCD screen operation system, Aluminum control panel
● Check or delete the testing records randomly
● Thermal printer, fast and clear printing
● Calculate, count and print the testing result automatically
● The angle can be set between (1 ~ 90) °.
Test time is within a predetermined range (3s ~ 35s) arbitrarily set.
Standards:
GB/T 23144 “General Principles for the Determination of Static Bending Stiffness of Paper and Paperboard”;
GB/T 22364 “Determination of bending stiffness of paper and board”;
ISO 5628 “Paper and board – Determination of static bending stiffness – General principles”;
ISO 2493 “Paper and board – Determination of bending stiffness”.
Specifications:
Measurement range
15~1000 mN
Measurement thickness
0~2mm
Resolution
0.1mN
Bending length
(50/25/20/15/10/5) ± 0.1mm
Bending angle
(± 7.5 ° or ± 15 degree) ± 0.3 degree (1 to 90 degree)
Test speed
200 ° ± 20 ° / min
Print output
Modular integrated thermal printer
Data Display
5.7in LCD with graph display
Weight
15 Kg
Optional Accessories:
It need Cardboard Stiffness Sampler for 15° stiffness and 90° Crease & Stiffness testing.
Sampling size：70×38±0.1 mm mm（stiffness sample）
Sampling size：38×36 mm（crease stiffness sample）
Sampling thickness：＜1mm
