CMT CCT Concora Medium Fluter, Fluting and Test Liner Corrugated Tester
Model
NG-612
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

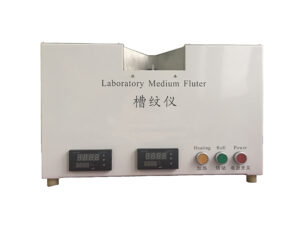

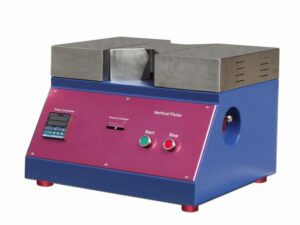

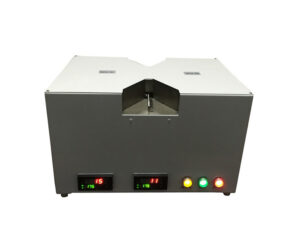

Laboratory Medium Fluter is determinate of flat crush strength of corrugated paper when pressed standard waveform (i.e., from the flute corrugated base paper), comply with standard: ISO7263-1985: corrugating medium – Determination of flat crush resistance after laboratory
fluting. Corrugated core paper after the match with computer compression tester can be used to determine the corrugated core of the Concora Medium Testing (CMT) and Concora Crush Testing (CCT).
Main features:
Instrument using single-chip microprocessor control technology, Precision temperature
controller accurate temperature adjustment.
Automatic temperature compensation mode with PID control, fast response, high steady
Precision.
3. Digital display actual temperature and set temperature.
4. With over-temperature protection device.
5. Set parameters memory automatically after power failure.
6. With parameter self-tuning function, Precision gear transmission, Standard Buttons sensitive durable.

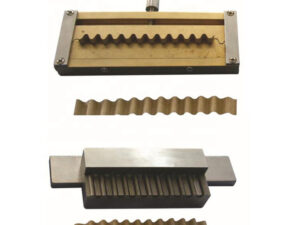

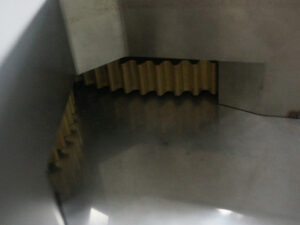

7. Flute corrugated paper from the automatic mode.
Standard:
CMT corrugating medium test :
ISO 7263, DIN 53134, SCAN P27, TAPPI T809, APPITA / AS 1301.434s
CCT corrugated crush test or concora crush test :
TAPPI T 843, SCAN P42, UNE ISO 16945
Specifications:
Fluter Types
A
Fluter Upper Radius
1.50+/-0.1mm
Fluter Lower Radius
2.00+/-0.1mm
Fluter Depth
4.75+/-0.05mm
Work Speed
4.5r/min
Temperature Resolution
1°C
Temperature Accuracy
0.5 grade ± 1 word
Adjustable temperature range
Room temperature~200 °C
Working pressure adjustable range
（49～108）N
Standard working temperature
175°C
Spring Tension
100N
Dimensions
530×400×475mm
Weighs
55kg
Power
AC220V，50Hz
