Summary:

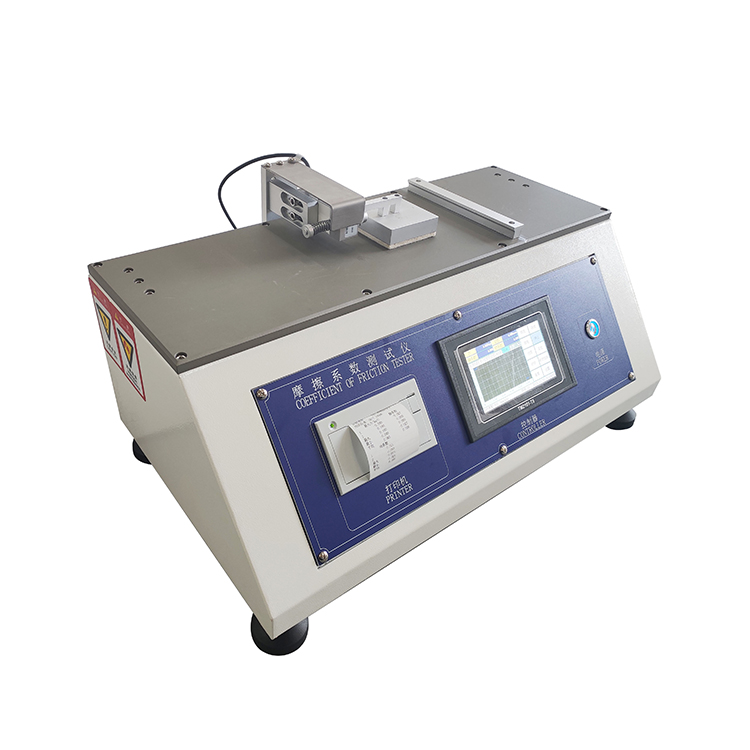

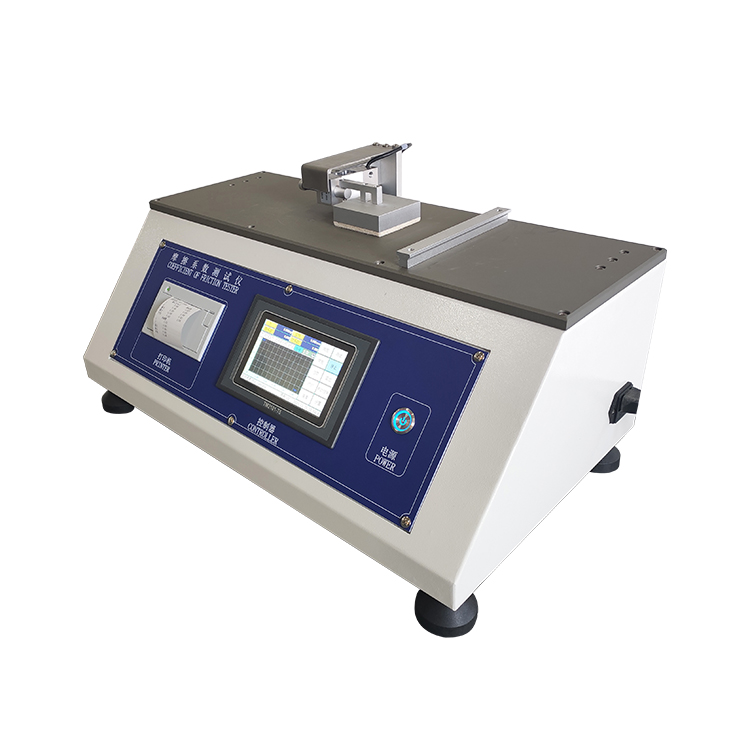

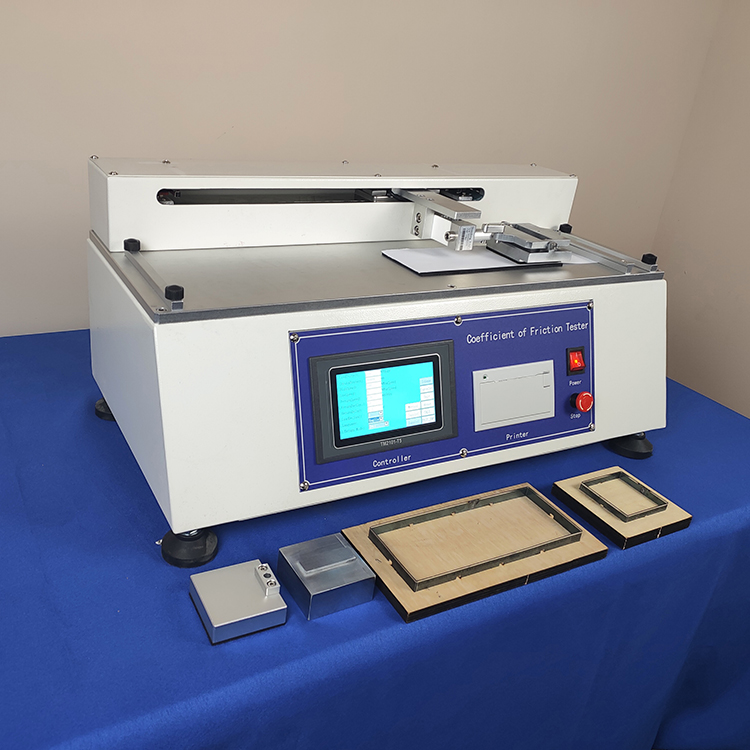

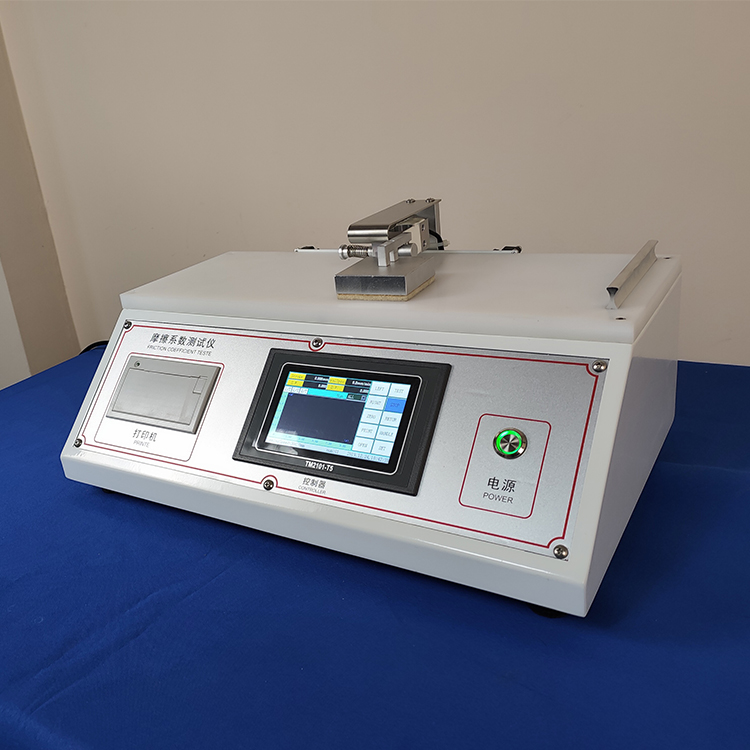

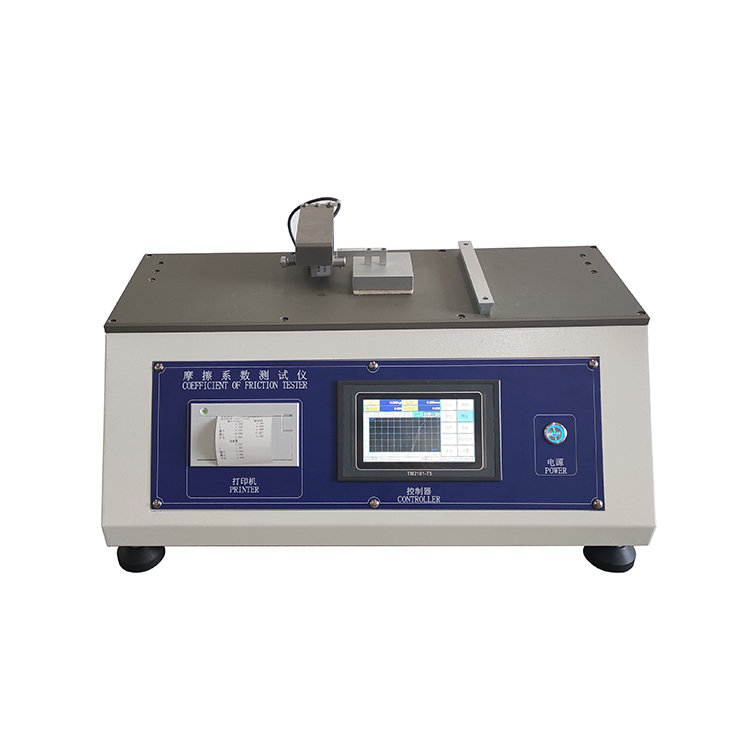

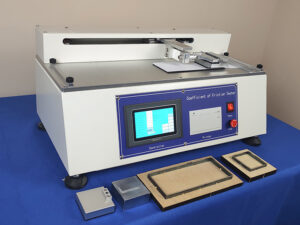

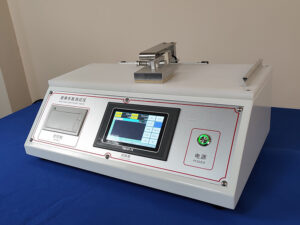

Coefficient of Friction Tester is mainly applied to testing the static and dynamic coefficient of friction of plastic film and sheet. It uses micro-computer to control and adopts advanced elements. It has powerful test functions, such as test parameter setting, adjusting, data display, memory and printing and so on.
Features:
1, Adopt the advanced design technique labeled by piece wise linear with real-time display and real-time analysis.
2, Calibration methods: intelligent calibration, reducing the error.
3, Display: LCD showing working status and test results.
4, Adopt one chip microcomputer system with high speed, high precision, and high integration to intelligently control each functional module.
5, The core parts and the components are provided with imported or homemade superior products to guarantee precise, stable and long-term use.
6, Propose the communication function of the RS232 computer, and supporting control software to account, analyze and deal with the test results.
7, The specialized appearance design can easily mix with the office and test environment.
Applicable industry:
It is applicable in static and kinetic coefficient of friction tests of plastic films, sheets, rubber, paper, PP woven bags, fabric style, metal-plastic composite strips/belts for communication cable, conveyor belts, wood, coatings, brake pads, windshield wipers, shoe materials and tyres, etc. With the material smoothness testing, users can control and adjust material quality technical indexes to meet application demands. Besides, this tester is applicable for the smoothness measurement of cosmetics, eye drop and other daily chemistry.
Corresponding standard
GB 10006
ISO 8295
ASTM D1894 < Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting>
TAPPI T816
Etc…
This Coefficients of Friction Tester can conform to but not limit to the standard above, for more standardconformance, please contact us.
Technical parameters:
Test Range
0 ~ 5 N
Accuracy
0.5% of Reading Value
Stroke
70mm / 150mm
Mass of sled
200g
Note: sleds of other weights can be ordered
Test Speed
100 mm/min / 150mm/min
Test Environment
Temperature: 15~30°C,Relative humidity: 20%~80%
Dimensions
470 mm×300 mm×190 mm
Net Weight
30kg
NEWGOER is a professional manufacturer for various test equipment, we denote ourselves to making best quality products and service for providing you a suitable solutions!
