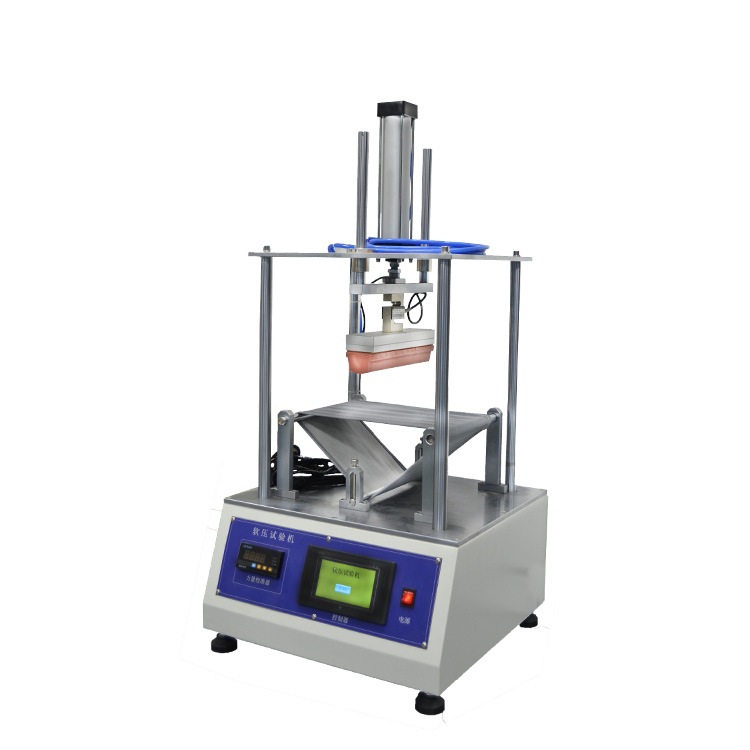

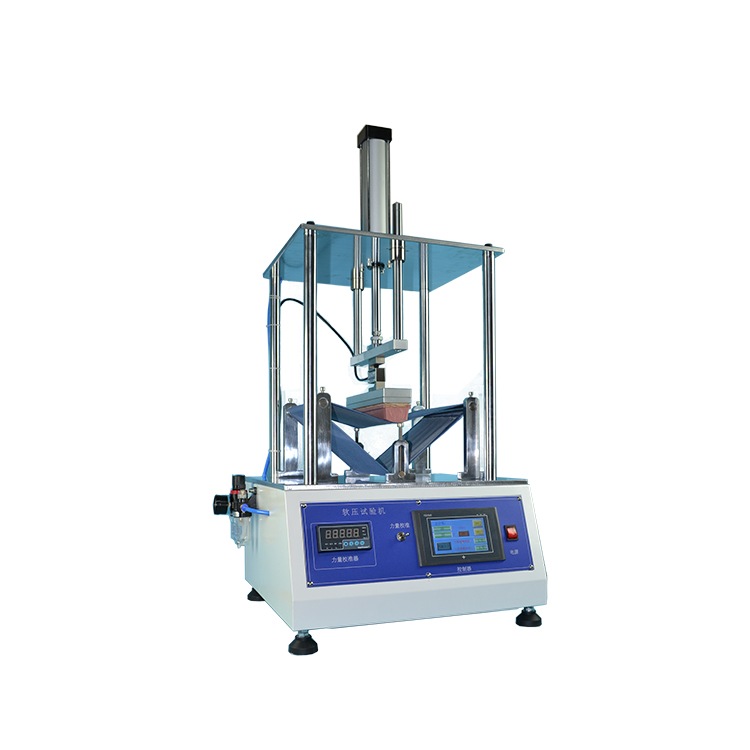

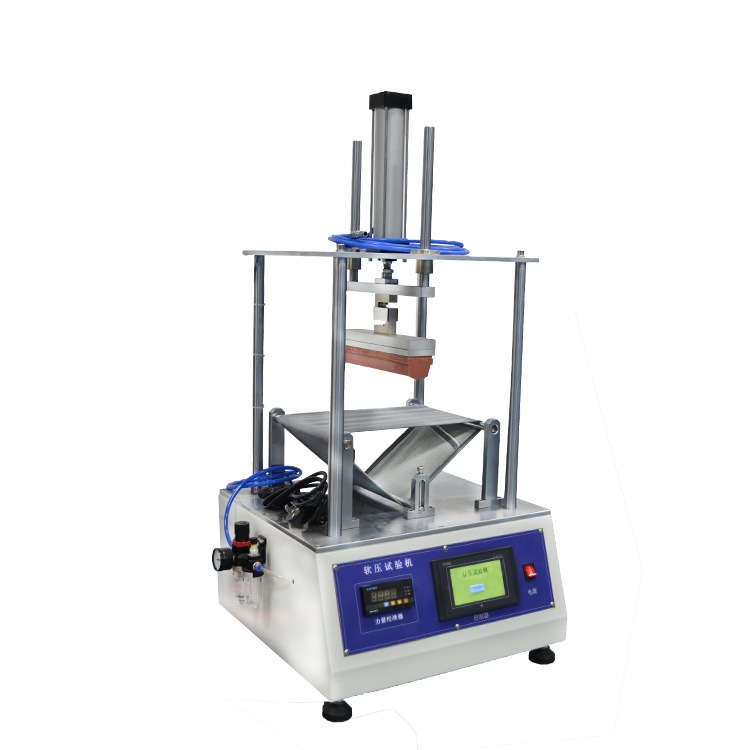

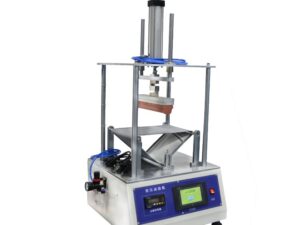

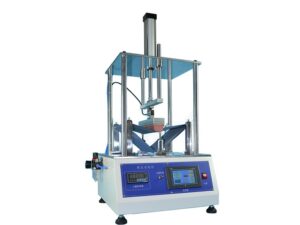

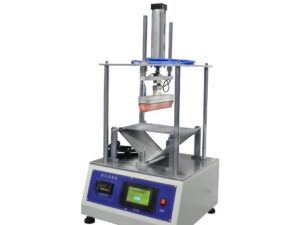

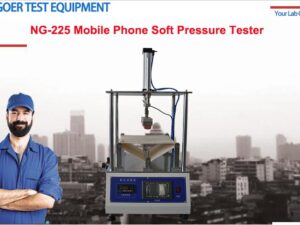

Mobile Phone Soft Pressure Tester, Electronics Compression Life Testing Machine
Model
NG-225
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Application
This machine is suitable for soft pressing test of mobile phone, remote controller, electronic dictionary, MP3, etc. It is designed to evaluate the compressive performance of structural parts such as LCD panel and PCB.

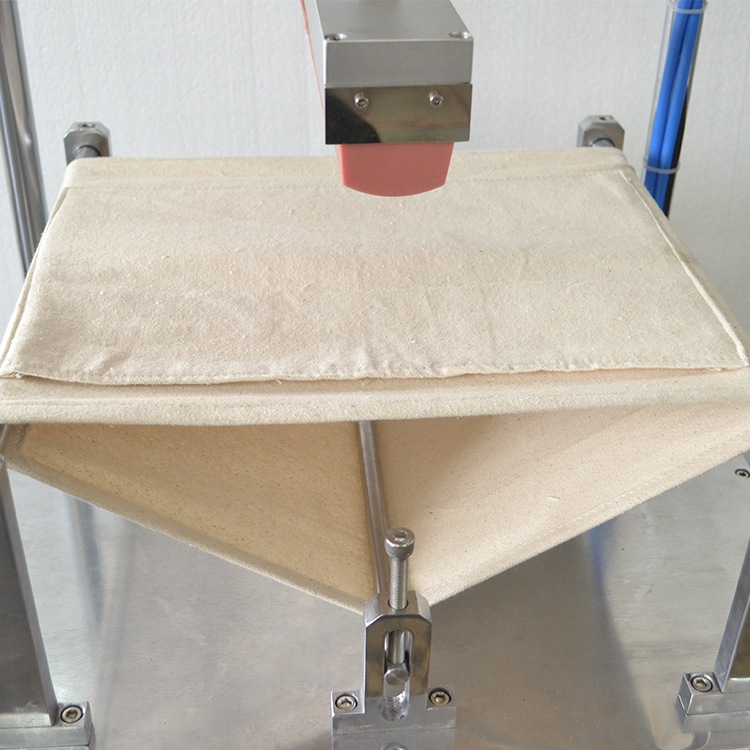

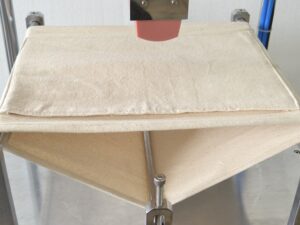

The soft pressure testing machine adopts high elastic rubber and denim to squeeze the product, and the product can be used to evaluate the reliability of the product under certain pressure. Set the squeeze time, and the total number of times and the total number of times to stop. Check the test of the upper and lower rings, and check the
performance test of the mobile phone after the test.
Features
The machine USES high elasticity and denim to squeeze the product to simulate the actual situation of the product.
The machine complies with the information industry’s resistance to extrusion test.
All the pneumatic components are SMC, and the dual station is controlled by Mitsubishi LCD touch screen + PLC, and the quality is reliable.
Optional standard meter, real-time sense and extrusion pressure, precise control test;
The high precision type adopts all-electric control power and the strength is smooth;
Technical parameters
Item
Mobile phone soft pressure tester
Model
NG-225
Extrusion pressure can be set
10~50,120Kgf or optional
Test stroke
200mm
Test speed
10~30time/min
Count setting range
1~999999times
Machine size
530*470*1200mm(W*D*H)
Machine weight
Approx 85Kg
Power supply
220V, 2A or optional
