Summary:

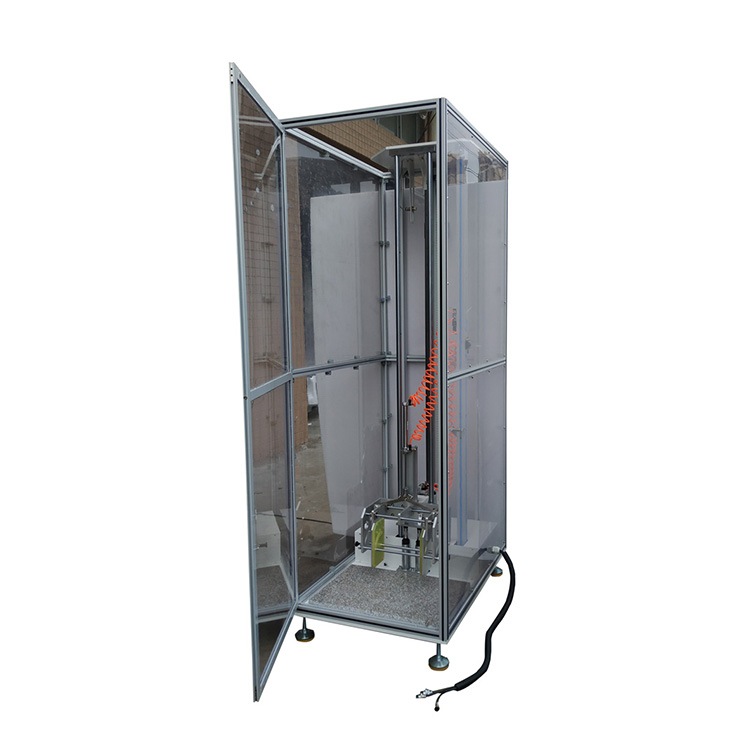

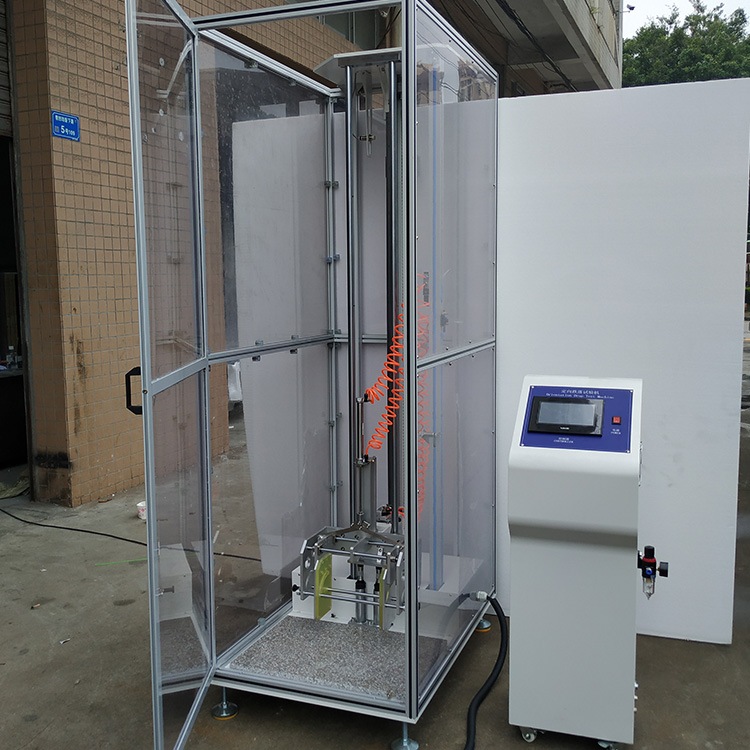

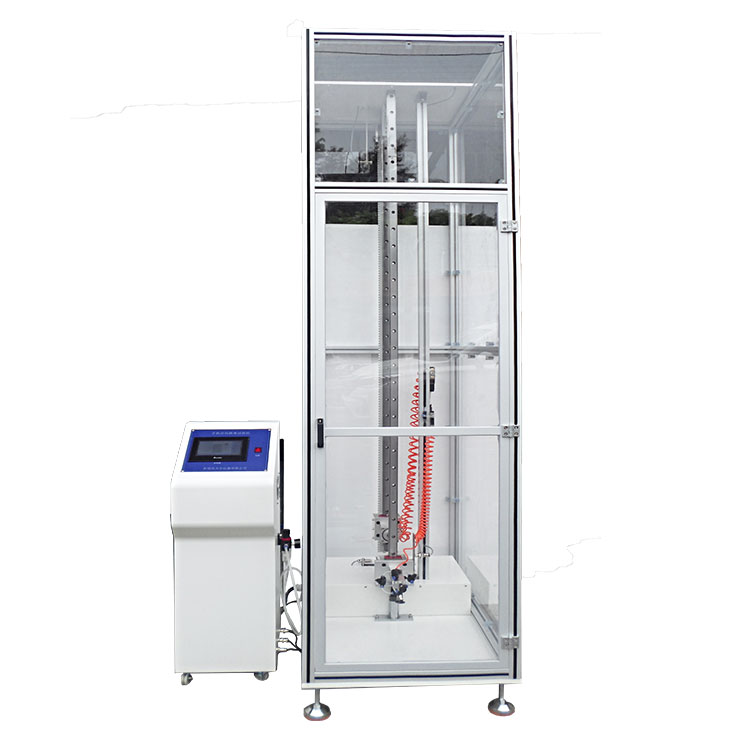

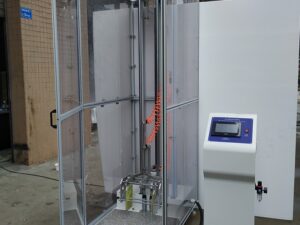

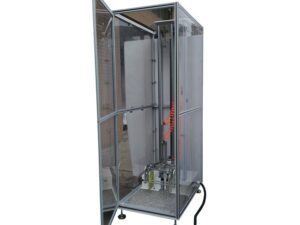

Mobile Phone Directional Drop Testing Machine is designed to evaluate the impact of the product on the performance of the product after the product has been accidentally dropped. When applied to mobile phone, PDA, telephone, electronic dictionary, CD, MP3, adapter, battery and other small consumer electronics For the original posture and acceleration drop test.

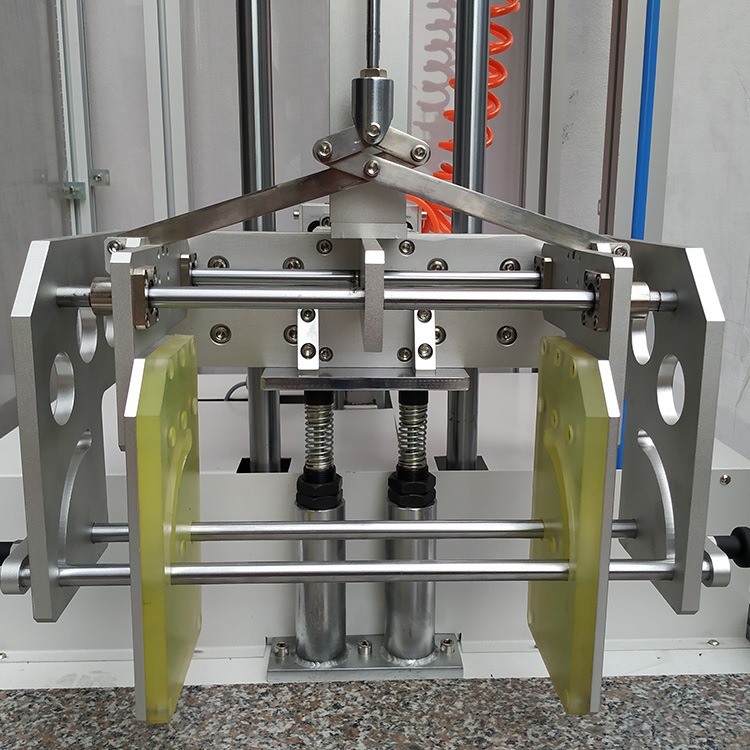

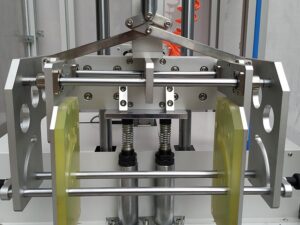

The machine adopts electric lift and pneumatic drop structure, the lift location is accurate and fast, the drop is real and effective; Equipped with special pneumatic clamping fixture (adjustable stroke) , the front end of fixture is equipped with silicone rubber (to avoid cutting products or operators) or sucker fixture. It can used for drop test of mobile phones of various specifications; Drop height is driven by electric motor and adjusted by precise screw drive. The operation is smooth and low noise. No hands are needed to move the drop height.
Application Standards:
IEC60068-2-32, GB/T 2423.8, YD/T1539-2006, JIS C 0044 ETC.
Features:
The machine uses the electric components for the test height adjustment, positioning fast, durable use;

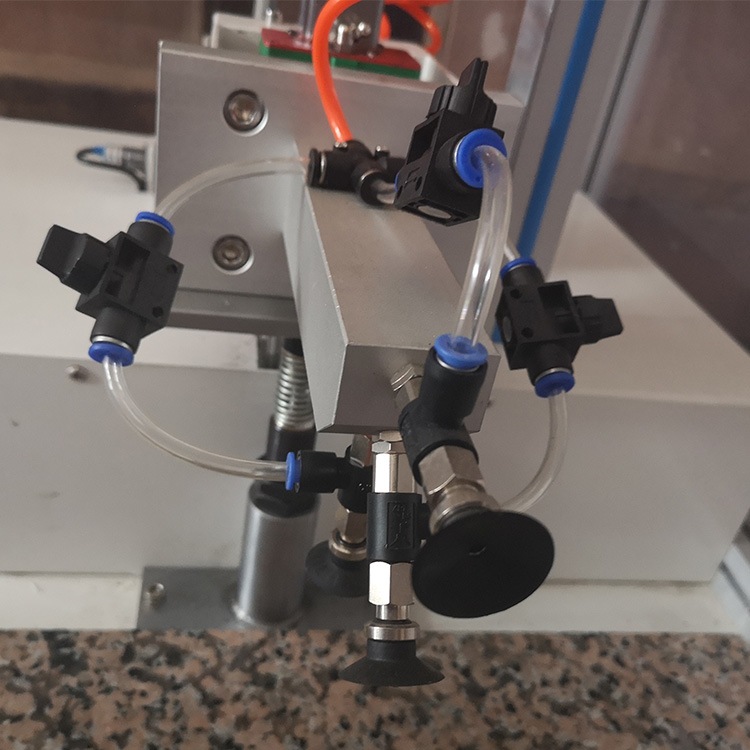

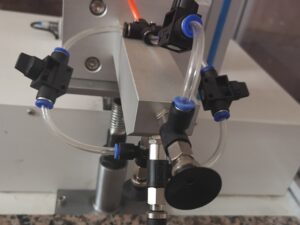

The machine uses Japan SMC vacuum sucker adsorb products to achieve multiple-angle drop, for products: Ling, angle, surface test.
Product drop angle close to the test set the angle;
Drop test can automatically rise to set the height, easy to operate, improve test efficiency;
All pneumatic components are used in Japan SMC quality components, durable use;
A variety of drop board optional: steel, transparent acrylic board, wood), cement board, marble plate, for multi-country test requirements (standard products marble fall media)
Automatic counting (drop count) function;
Touch screen + high response PLC control, and all the electrical control parts choose high quality brand products, which has faster response speed and more stable operation. Acceleration, maximum landing speed, test time and other data can be measured.
Specifications:
Max. test height
300 ~ 1500mm, 1800mm (or customized)
Max. drop Weight
2kg
Min. detachment height
300mm
Counter
0 ~ 999999
Display
Touch screen setting and dispaly
Air source
≥ 0.5MPa
Sample fixing method
Sucker or Clamper
Machine size
W700xD1000xH2400mm
Power
AC220V 50Hz 3A or 110V 60Hz 6A
