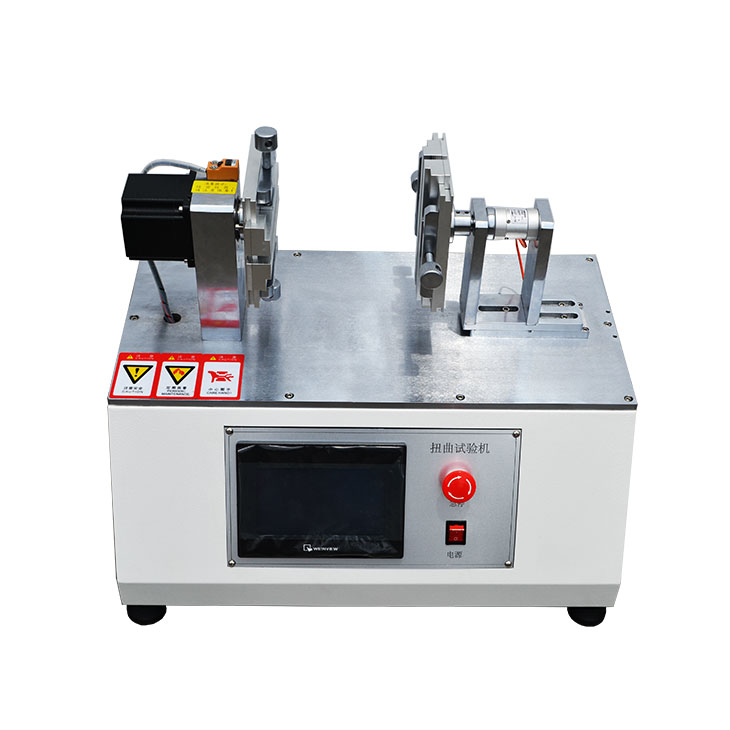

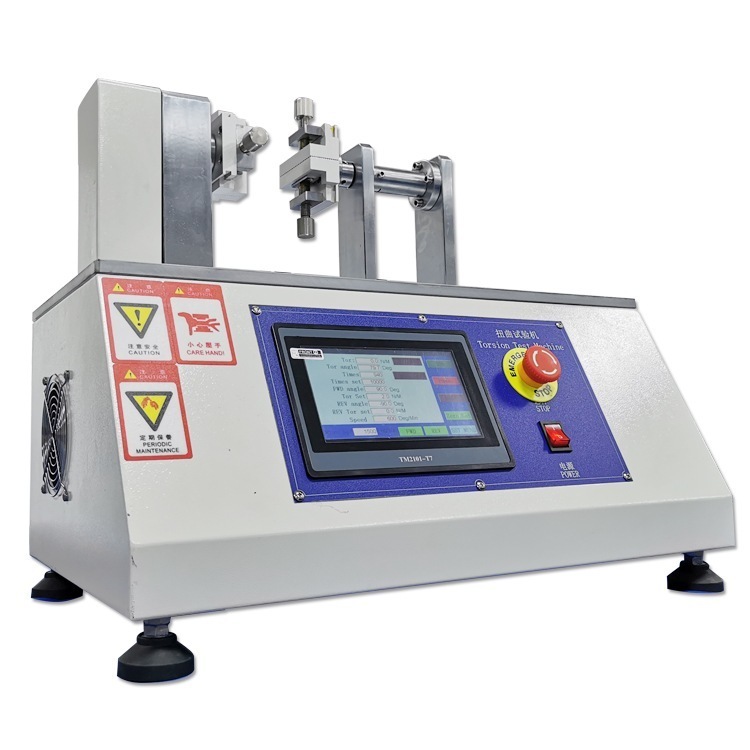

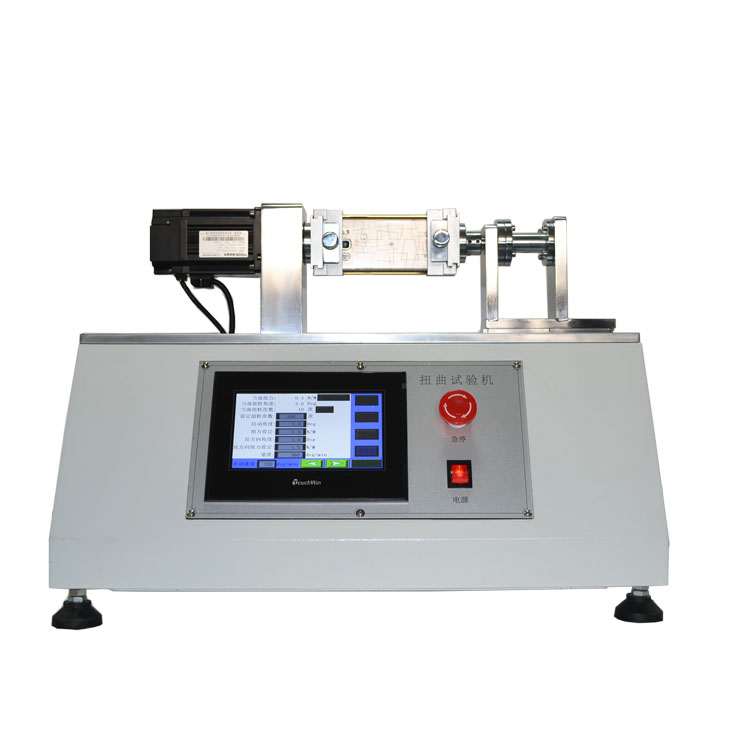

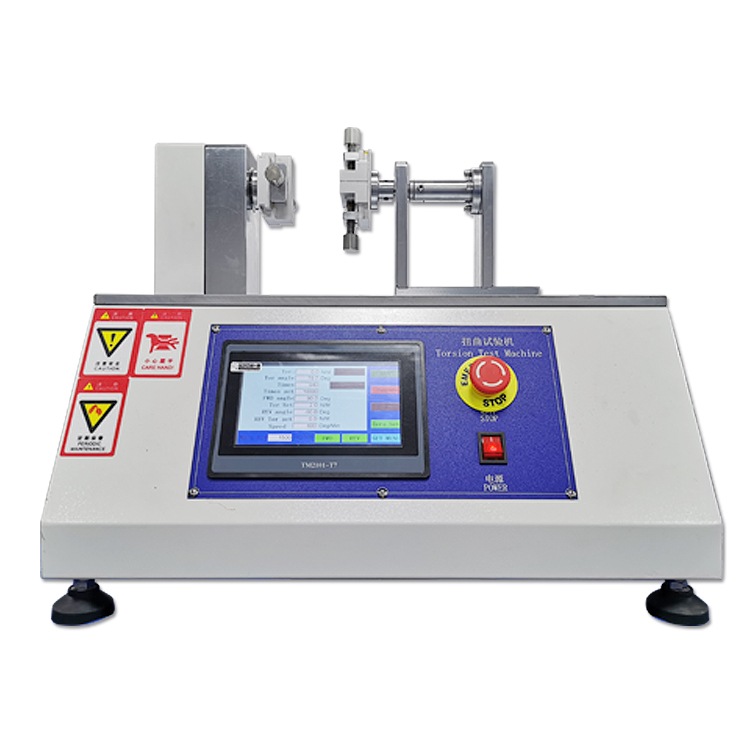

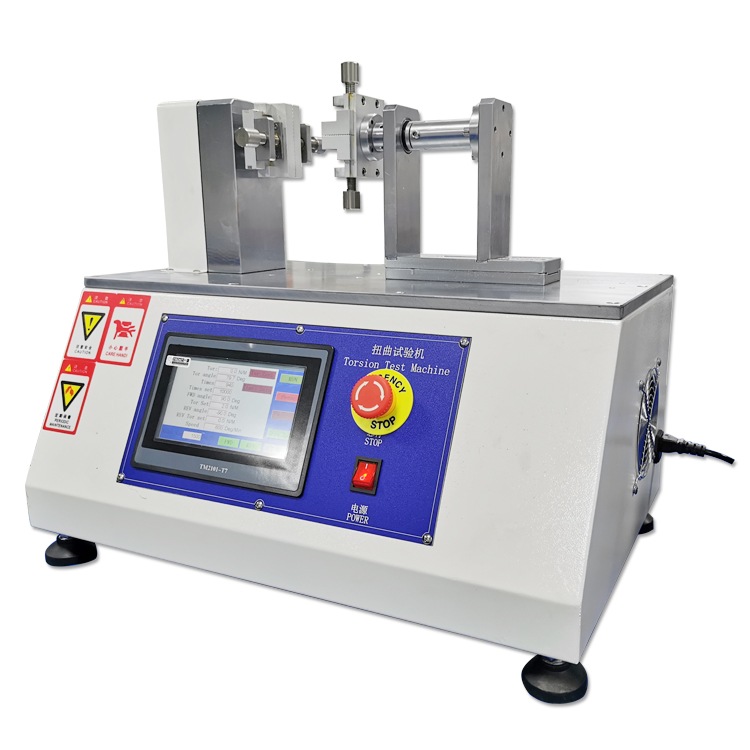

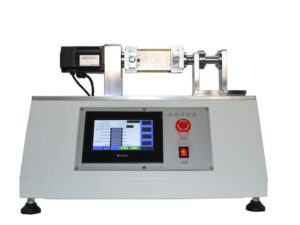

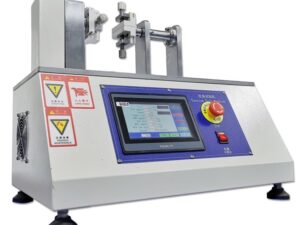

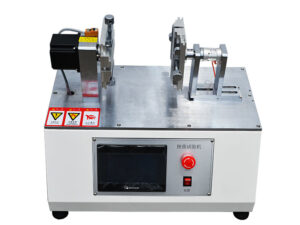

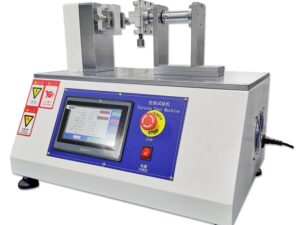

Mobile Phone Shell Twisting Tester, Phone Cover Torsion Fatigue Tester
Model
NG-227
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
This machine is used to detect the twist test of mobile phone (mobile phone case). It adopts PLC and HMT control system. It can set the torque value to test the twist life. After seeing whether the phone function or the shape of the phone case is normal, it is counted once and for all. The touch screen screen
is coordinated and displayed, and the operation is convenient. Meet the YD/T 1539-2006 standard.
Purposes:
Durability of phone case.
Anti-distortion performance of internal structure.
3.Test procedure description
Features:
A device for testing the anti-distortion performance of a mobile phone.
High accuracy of torque control, real-time display of torque value, automatic control to maintain torque.
Reasonable structure design, unique, suitable for different types of mobile phones.
Stable operation, low noise, maintenance free.
Actualize the servo motor;PLC control.
Large touch screen interface control.
Manual and automatic switching.
The clamshell mobile phone can be opened to test the state.
Test Process:
During the simulation of the user’s use, the phone case is tested by the twisted action.
One end of the phone in the longitudinal direction is fixed in the twisting fixture, and the other end is placed floating (the bilateral gap is about 1mm) in the fixed fixture → the motor drives the twisting fixture to rotate in the reverse direction.
Specification
Item
Mobile Phone Torsion Test Machine
Test station
1
Test speed
0-30 times / min
Test times
0-9999999 times (can be set arbitrarily)
Torque setting range
0.3～4N.m±0.5%FS
Control mode
Touch Screen Controller
Overall size of the machine
600*550*400mm
Power supply
AC220/50HZ
Weight
about 50kg
