Mobile Phone Hard Pressure Life Tester, Hard Compression Testing Machine
Model
NG-226
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述

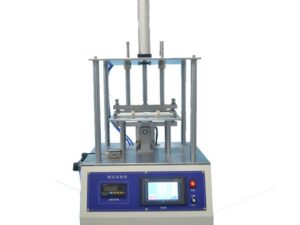

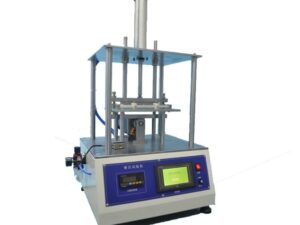

Summary:
Mobile Phone Hard Pressure Life Tester can simulate mobile phones and other products, imitate people repeated pressure life test, with a certain hardness of aluminum of round head, with cylinder to drive, adjustment of certain pressure 17 kg, determination to reach number after the damage.Meet YD/T 1539-2006 standard.Mobile handsets were not packing, put on the form a complete set of battery boot lock the keyboard on the face, the hard life of pressure testing machine body and fixed bracket of axial vertically placed in the aluminum extrusion of round head 12 cm in length (250 + 10) N, 15-30 times per minute 1000 times, the frequency of the extrusion sample after the function, appearance and assembly shall comply with the requirements of related
standard.The hand holding machine for folding, sliding and rotating structure should be tested under the closed – cap state.
Technical parameters
Proudct name
Mobile Phone Hard Pressure Testing Machine
Test the largest sample
200cm*10cm, with adjustable height of 4cm
Working frequency
10~60 times/min
Calibration device
one set
pressure sensor
100kg
Alarm time
5-10 seconds (fixed)
Pressure head
choose round bar aluminum
Machine size
Approx 450*330*500mm
Weight
Approx 50kg
Power supply
AC220/50HZ
