描述
Temp. Range
Room temp. ~ – 40℃
Control precision
±0.3℃
Uniformity
±0.1℃
Cooling Speed
Within 50 min (approx.)
Refrigeration System
Single stage, hermetic compressor
Refrigerant
R404

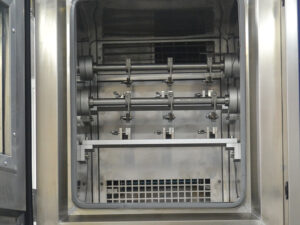

Inside Clamps
Leather flexing clamps (or customized)
Inner Chamber/Grips
Stainless Steel ( Interior Imported Frosty Stainless Steel)
Insulation (to Keep Warm)
Hard polyurethane foam
Control and display system
HMI+PLC
Counter
LCD, 0-999,999
Viewing Window (WxD)
3-layer vacuum glasses
Inner Lamp
PL lamp, 9W
Interior (WxDxH)
50x50x60cm (or customized)
Power
AC220V 50/60Hz

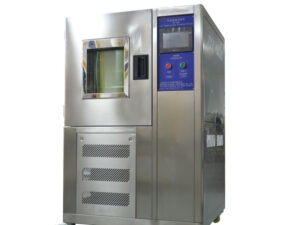

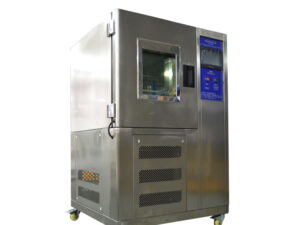

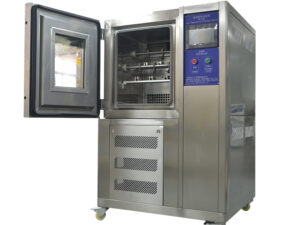

This Bally Leather Low Temperature Flexing Tester is used to test the bending / flexing durability of rubber, plastic, shoe, synthetic leather… etc under the specified cold environment. Since the design of this tester adopts the vertical structure, it`s not necessary to bend down for installing the specimen. The machine is made of stainless steel and can be equipped with a variety of resistant fixtures to meet different requirements.
Standards:
ASTM-D1790，D1593,1052，JIS-K6545，HB-T2877，CNS-7705，ISO 20344，GB/T20991-2007 Etc
Features:
* Important parts are from Japan, Germany, France, Taiwan, South Korea
* Install cable test hole, electricity test sample for test.
* Have over temperature, water shortage, leakage protection device such as a security.
* Adopt imported digital display temperature control meter, moisture, temperature and humidity controlling visual display.
* The door is equipped with large viewing window, indoor lighting installation, can observe the test the test status of the sample.
* Adopts steam humidifying method, automatic water circulation loop, with functions of automatic filling water.
* The working chamber is made of high quality 304 stainless steel mirror plate, shell electrostatic plastic spraying and efficient thermal insulation layer.
