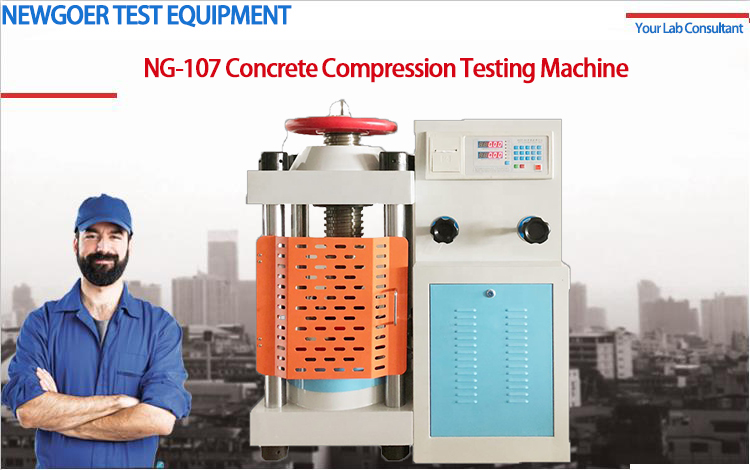

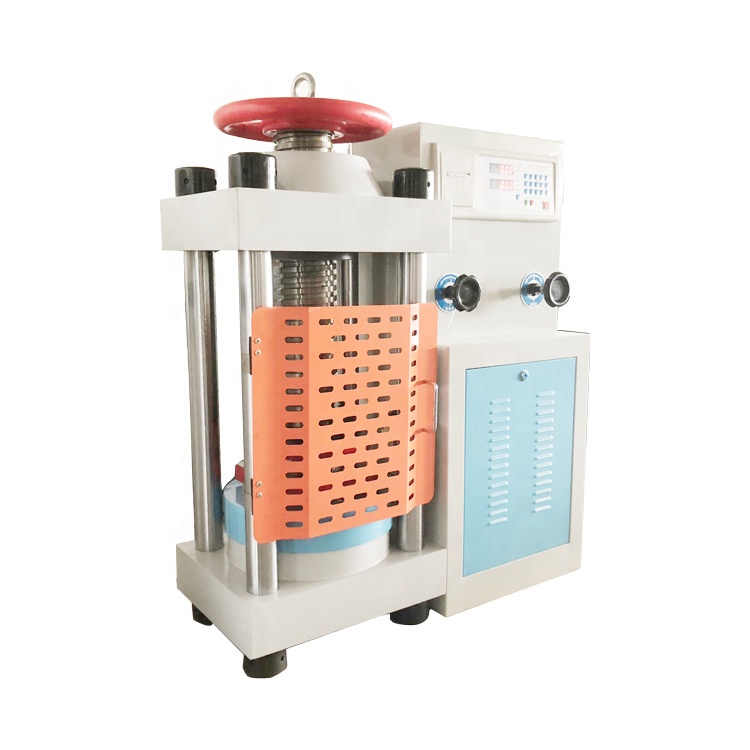

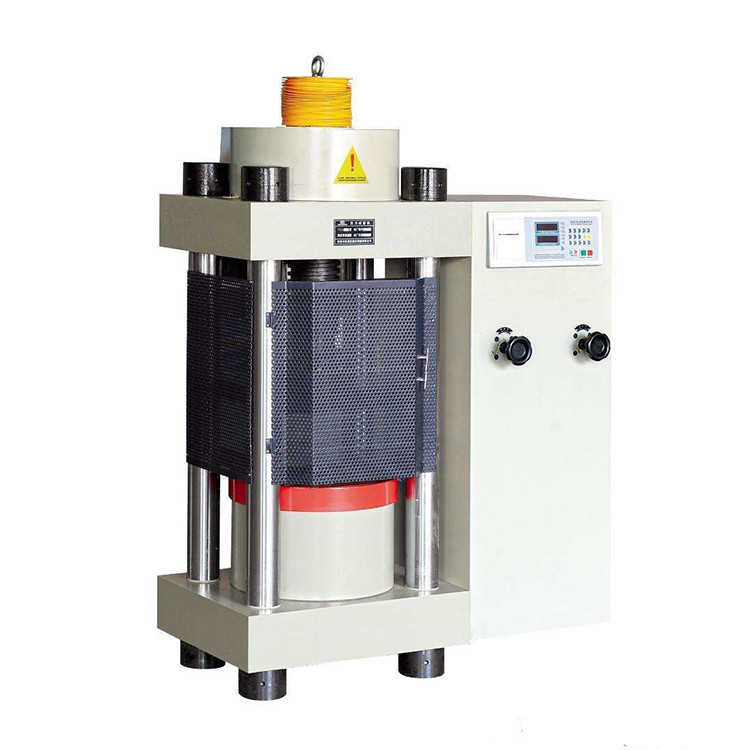

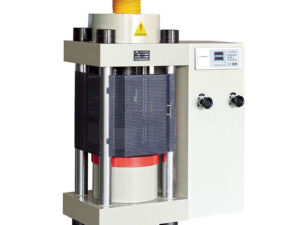

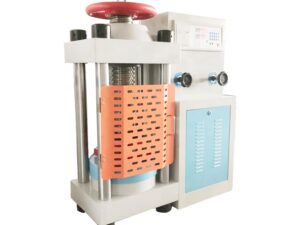

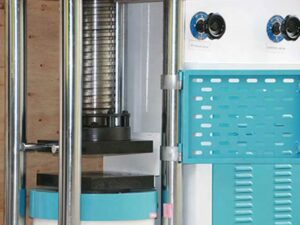

Cement Block Concrete Compressive Testing Machine
Model
NG-107
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
MAIN APPLICATION

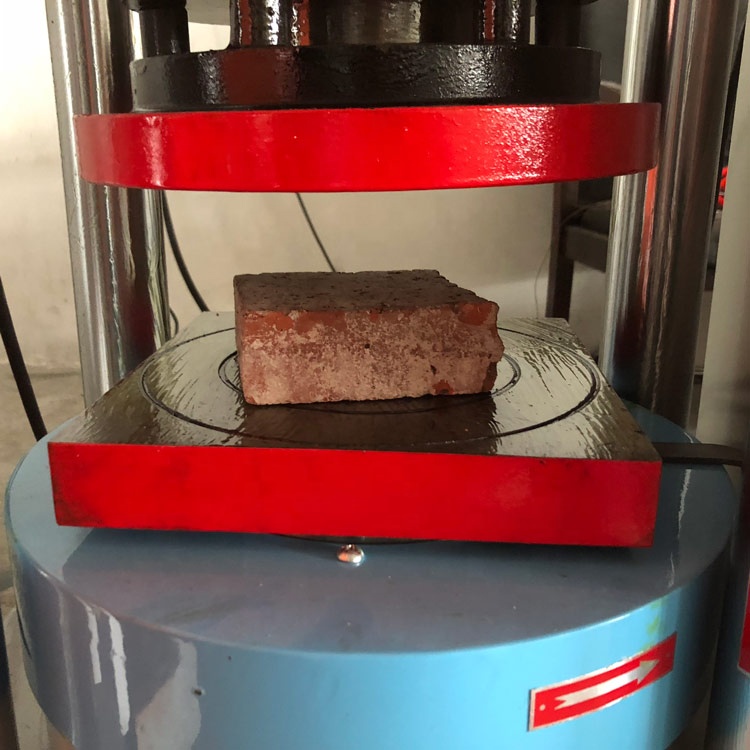

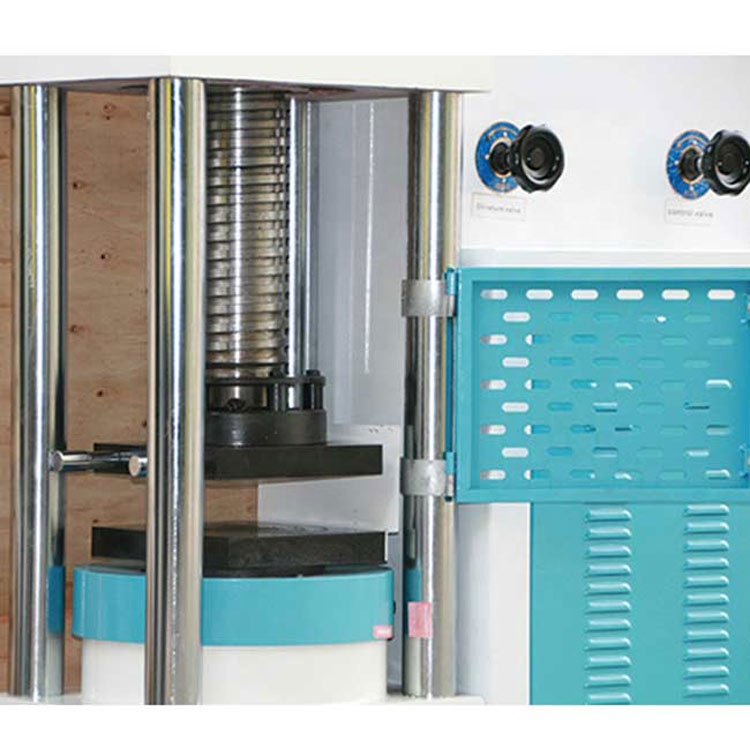

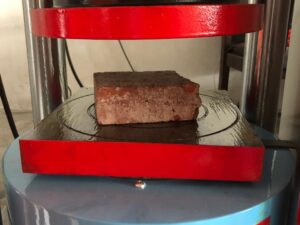

Cement block concrete compressive strength testing machine is designed to conduct compression and crushing strength tests on containers, concrete cube &cylinders, hollow blocks and various other material in accordance with international standards. The machine is electro-hydraulically operated. the control panel comprises of hydraulic power pack, digital readout system , operating switches, load control values, output print-out of test data.
FEATURES
Efficient hydraulic power packs
Economic machine ideal for site use
Designed to meet the need for a simple , economic and reliable means of testing concrete
The dimension of the frame allow the testing of cylinder up to 320mm long *160mm motor and any arbitrary size
Digital readout is microprocessor controlled instrument which is fitted as standard to all digital machines in the range
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range
TECHNICAL SPECIFICATIONS
Model
NG-107
Max Test Force
2000KN
Measuring range
0-2000KN
Relative indication error
±1%
Size of the bearing plate
240*220mm
Diameter Of Piston
φ250mm
Distance between up and down bearing plates
310-320mm
Distance Between Columns
270*200mm
Piston stroke
50mm
Rated pressure of the hydraulic pump
40mpa
Minimum piston lift speed:
50mm/min
Piston free back speed
20mm/min
Noise
≤80dB
power
220V60HZ
Dimension mm
800*500*1300
Stock room of our Hydraulic universal testing machine
