Summary:

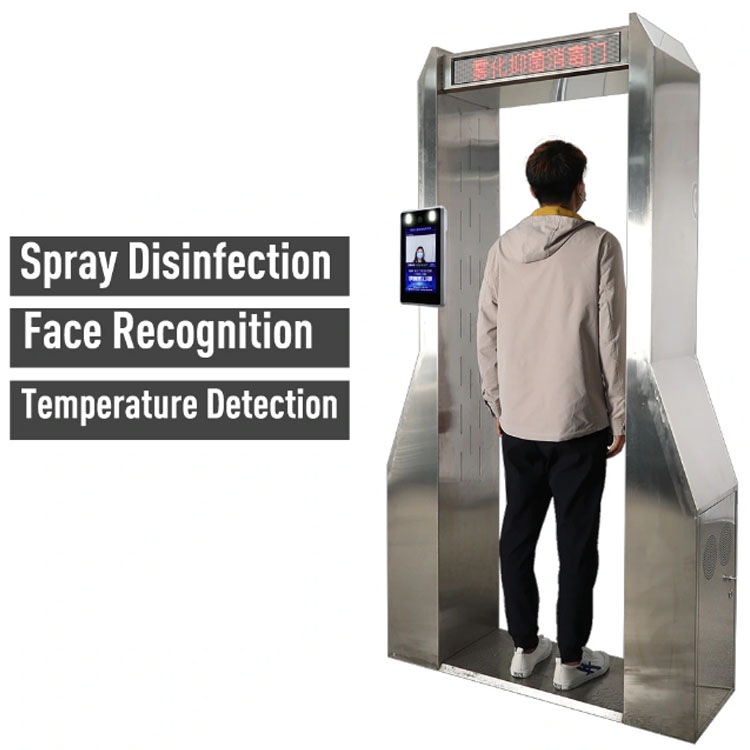

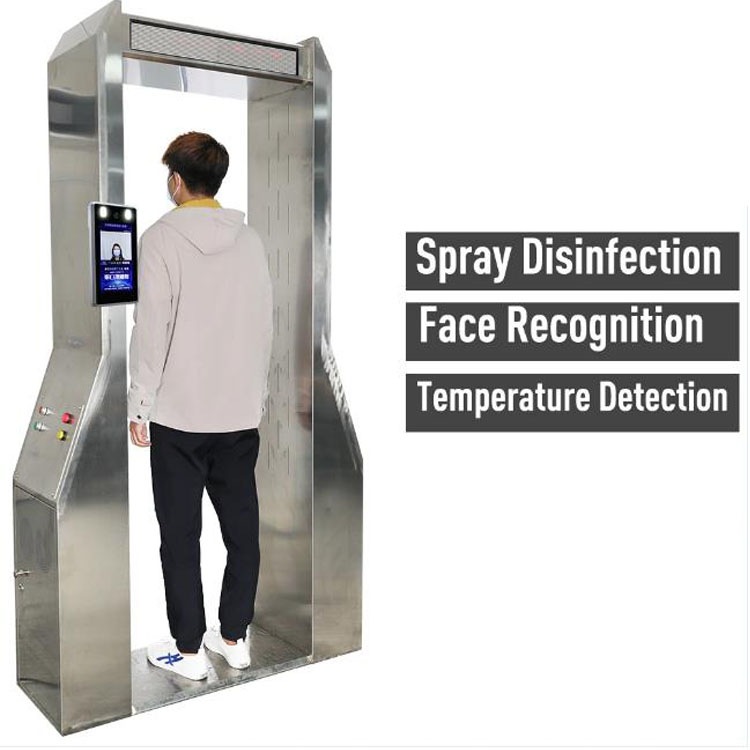

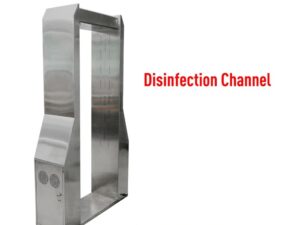

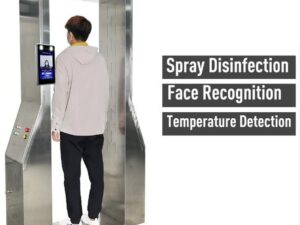

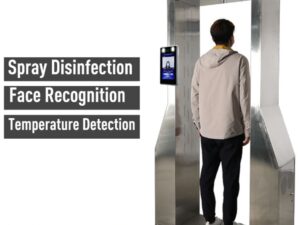

Disinfection Tunnel which can optionally go with temperature scanner,Widely applied to various places for disinfection and temperature ,Detection purpose.
Applications:
Government departments: including courts, hospitals, subways, high-speed rail, prisons, detention centers, labor camps, drug treatment centers, and public security bureaus. Public places: including schools, gymnasiums, entertainment venues (disc halls, dance halls, etc.), airports, railway stations, bus stations, ports, exhibition halls, museums, banks, oil depots, power stations, etc.
Sterilization principle–Compared to common disinfectants:
Specifications of Temperature Measurement and Face Recognation Part:
Face recognition rate
≥99.8%
Face recognition distance
0.5m
Temperature measuring area Length
640mm
Human body induction way
Microwave detection
Temperature sensing mode
Infrared spectroscopy (accurate real-time inliving body detection)
Spectral range
8~14um
Temperature collection distance
10~20cm
Temperature collection Accuracy
±0.2ºC
Temperature display panel
8.0 inch
Temperature detection output
Unqualified that is over the temperature, automatic alarm
Features:
1.Automatic induction spray function: The Equipment installs the microwave movement object sensor, detects after the human enters, starts the fog machine by itself, sprays the disinfectant in door.
2.Infrared temperature measurement, sound and light alarm: Non-contact temperature measurement can be realized by using high precision industrial infrared spectrum sensor and calibrated by black body radiation source. It is fast and reliable,can effectively avoid cross-infection and collect body temperature in real time. Peak extraction, contrast output, signal lights, and buzzers alert.
3.Food grade disinfectant: The equipment adopts food grade disinfectant, widely used in food, tap water, vegetables and fruits and other objects disinfection, the solution strictly in accordance with the International PM value ratio to provide, to ensure human health and safety
4.Non-angle attack spray does not irritate human facial organs: The fog outlet is non-angle design to avoid spraying directly to human’s face.
5.Device status remind function: Equipment with work, lack of liquid, lighting and other state display, so that equipment managers can accurately grasp the status of equipment operation in real time. Fog Equipment with anti-dry burning function, can effectively prevent the improper operation
of the equipment caused damage.
6.Automatic supply solution function: The automatic rehydration equipment is equipped with 20L super large capacity liquid storage tank, which can automatically rehydrate the atomizing tank, reduce the workload of operators, and can be used for more than one day without resupply of disinfectant
7.Waste liquid collecting function: The bottom of the equipment is designed with waste liquid collecting tank and movable waste liquid collecting tank, which can completely collect the residual waste liquid after the equipment is disinfected, and centralize the hazardous waste treatment to prevent environmental pollution
8.Rapid setup function: Equipment using 220V AC, power consumption less than 1000W, installation and deployment is simple and quick, just insert row and add disinfection liquid , without professional installation and debugging, simple operation, easy to learn and use, disinfection liquid easy to add.
