描述
Items

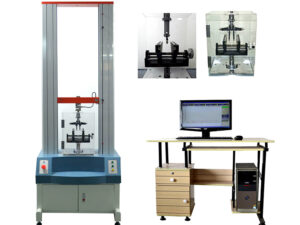

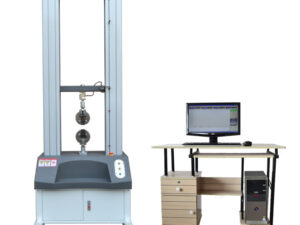

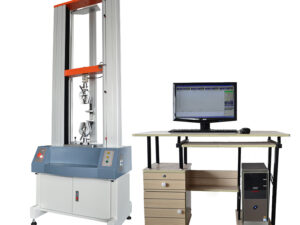

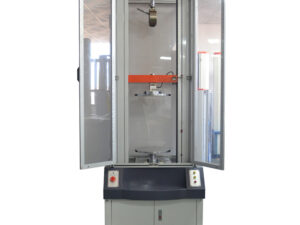

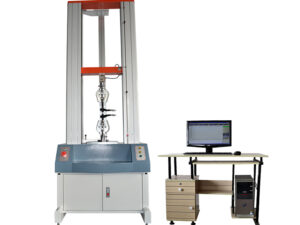

Servo Universal Tensile Testing Machine
Model
NG-101
Max. Capacity
10, 20, 50, 100, 200, 500, 1000, 2000Kg (Optional)
Unit
G, KG, N, LB can be exchanged
Accurate Grade
0.5grade
Display Device
PC
Resolution
1/250,000
Effective Accuracy
±0.2%(0.5grade)
Max. Effective Stroke
800mm (column 143mm)
Speed Range
0.05-500mm/min (adjustable )
Motor
Servo Motor + High Precise Ball Screw
Elongation Accuracy
0.001mm
Power
AC220V, 50/60HZ(custom-made)
Standard Accessories
Tensile Clamp (According to your test samples), English Computer,
English Software CD
