描述
Model
NG-BRV187.5
Rockwell scale
Test force
HRA, HRB, HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRR
60Kg (588N),100Kg (980N),150Kg(1471N)
Brinell scale
Test force
HBW2.5/31.25,HBW2.5/62.5,HBW5/62.5, HBW2.5/187.5
31.25Kg(306.5N),62.5Kg (612.9N), 187.5Kg (1839N)
Vickers scale
Test force
HV30,HV60,HV100
30Kg(294.2N),60kg(588N),100Kg (980N)
Test Scale
Rockwell: HRA， HRB， HRC， HRD，HRE， HRF，HRG，HRH，HRK
Brinell: HBW2.5/31.25， HBW2.5/62.5，HBW5/62.5， HBW2.5/187.5
Vickers: HV30， HV100
Initial test force
10Kg(98.0N)
Max Height of Specimen
Rockwell:175mm, Brinell:115mm, Vickers:115mm
Amplification of microscope
37.5X, 75X
Hardness value range
Rockwell: 20~88HRA 20~100HRB 20~70HRC
Brinell: 8~650HB
Vickers: 8~3000HV
Throat depth allowed
130mm
Duration time
2~60S
Power supply
AC220V + 5%, 50~60 Hz , (AC110V available)
Executive standard
GB/T230.2,GB/T231.2,GB/T4340.2,ASTM E18,ISO 6508,JJG112,JJG150,JIS B-7734
Standard Accessories:
Name
Quantity
Name
Quantity
Diamond Rockwell Indenter
1
1.5875mm Ball Indenter
1
Diamond Vickers Indenter
1
Brinell φ2.5、φ5 mm Ball Indenter
2
Hardness block
5
Large, Medium, “V” shaped Testing Table
3
Measurement microscope
1
Sliding Testing Bench
1
Objective
2
Floodlight
1
Power Cable
1
Fuse 2A
1
Operation Manual
1

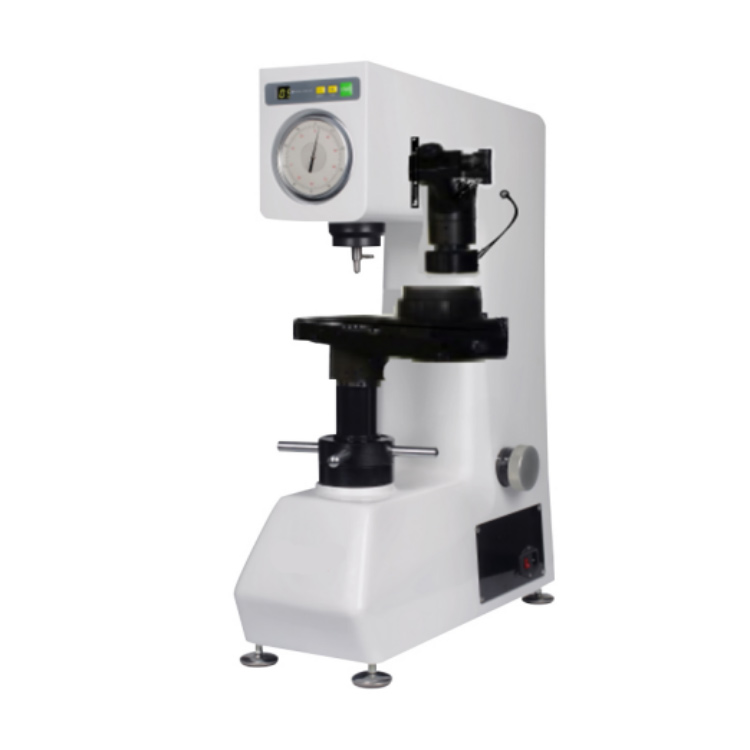

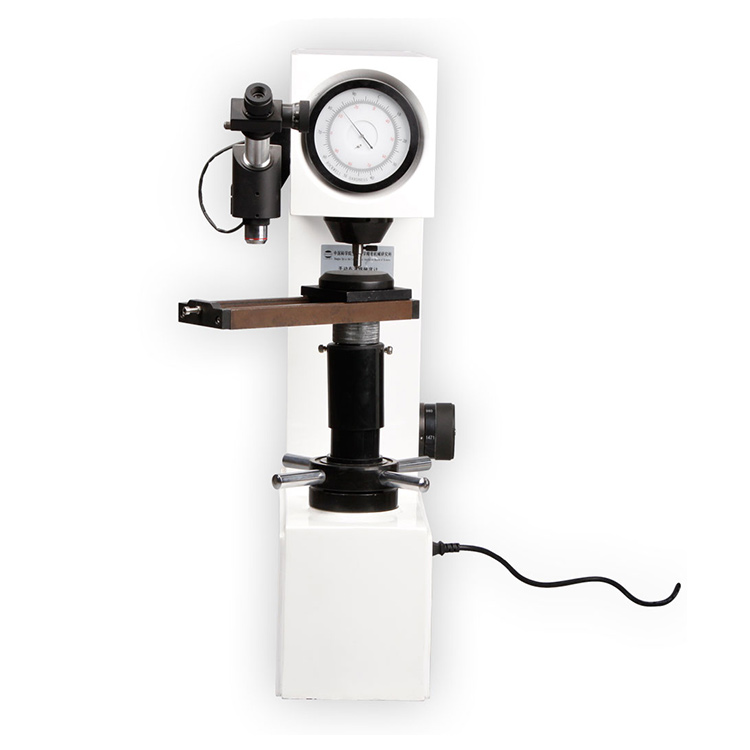

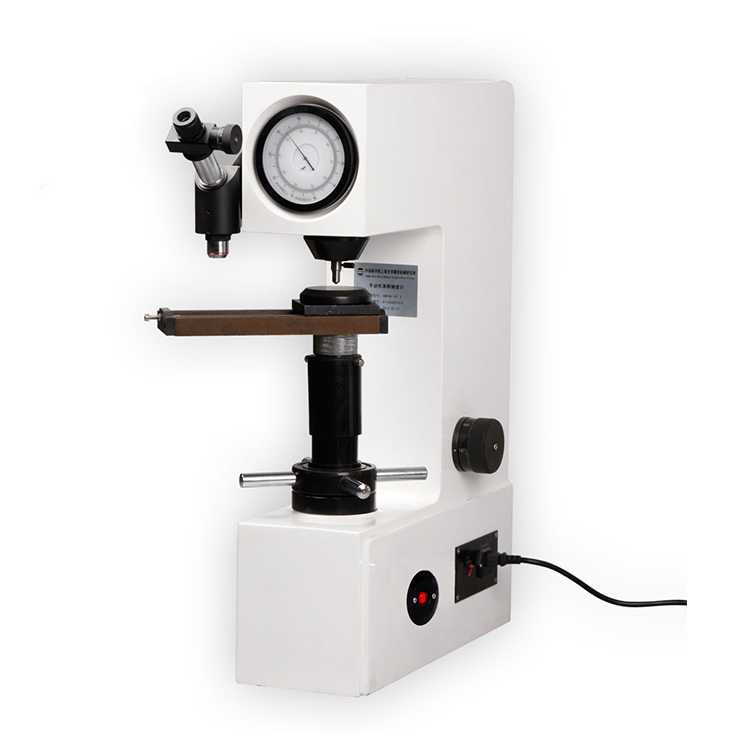

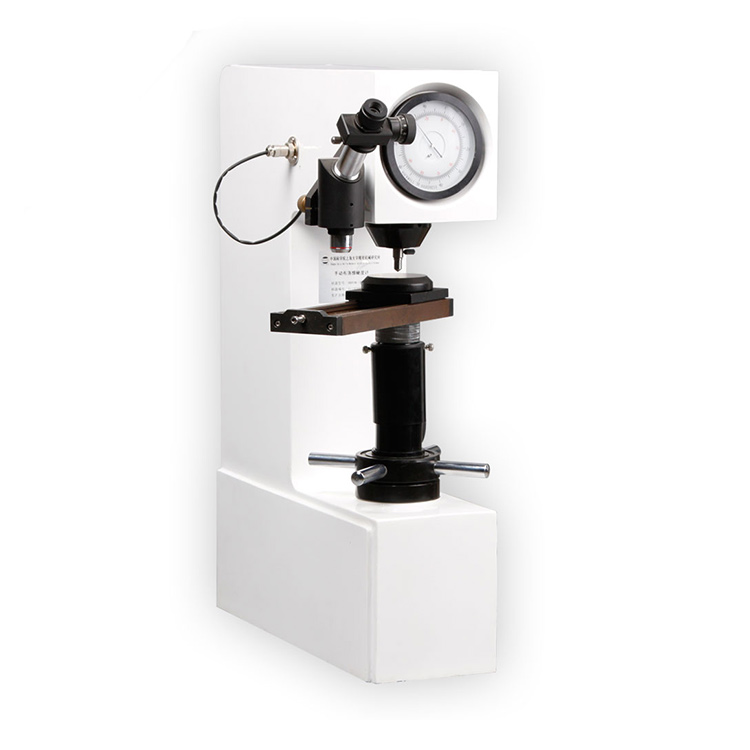

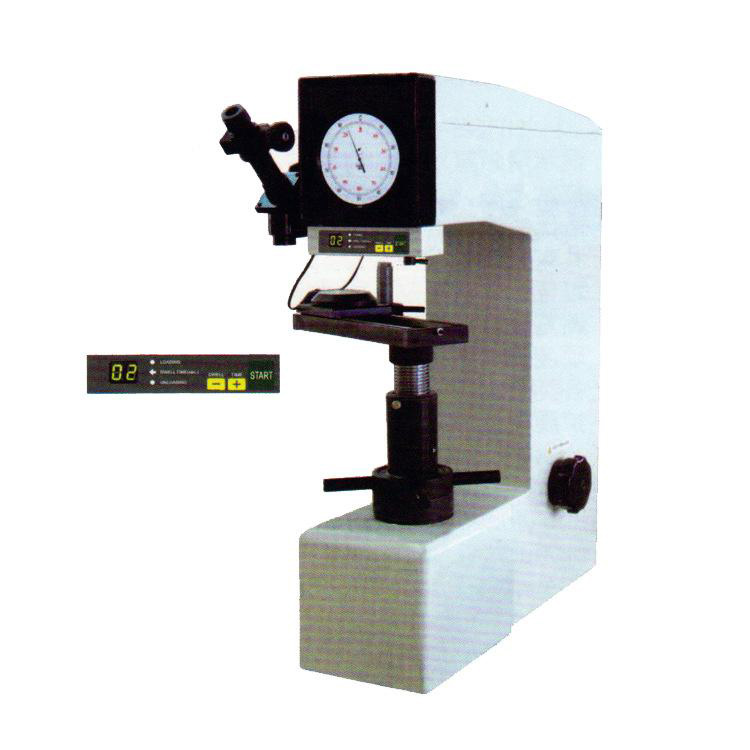

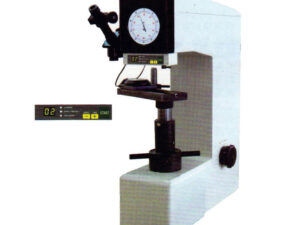

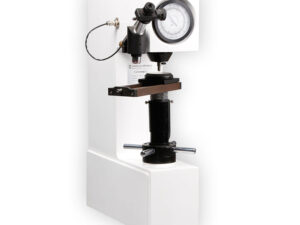

BRV187.5 Universal (Brinell Rockwell Vickers) Hardness Tester is a multifunctional hardness testing equipment, it can test the hardness by brinell, rockwell, vickers three test ways.
It has multilevel test force, can meet different test requirement. It has high test accuracy, simple operation and stable indication.
Features:
● 3 types including Brinell, Rockwell, Vickers three kinds of test methods
● 7 level of force, multi-function, can satisfy user’s multi-purpose requirements
● Rockwell reading in dial pointer, Brinell/Vickers lookup in table
● Automatic loading and unloading of test force
● Wide utilization, convenient operation
Application:
● Widely used in the Rockwell, Brinell, and Vickers hardness test of Ferrous and nonferrous metals
● Castings, annealed steel, normalized steel, non-ferrous metals and soft alloys ( Brinell )
● Heat-treated materials ( Rockwell )
● Nitriding layer, ceramic, sheet, foil, plated layer, and minute parts ( Vickers )
