Description

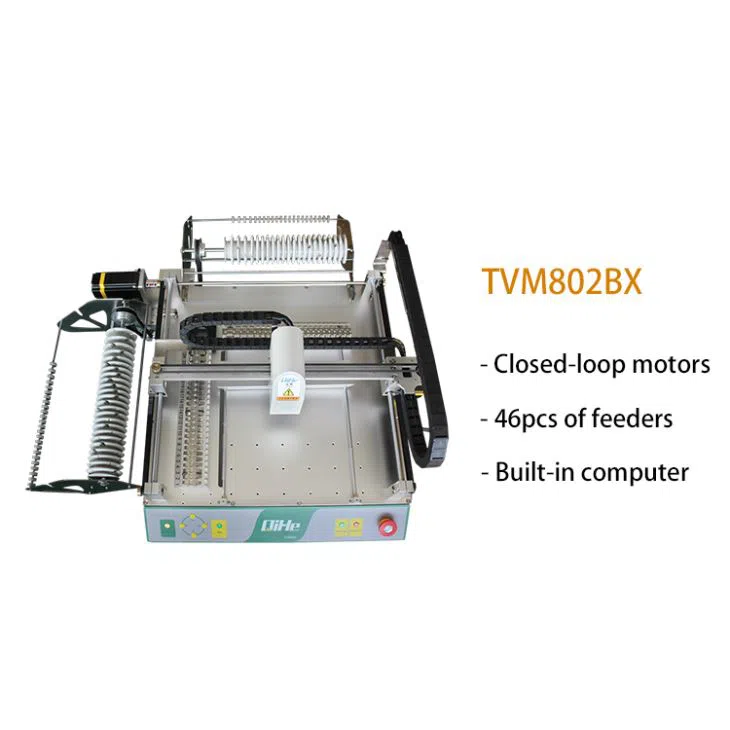

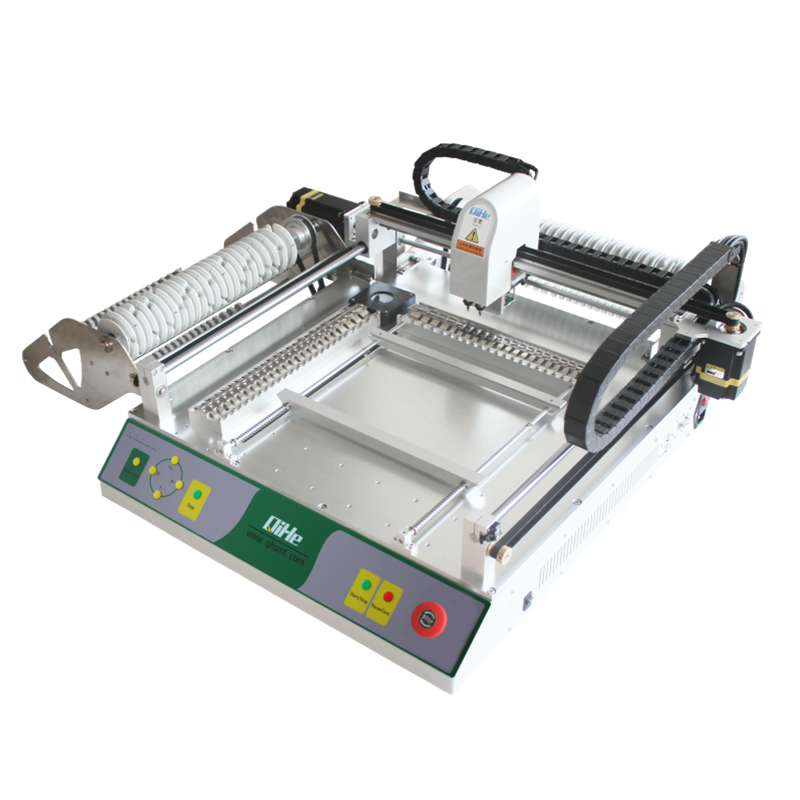

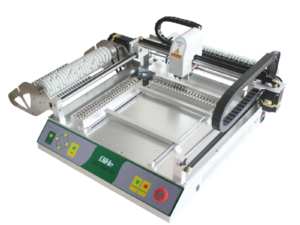

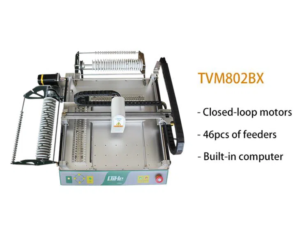

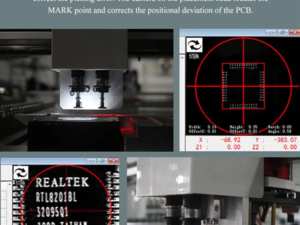

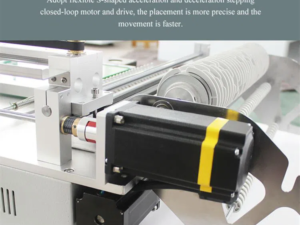

TVM802BX SMT pick and place machine (desktop pnp mounter). The advantages of this model are the built-in industrial control computer, optimized driver and software algorithm,2 placement heads，46 slots.Can handling smallest package size:0402 inch and up to largest size:TQFP100.The external dimensions of TVM802BX are 940mm*940mm*320mm. Deluxe edition is mainly composed of built-in industrial control computer,working head, dual vision system, operation platform, patented feeding rack,, closed-loop motor drive system, internal vacumm pump,etc. Voltage AC220V or AC110V, power 150W.

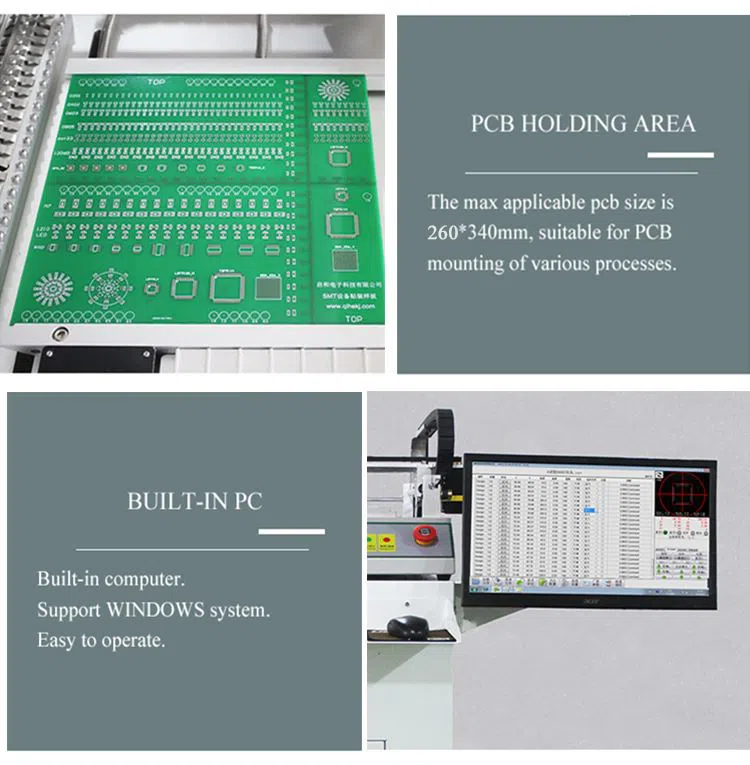

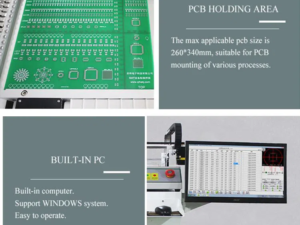

ModelTVM802BXMax applicable PCB size250*330mmMax xy moving range395*430mmMax z moving range12.5mmPlacement head quantity2Max mounting capabilityVision on: 5500pcs/hVision off: 6500pcs/hFeeder slots & Tape width46pcs, （8mm=38, 12mm=6,16mm=2）Visual camera2 HD CCD camerasApplicable component Smallest size:0402inchLargest size:TQFP100Power supply220V/110VNet weight44kgGross weight68kgMachine Dimension94*64*33cmPacking size107*77*42cmVolume0.35CBM
