heating zone up8 down8 .CHB temperature control meter is used to control the instrument operation interface, PID temperature adjustment, easy to operate: intelligent control system is adopted, the temperature control accuracy is high ±1-2°C, and the control system is stable and reliable;
Description
Inquiry
Description

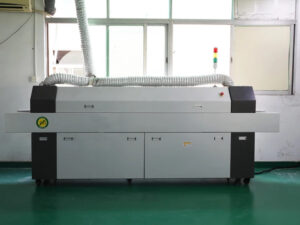

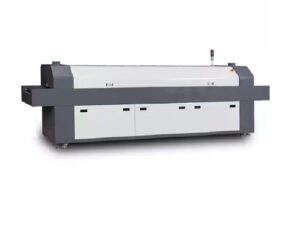

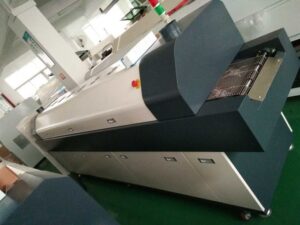

RF8835LS reflow oven CHB temperature control meter is used to control the instrument operation interface, PID temperature adjustment, easy to operate: intelligent control system is adopted, the temperature control accuracy is high ±1-2°C, and the control system is stable and reliable;
Equipped with mesh belt tensioning device, the transportation is stable, no shaking, no deformation, ensuring smooth transportation of PCB;
All heating zones are PID controlled by temperature control table (the upper 8 temperature zones and the lower 8 temperature zones have independent temperature control, which can be opened separately by different temperature zones. The heating can be divided into zones to reduce the starting power);
With fault sound and light alarm function;
Equipped with leakage protector to ensure the safety of operators and control system;
Built-in board ejection and automatic delay shutdown system to ensure that the PCB and reflow soldering machine will not be damaged when the power is cut off or overheated;

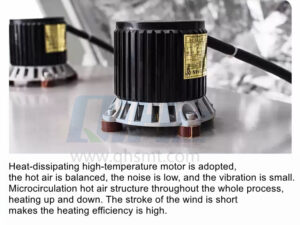

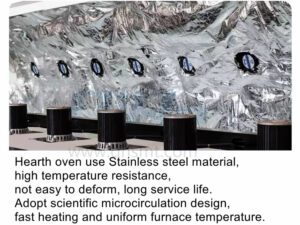

Adopt hot air circulation heating method, uniform temperature, high thermal compensation efficiency, high-efficiency pressurized acceleration air duct, greatly increase the flow of circulating hot air, rapid temperature rise (about 20 minutes), high thermal compensation efficiency, and high-temperature welding and curing;
The 8 upper and lower temperature zones are equipped with independent temperature sensing sensors to monitor and compensate the temperature balance of each temperature zone in real time;

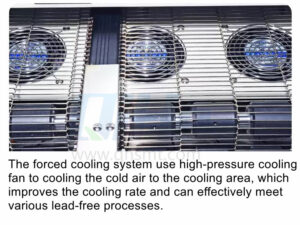

The rapid cooling system from the international technology adopts the magnifying glass type centralized high-efficiency rapid cooling, the cooling speed can reach 3.5~6℃/second, and the management is very convenient; the external forced cooling device ensures the crystallization effect of solder joints (Option optional, the standard configuration is forced natural air cooling);
Special pressurized air transport structure and special-shaped heating wire design, no noise, no vibration, high heat exchange rate, the temperature difference Δt between the bottom of the BGA and the PCB board is extremely small, which best meets the strict requirements of the lead-free process , especially for lead-free products with high difficulty soldering requirements.
About RF835LS reflow oven
Heating area number,up8/down8Heating zone length,2800 mmHeating mode,full hot airNumber of cooling zone,2PCB maximum width,350 mmTransportation direction,left to right (or right to left)The height of conveyor belt,880±20mmTransmission Mode,network transmissionConveyor belt speed,0-1800mm/minpower supply,380V 5 line 3 phase 50/60 hzStart the power,18kwNormal work power,5 kwHeating time,about 15 minutesTemperature control range,Room temperature to 350 ℃emperature control mode,Temperature meter controlTemperature control precision±1℃PCB temperature deviation,±2℃Abnormal alarm,temperature anomaliesAppearance size (length * width * height),4200 * 710 * 1300mmMachine weight,550 kg
