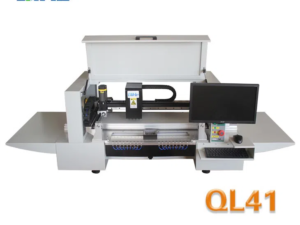

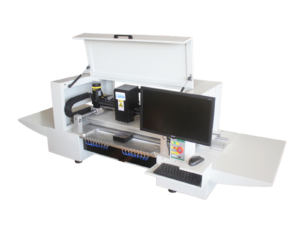

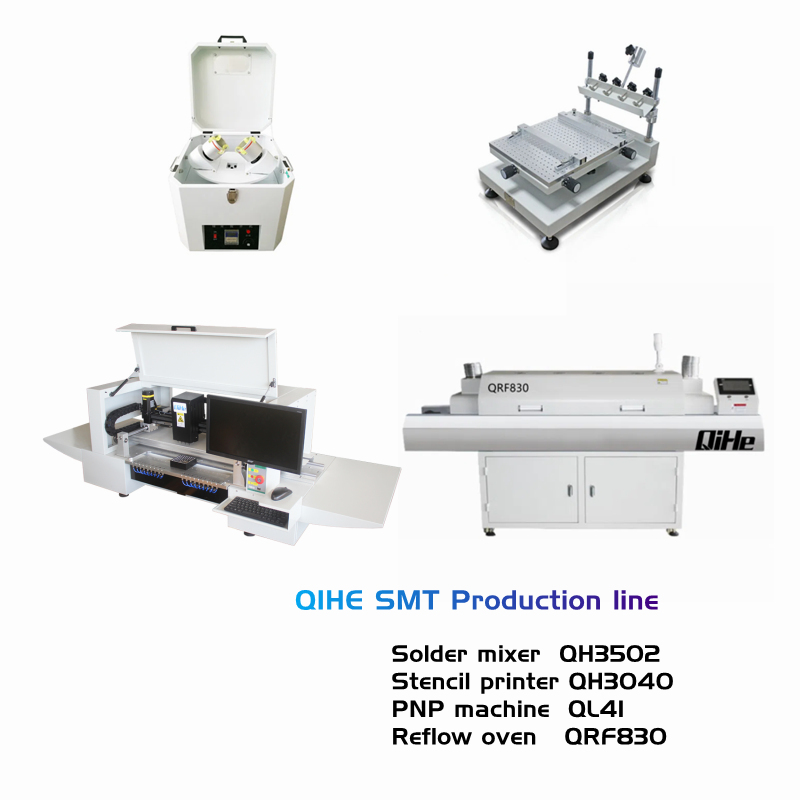

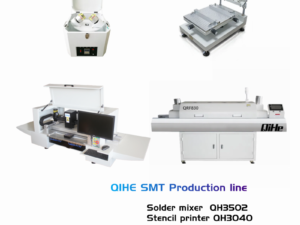

QL41 SMT pick and place machine 4heads 8slots LED for 1.2meters led strip pick&place machine
QL41 led pcb assembly machine SMT pick and place machine(pick&place machine) with four mounting heads can pick 4 materials and through vision at the same time.Flying vision camera is more stable, making mounting speed fast.
Description
Additional Information
Reviews (0)
Description

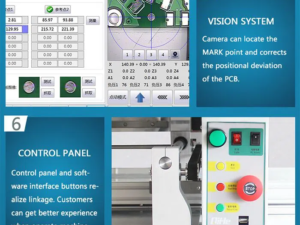

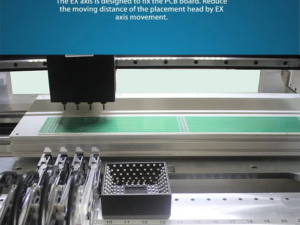

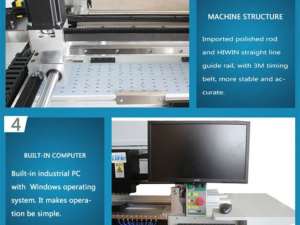

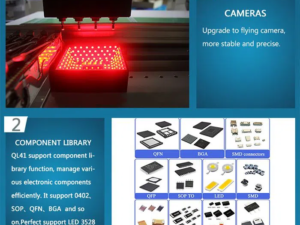

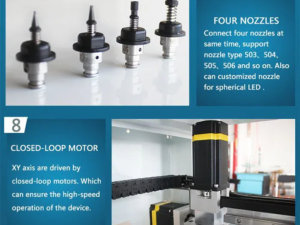

QL41 led pcb assembly machine SMT pick and place machine(pick&place machine) with four mounting heads can pick 4 materials and through vision at the same time.Flying vision components inspection camera is more stable, making mounting speed fast.One PCB detection camera used to detect circuit board placement.The EX-axis is designed to lay up the circuit board. In the process of mounting,the ex axis moves, driving the circuit board to move, so that the shortest mount distance.Mounting length up to 1200mm. Suitable for various types of LED strips and boards.Closed-loop motors design, automatic detection and correction of lost step.
ModelQL41Max applicable PCB1200*240mmMax XY Moving rang530*430mmMax Z Moving range15mmPlacement head quantity4Mounting speedVision off: 13000CPHVision on: 10000CPHApplicable componentSOP8.LED3535,5050 etc.Component supplyTape reel, Bulk, Tubular etc.Vision systemFlight CameraControl schemeClosed-loop motorFeeder count & Tape widthstandard 8slots,customized16slots (8mm,12mm,16mm,24mm)Power125W(average power)Power supplyAC220V or AC110VMachine sizeL2060*W630*H660mmPacking sizeL1470*W780*H900mmVolume1.02CBMNet weight156kgGross weight210kgsSupport PCB design softwareProtl99/Altium Designer/Eagle/Pads/Allegre etc.
