Description

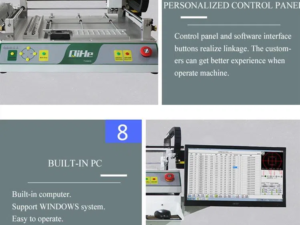

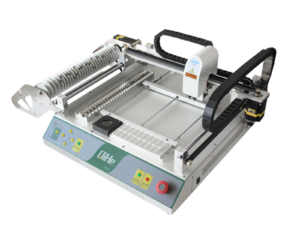

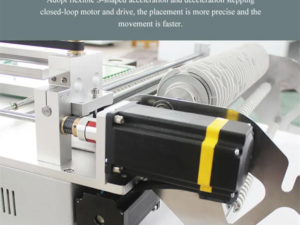

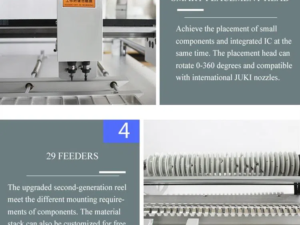

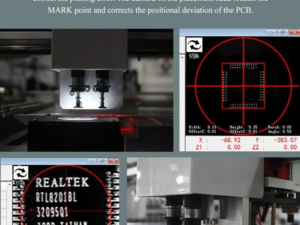

TVM802AX desktop SMT pick and place machine (desktop pnp mounter). The advantages of this model are the built-in industrial control computer, optimized driver and software algorithm，2 placement heads，29 slots.TVM802AX pick&place machine can handling smallest package size:0402 inch and up to largest size:TQFP100.The external dimensions of TVM802AX are 875mm*640mm*310mm.Deluxe edition is mainly composed of built-in industrial control computer, working head, dual vision system, operation platform, patented feeding rack, closed-loop motor drive system,internal vacumm pump, etc. Voltage AC220V or AC110V, power 150W.

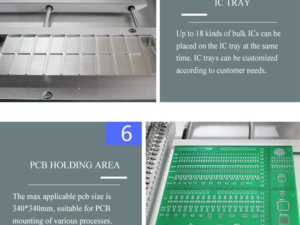

ModelTVM802AXMax applicable PCB size340*340mmMax xy moving range395*450mmMax z moving range12.5mmPlacement head quantity2Max mounting capabilityVision on: 5500pcs/hVision off: 6500pcs/hFeeder slots & Tape width29 slots（8mm=25, 12mm=3,16mm=1）Visual camera2 HD CCD camerasApplicable component Smallest size:0402inchLargest size:TQFP100Power supply220V/110VNet weight39.5kgGross weight66kgMachine Dimension94*64*33cmPacking size107*77*42cmVolume0.35CBM
