Water Repellency Spray Rating Tester, AATCC 22 Fabric Water Permeability Tester
Model
NG-532
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

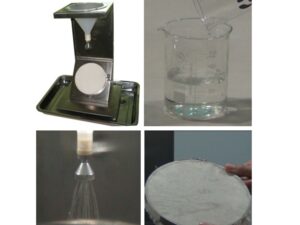

Water Repellency Spray Test Spray Rating Tester can performs a shower test to determine the resistance of fabric to surface wetting by water. Spraying quantitative distilled water on the specimen (at a 45 degree angle and 150 mm below) with standard nozzle. Then contrast and evaluate the specimen surface with the standard cards.
Features:
Made by stainless steel, the instrument is durable.
Special designed specimen ring clamp, operate easy and keep the result more objective.
The spray nozzle is a high precision machined component, ensuring the water flow complies exactly with the standards.
Standards:
ISO 4920, BS EN 24920, BS 3702, GB/T 4745, AATCC 22, M&S P23, NEXT 23.
Specifications:
Model
NG-532
Glass funnel
150x150mm
Specimen gradient
45degree
Distance between nozzle and center of specimen
150mm
Diameter of specimen rack
150mm
Matched graduate
500mL
Dimensions
500x400x500mm (LxMxH)
Weight
5kg
Standards
AATCC 22 ISO 4920
