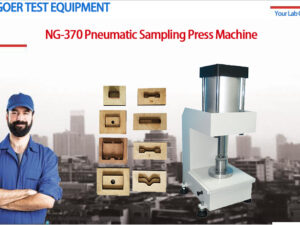

Pneumatic Sample Cutting Machine, Automatic Dumbbell Sample Press Machine
Model
NG-370
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Pneumatic Rubber Dumbbell Cutting Machine / Sample Cutter used pneumatic as motive power and it can operate once connect to the air pressure source. The machine can be appliable in cutting rubber, adhesive tape, leather and so on.
The experience will use dumbbell specimen and other special material, such as laminate
board and series of composite material.Easy and safety to operate.
Specifications:
Max. Force
1T (or 5 ton for optional)
Stroke
100mm
Workbench size
230mm*250mm
Press plate diameter
120mm
Output source
Min.4kg/cm2
Effective height
100mm
Size
Approx 780*430*400mm
Weight
Approx 70kg
Operation:
Placing the machine on a flat surface and adjust the four foot to make them smooth, put on the
cutting pad.
Open the air source, adjust the valve switch of the oil and water separator behind, and adjust the
air pressure gauge to be at least 4KG.
Putting PU rubber on the cutting pad, then put on the cutting die and press the red button switch
with both hands (For security, please must press with two hands together). The pressure plate
downward pressure onto the die and hold for a few seconds to allow the rubber to be fully cut off,
then let go hands and take out the specimen.
Please turn off the air supply source after using.
