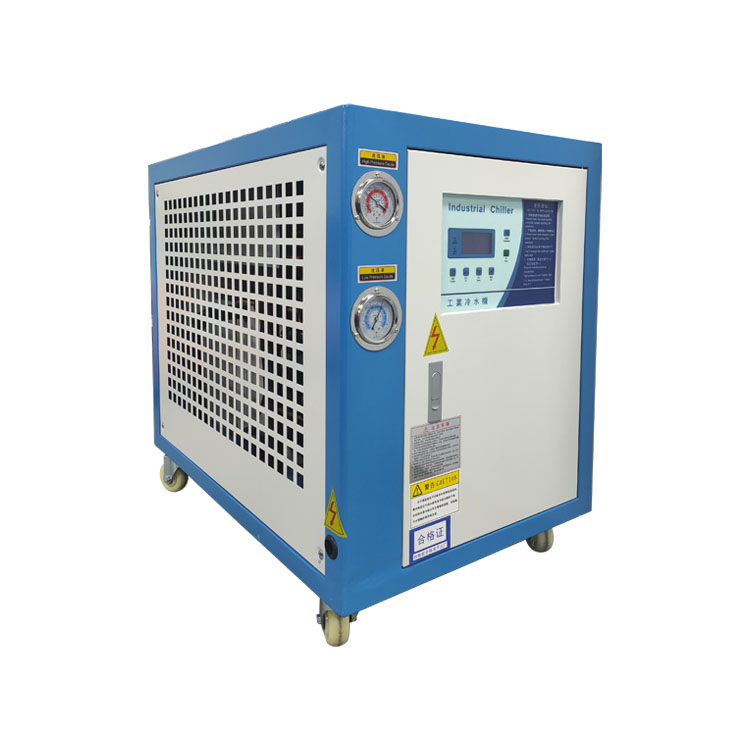

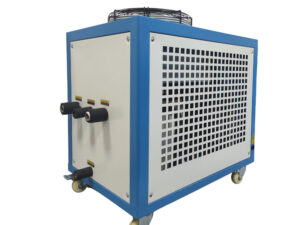

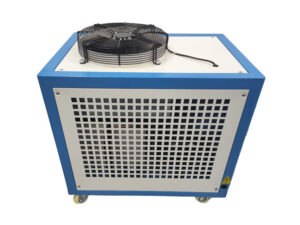

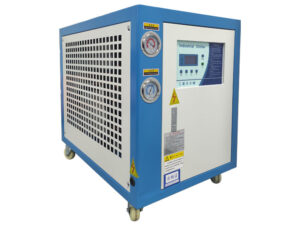

Plastic Industrial Water Cooling Chiller, Industrial Chiller
Model
NG-3310
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Machine configuration
Equipped with exact electric temperature controller which control the water temperature between 5-20℃.inside which there is a overload protector, high pressure abnormal protector, imported dry filter and swell valve for stable running and easy repairing and maintaince.
Optional scheme
Choose different specifications to meet different water pump pressure choose different electric voltage frequency requirements for power supply.
Pump configuration for option
Imported high efficiency pump is available according to customer’s requirement

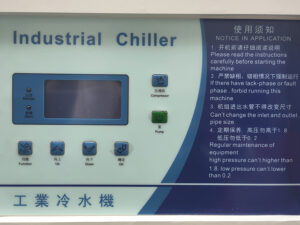

Multiple function operation panel
There are current monitor, compressor on-off switch, pump on-off switch, electric temperature controller, safety running alert light on the panel
Specification：
Model
Unit
NG-3311-05
NG-3311-10
NG-3311-12
NG-3311-15
NG-3311-20
NG-3311-24
NG-3311-30
NG-3311-40
Refrigeration capacity
kw
15
30.5
34.3
45
61
69
92
122
kcal/h
12900
26230
29498
38700
52460
59340
79120
104920
Compressor
Input power
kw
3.75
3.75×2
9
11
15
18
22
30
Output power
hp
5
5×2
12
15
10×2
12×2
10×3
20×2
Evaporator
Type
Pipe coil evaporator
Shell evaporator
Pipe diameter
Inch
1
1.5
2
2
2-1/2
2-1/2
2-1/2
3
Refrigerant
Type
R22
Quality
kg
2.5
5
6
7.5
10
11
12
18
Air cooled condenser
Type
Finned condenser
Pipe diameter
Inch
0.19×2
0.25×2
0.5×2
0.55×2
0.5×4
0.5×4
0.4×6
0.4×8
Chill water flow rate
L/min
70
110
150
170
230
270
330
480
Water tank capacity
liter
50
70
125
125
140
140
150
180
Pump
Power
kw
0.55
1.1
1.5
1.5
2.2
2.2
4
4
hp
0.75
1.5
2
2
3
3
5
5
Flow rate
l/min
100
100
200
200
300
300
300
300
Pipe connection size
Cooling water-outlet
Inch
3/8×4
1.5
2
2
2-1/2
2-1/2
2-1/2
3
Cooling water inlet
Inch
3/8×4
1.5
2
2
2-1/2
2-1/2
2-1/2
3
