Summary:

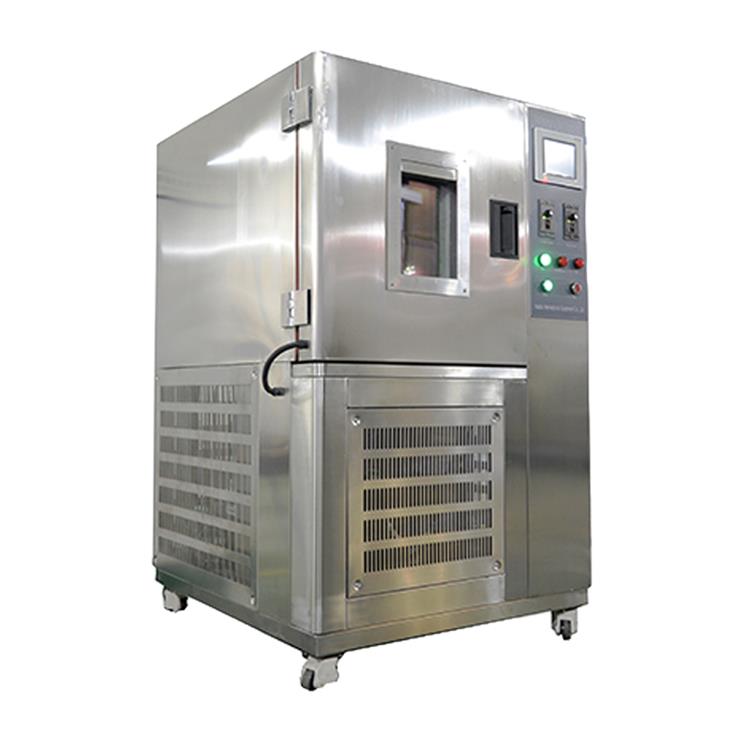

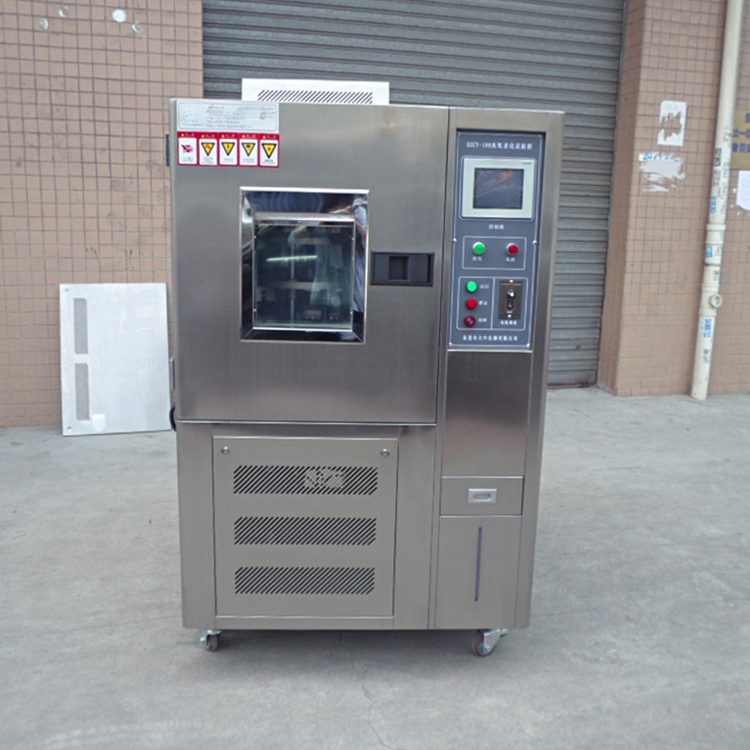

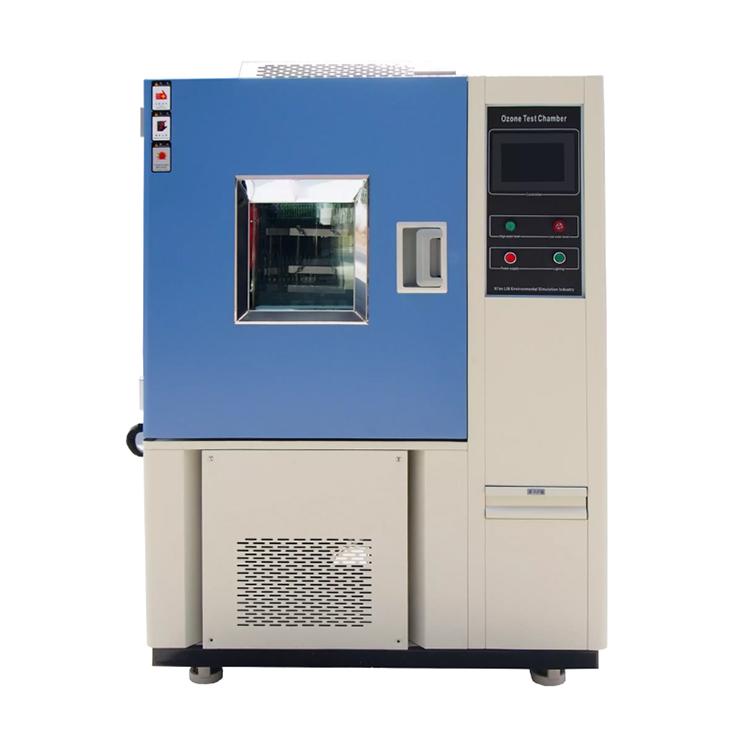

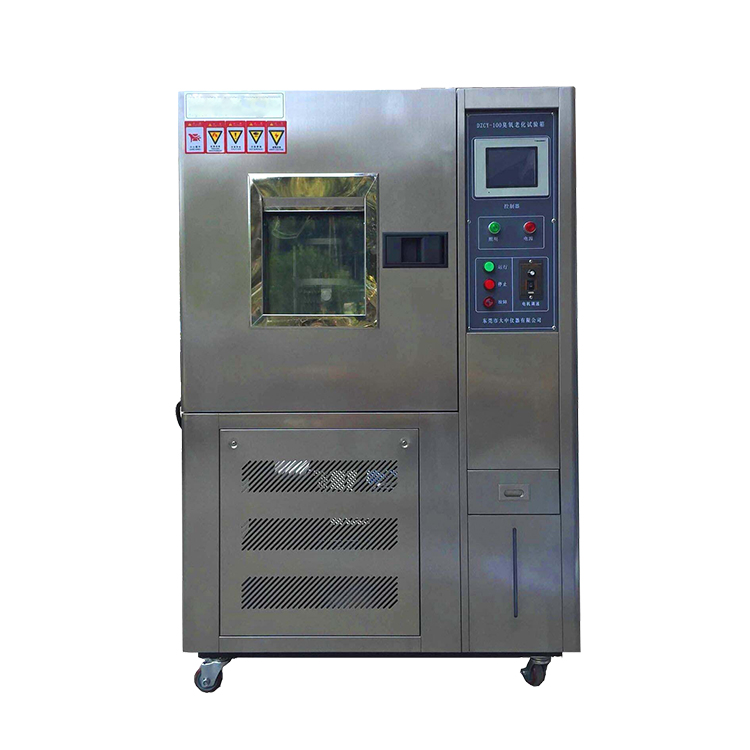

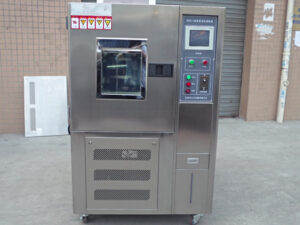

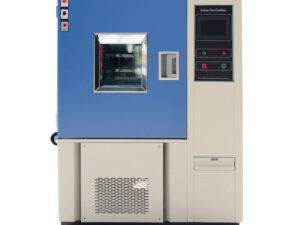

The Ozone aging test chamber is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The study of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.
The Environment Ozone Aging Test Chamber is mainly adopted for rubber products testing such as vulcanized rubber, thermoplastic rubber, cable insulation sheathing products, intermittent static tensile dynamic tensile deformation, or deformation under dynamic stretching and static stretching alternating, confined to light with constant ozone concentration in the air and constant temperature chamber exposed to detection, scheduled on the specimen occurred from the specimen surface cracking or other properties of the degree of change, resistance to ozone in order to assess the rubber aging properties.
Features:
1, Internal material is imported high quality mirror stainless steel plate.
2, External material adopts stainless steel
3, Insulation material: high-density glass fiber
4, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.
5, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.
6, Chamber bottom has high quality universal wheel and fixed foot cup.
7, Observation window uses multilayer hollow tempered glass.
8, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.
CONTROL SYSTEM

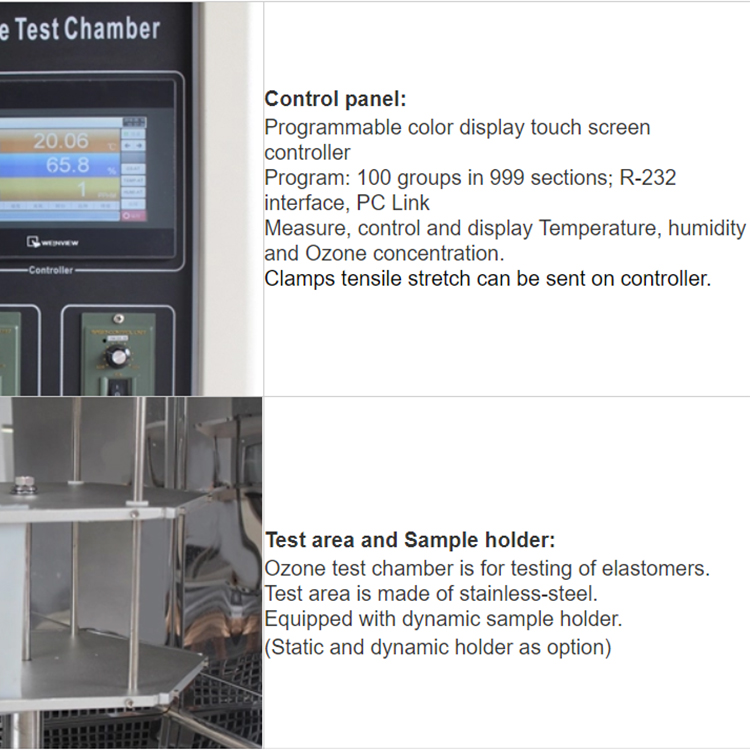

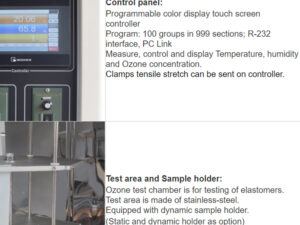

1, With imported micro-computer LCD controller to control the temperature.
2, PID control
3, With auto calculation function to reduce the setting inconvenience.
4, Heater: fin type radiator pipe nickel-chromium alloy u-shaped heater, auto calculate with high accuracy PID + SSR control
5, Temperature measurement: SUS#304, PT 100
Specifications:
Model
CY80
CY150
CY225
CY408
CY800
CY1000
Inner size W*H*D(cm)
40*50*40
50*60*50
50*75*60
60*85*80
80*100*100
100*100*100
Outer size W*H*D(cm)
85*140*95
95*150*115
95*165*115
105*175*135
145*190*135
155*195*150
Inner material
SUS 304 stainless steel
Temperature range
RT+10°C~60°C
Temperature deviation
±0.5°C (no load)
Temperature uniformity
±2°C (no load)
Ozone concentration range
0~500pphm (or custom made)
Ozone concentration
deviation
10%
Sample rack speed
360 degree rotating sample holder
Controller
Touch screen programmable controller
Ozone generator
using voltage silent discharge tube produce ozone
