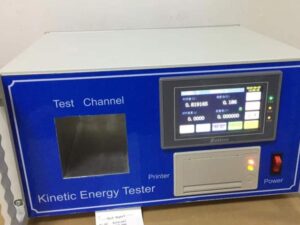

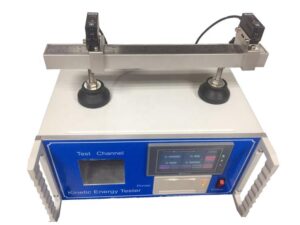

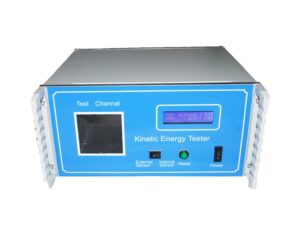

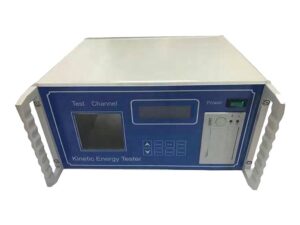

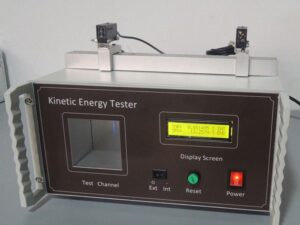

Toys Kinetic Energy Tester, Children Toys Testing Equipment Projectile Velocity Tester
Model
NG-318
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Application:
To determine the size catapults kinetic energy of toys, the ejection of parts of the test apparatus through the tube or external testing of the components of the two sensors detect the ejection toy parts used away after a certain period of time, it has calculated the move Energy. The main instruments used for this test launch of baby toys or children’s safety.
Principle:
When the sample is injected from the front of the test channel, the instrument can automatically capture the speed of the object and automatically record the time difference between the position before and after passing the test induction. According to the measured time value and sample weight, the kinetic energy value of the sample and its risk can be calculated.
Specification:
Model
NG-318
Sample test range
0.001g~1000,000.000g
Response time
10uS.
Speedometer time
1uS-15.000000S
Projectile size
maximum 50mm diameter
Minimum 2mm diameter
Internal testing channel size
76mmx76mm
Sensors distance
6inch ( internal sensor )
Adjustable
40mm – 400mm ( external sensor)
Direct-reading
Induction time, Test speed, Test power , Sample weight
Printer
Thermal printer
Dimensions
350 x 420 x 210mm (L x W x H)
Weight
20kg
Standards
ISO 8124-1 EN-71-1 16 CFR 1500 ASTM F963 4.8
