Summary:

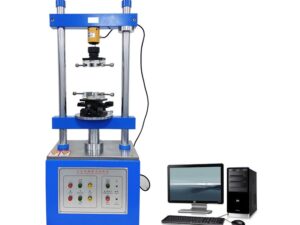

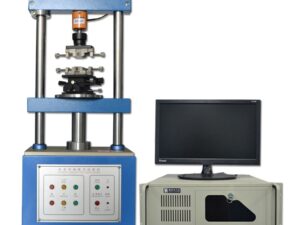

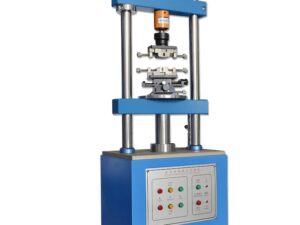

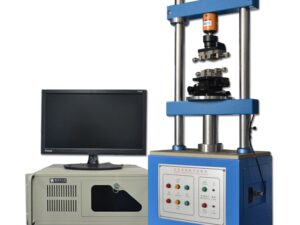

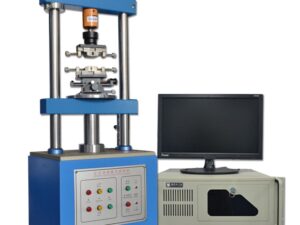

Automatic insertion force test machine is suitable for connectors insertion and withdrawal force tests, the
use of unique device automatically matched to find the heart of a variety of special fixture connector, the
plug can be completely accurate force results. All the testing information are setting by the computer and、it can automatically store testing condition,test result, (load-displacement), curve,life decay curve and
automatically generate reports.
This machine adopt high precision loading parts with servo motor for measurement and drive, can get
precision insertion force result. It is a kind of necessary machine for all kinds of connectors and electrical products manufactures for research and development together with quality control application.
Test Items:
Test hole plug connector.
Test row of the connector plug
Life test plug connector.
Single-pin connector and plastic Retention Test
Connector test
Spring test
Impedance measurements can be performed simultaneously (optional)
Various compression, tensile breaking strength test
Features:
All the testing informations are setting by the computer and it can automatically store: testing
condition,test result,(load-displacement),curve,life decay curve and automatically generate reports.
High precise：Load resolution：0.01gf，Displacement：0.001mm
Adopting high precision explosion Load Cell，Repeated errors：0.01%
High stability: adopt Japan Panasonic servo motor drive and no space, no ground ball screw drive, can
eliminate noise and resonance.
Can enter the upper and lower limit conditions and automatically rebel the test results Passed or Fail,
the maximum, minimum, average and standard deviation, etc.
Specifications:
Load capacity
2kg, 5kg, 20kg, 50kg, 100kg (optional)
Unit switch over
gf, kgf, lbf, N
Resolution
0.001kg
Load precision
±0.5%
Maximum travel
150mm
Test speed
0~200mm/min
Speed precision
0.5%
X,Y axis movement range
0~75mm
Displacement resolution
0.01mm
Dynamical System
Panasonic servo motor
Size
360*260*940mm
Weight
70kg
Power
220V,50HZ / Customized
