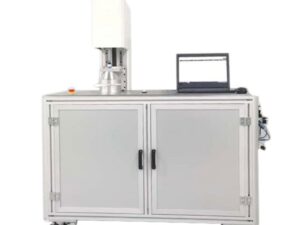

Introduction:

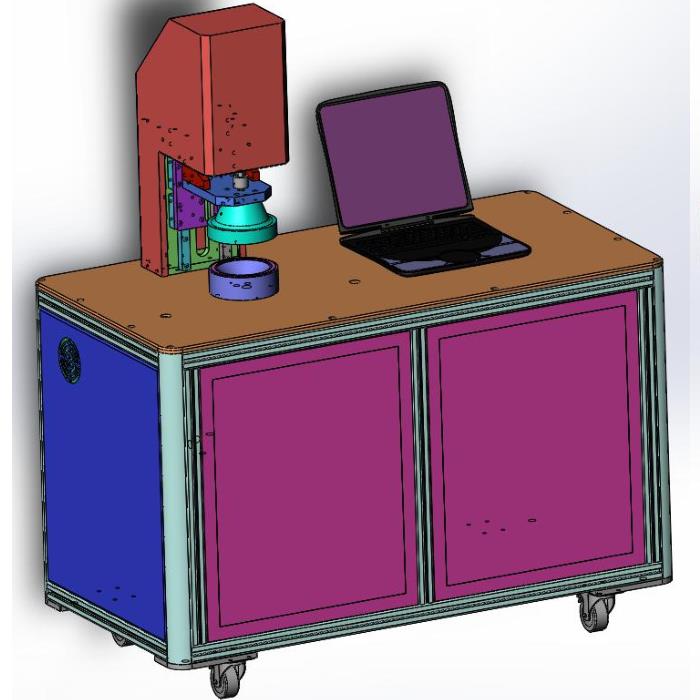

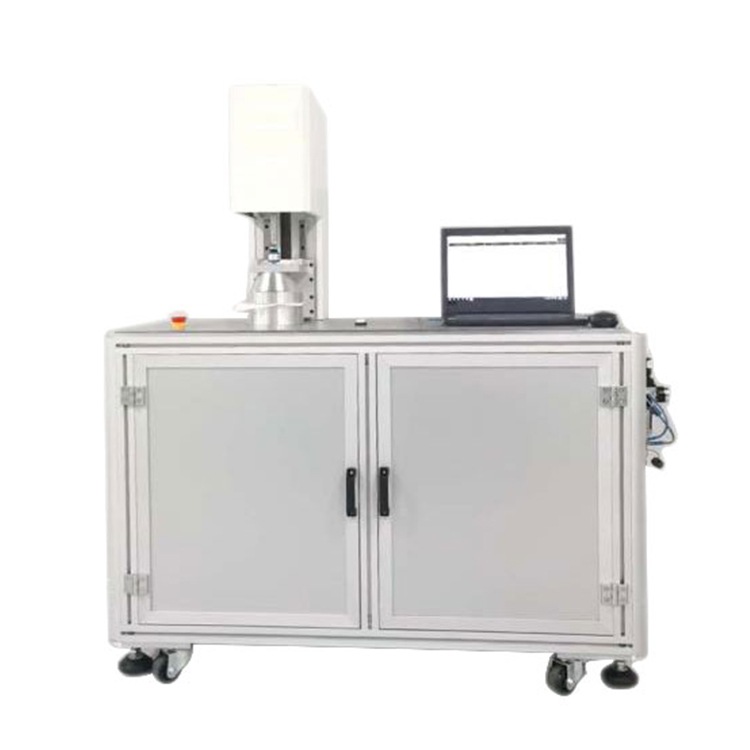

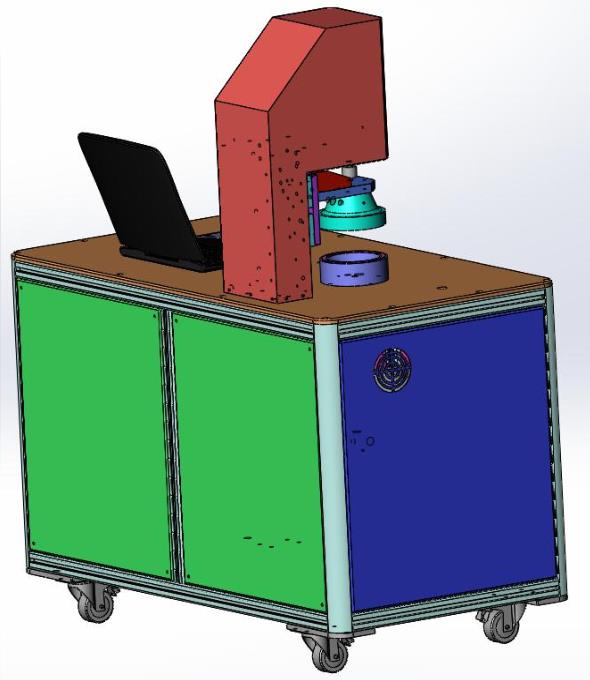

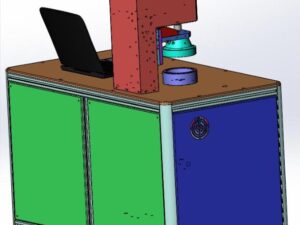

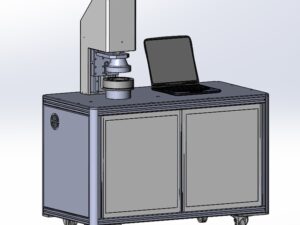

This Mask Particle Filtering Efficiency Tester is designed for suitable testing 20%-99.9% grade filter efficiency test, according to international standards to test the filter material. The tester is designed to be compact and lightweight design, and during testing, just only the proper power supply and compressed air (anhydrous, no oil) is required to be used in laboratories, factories, etc.
This equipment is used to test the filtration performance, filtration efficiency and filtration effect of the mask. At present, the mask is mainly divided into air filtration mask and air supply mask. This testing instrument is applicable to medical equipment testing center, safety protection testing center, labor protection testing center, drug testing center, disease prevention and control center, textile testing center, hospital, mask and respirator manufacturing enterprises, etc. It meets the technical requirements of GB 2626-2006 respiratory protective equipment – self suction filtration type particle respirator, GB 19083-2010 medical protective mask, and GB / T 32610-2016 daily protective mask.
Principle:
The instrument is composed of NaCl generator, data acquisition software, testing product tooling device, concentration detector, filtered concentration detector, computer data calculation device, pressure regulating device and tooling pipeline testing auxiliary device.
It is implemented by the photometer in the system to detect the concentration of mask before and after filtration, so as to detect the protective efficiency of respirator particles.
Standards:
YY / T 0469-2011: Medical surgical mask 5.6.2 Particle filtration efficiency.
YYT0969-201: Single-use Medical Face Mask
GB / T 32610-2016: Technical Specifications of Daily Protective Masks Appendix A Filtration Efficiency Test Method
GB 2626-2019: Respiratory protection Self-priming filter anti-particulate respirator 6.3 Filtration efficiency
GB 19082-2009: Technical requirements for medical disposable protective clothing 5.7 Filtration efficiency
GB24539-2009: Protective clothing- Performance requirements of chemical protective clothing
Main parameters:
Filtration efficiency test range
0 ~ 99.999%
Resolution
0.001%
Test flow range
10~100 L/min
Standard Test Area
100 cm2 (Can customize)
Resistance test range
0 – 1000Pa
Particle size ranges are detected
0.3,0.5,1.0,3.0,5.0,10.0 um
Dust sources
(1) DEHS, (2) 2% NaCl solution, (3) DOP (optional)
Control
PC + Software
System consumption
＜1500W
Power Supply
220V, 50Hz
Weight
Approx. 150Kg
Main features:
※ The cold-generating aerosol generator is used to produce continuous and stable aerosol particles, which is convenient for filling the solution.
※ The whole process of particle leakage prevention design protects the safety of experimenters.
※ Aerosol generator: aerosols of salty particles and oily particles can be generated.
※ Equipped with aerosol particle electrostatic charge neutralization device.

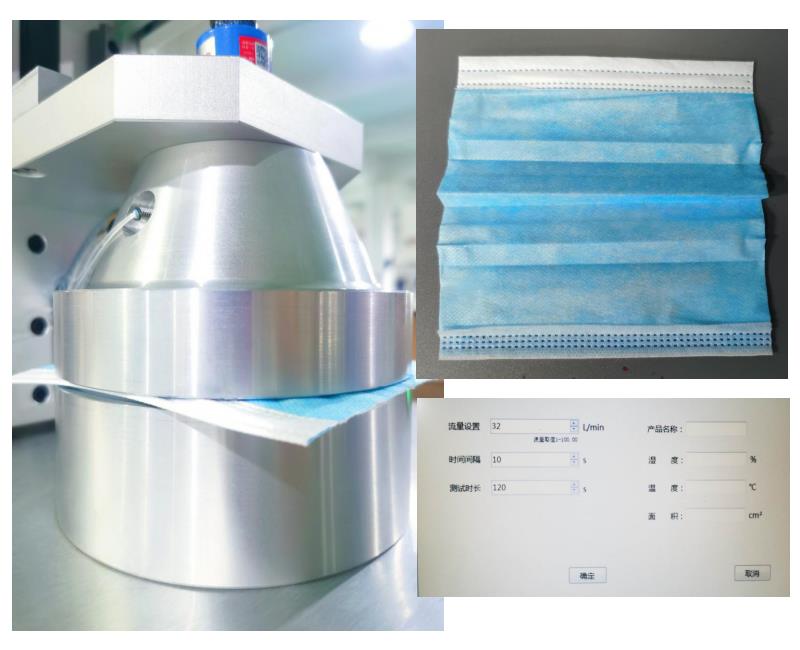

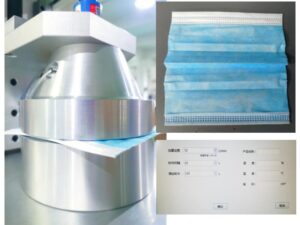

※ The pneumatic clamp is equipped with a protection device, which is safe and convenient to use.
※ Equipped with glass rotor flowmeter, vacuum pump, laser dust particle counter.
※ Control system: The computer controls the test process, automatically collects data, and is equipped with
dedicated computer and test software.
※ The computer automatically tests the gas concentration and automatically calculates the filtration efficiency;
it can save, output, query and print data.
※ It strictly complies with the relevant standards at home and abroad. The detection accuracy is high, the data
is accurate, the detection speed is fast, and the detection efficiency is 0-99.999%.
※ Built-in filter efficiency test and mask loading test function, high detection efficiency and simple operation.
The detection flow rate is automatically adjusted through the operation interface, and the control is accurate.
