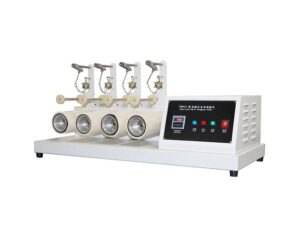

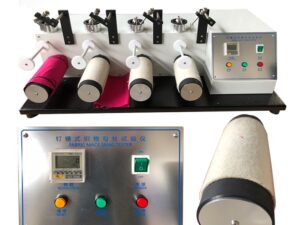

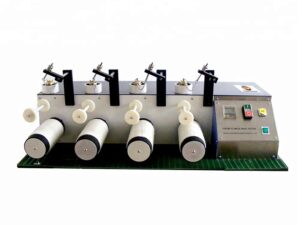

Fabric Textile ICI Snagging Tester, Snagging Resistance Tester for Mace Snagging Test
Model
NG-508
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Mace Snagging Tester is used to rapidly determine the tendency of fabrics to snag, (pull yarn loops from fabric) in normal wear. And suitable for woven and knitted fabrics made by textured yarn, non-textured
yarn, and spun yarn, etc., not suitable for the mesh fabrics, tufted fabric, and non-woven fabrics, etc..
Stainless steel test cabinet with glass observation panel provides with automatic timing of flame spread in 0.1-second increments from ignition. Brushing Device is included.
Features:
The surface of the instrument adopts high temperature plastic spraying technology, which is durable.
color touch screen display control, easy and simple operation

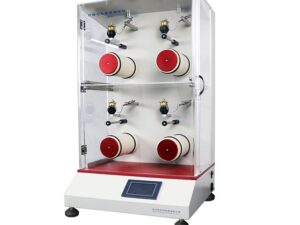

Acrylic transparent test station is adopted with beautiful appearance. The upper and lower levels of the station can save the installation and use space of the instrument.
Station lighting facilitates direct observation of test samples.
Automatic stop after the test, and the speed can be set within the adjustment range.
Standard:
ASTM D3939 Standard Test Method for Snagging Resistance of Fabrics (Mace Test Method)
JIS L 1058 Test methods for snag of woven fabrics and knitted fabrics
VDA 230-220 Textiles for the automotive interiors – Determining the thread puller tendency of textiles mace snag test
Test Procedure:
1.Place tubular fabrics specimen on cylindrical drum of test apparatus.
2.Set the counter for 600 revolutions (approximately a 10-mm test) and operate the mace snagging tester.
3.Remove the specimens from the drums.
4.Grade the test specimen and record.
Specifications:
Working Station
4
Rotate Speed
60 R.P.M. (± 2 rpm.) (As Per Standards)
Counter
0～99999
Diameter of Cylinder
Φ82mm；width210mm

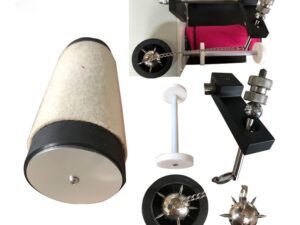

Mace Weight
160±10g
Mace Number
11 maces
Mace Specifications
Length 10mm, diameter of tip Φ0.13mm
Chain
Φ10mm, Working width 125mm
Distance between Mace and Chain
45mm
Dimension of Machine
980×500×450mm
Power supply
220V 50Hz
