Summary:

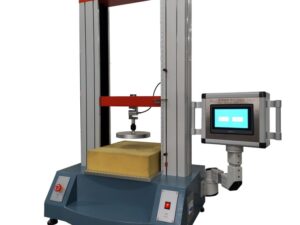

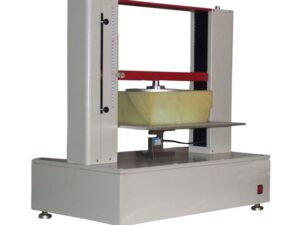

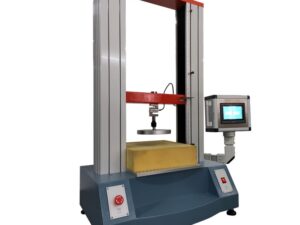

Foam Indentation Hardness Compression IFD Tester is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic. Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the
pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.
Standards:
ISO 2439,ISO 3386-1(ASTM D3574-B, DIN 53576, JIS K6400-6)
Features:
Automatic zeroing: after the computer receives the starting instruction of the test, the system automatically zeroing;
Automatic return: after the sample breaks, it automatically returns to the original position.
Automatic shift: according to the size of the load, you can switch different gears to ensure the measurement accuracy;
Change the speed: the machine can change the test speed arbitrarily according to different samples;
Display value calibration: the system can realize the accurate calibration of force value;
Control method: test methods such as test force, test speed, displacement and strain can be selected according to test requirements.
Multi-purpose machine: equipped with different specifications of sensors, can achieve multi-purpose machine;
Curve traversal: after the completion of the test, you can use the mouse to arbitrarily find the test curve point by point of the force and deformation data and analysis;
Display: dynamic display of data and curve test process;
Results: the test results were accessible and the data curves were analyzed.
Limit: with program control and mechanical limit;
Overload: automatic shutdown when load exceeds rated value;
Specifications:
Control and display
Computer + Software
Sensor
USA “TRANSCELL” Load cell
Capacity
200KG
Unit
G, KG, N, LB can be exchanged
Accurate Grade
0.5 grade
Up plate
Diameter 200mm, bottom fillet R1mm
Low plate
420×420mm, holes diameter 6mm, space 20mm
Max stroke
200mm
Test speed
100±20mm/min
Motor
Japan Servo Motor
Driver
Taiwan high precision ball screw
Power
AC220V, 50/60HZ (custom-made)
Weight
160KG
Accessories
One Set of Computer with Software, Software Disc
