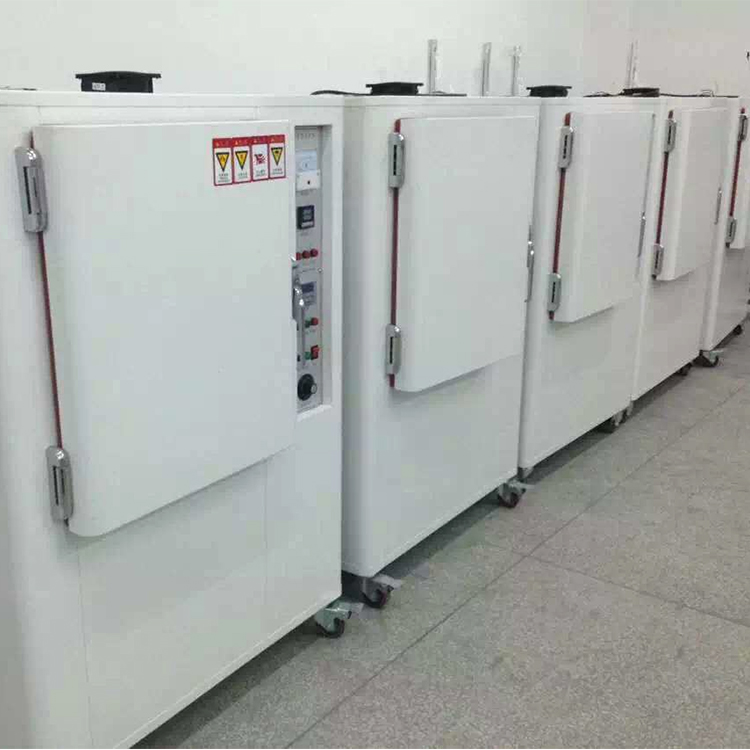

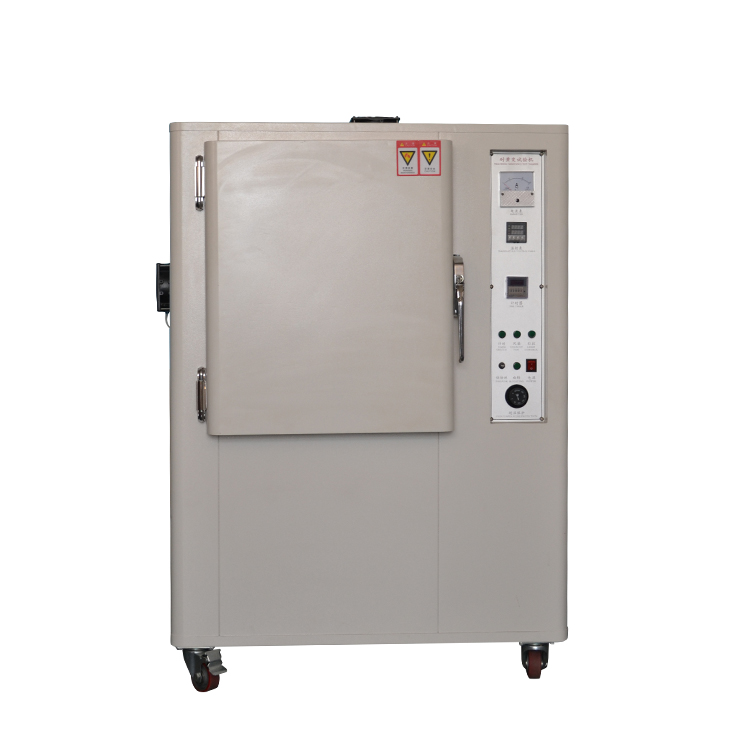

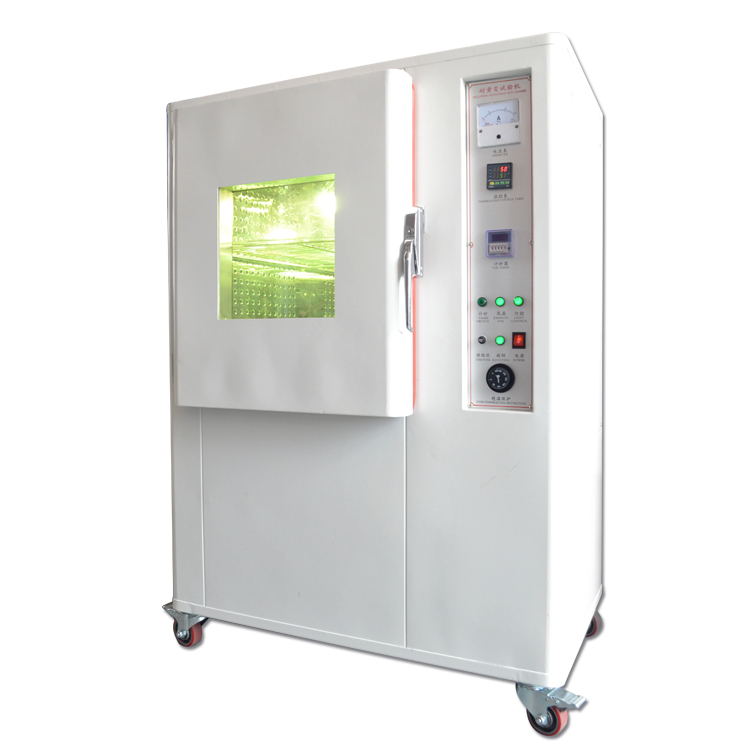

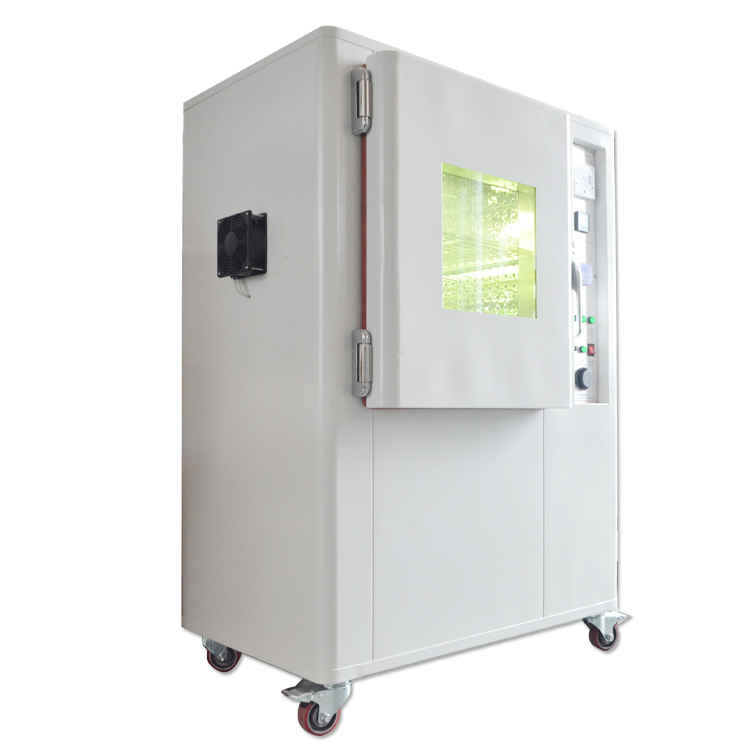

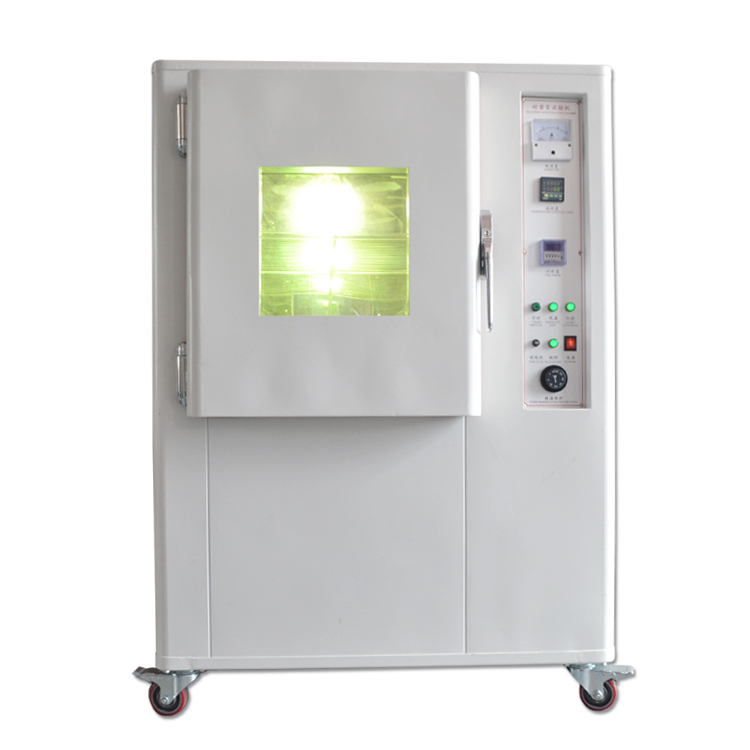

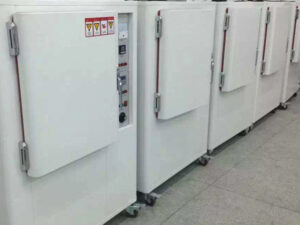

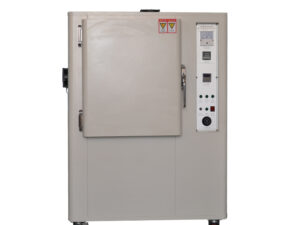

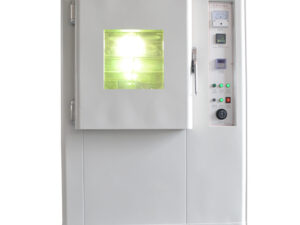

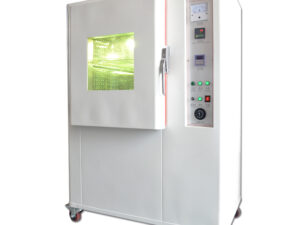

Climate Anti Yellow Aging Test Chamber, Rubber Yellowing Aging Tester
Model
NG-HB
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Anti-yellowing aging test chamber can provide the simulative heat of the sun and ultraviolet radiation environment of space. It is used for observing the anti-yellowing degree of the sample after a period of time effected by the ultraviolet ray and the temperature. Grey stain can be used for reference standard, to judge it’s yellowing degree.
Products will change their color when radiated by the sun or influenced by the environment of the container. Use the UV lamp 300W, so that the experiment can be finished in a short time. The machine can also be used as an aging tester or an oven, presenting a multi-function machine.
Standards:
CNS-3556、JIS-K6301、ASTM-D2436 e
Features:
Programmable Controller Accelerated Anti Aging Equipment can do two kinds of testing: aging and
anti yellowing
Aging: Programmable Controller Accelerated Anti Aging Equipment can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.
Anti-yellowing: Accelerated Anti Aging Equipment stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.
Specifications
NG-HB150 Anti-yellowing Aging Test Chamber
Inner Box Size
50×50×60cm
Temperature Range
Normal Temperature~200°C
Control Mode
Automatic Calculation Controller
Temperature Display
0.1°C
Control Accuracy
± 3°C
Distribution Accuracy
± 1°C(at-100°C)
Time Memory
0-999 hours, Power Failure Memory Type, with Buzzer
Wheel Speed
45cm,10±2 round/ min
UV Light Source
UV300W Bulb
Standard Accessories
Shelf Board 2 pieces
Heating Method
Hot Air Circulation
Security Devices
Over-temperature power-off indicator light;
Safety overload switch ammeter
Manufacturing Material
Internal Stainless Steel SUS304;
External Advanced Baking Varnish
Outside Dimension (L×W×H)
100×65×114 cm
Weight
130 kg
Power
1#,AC220V, 15A
