Summary:

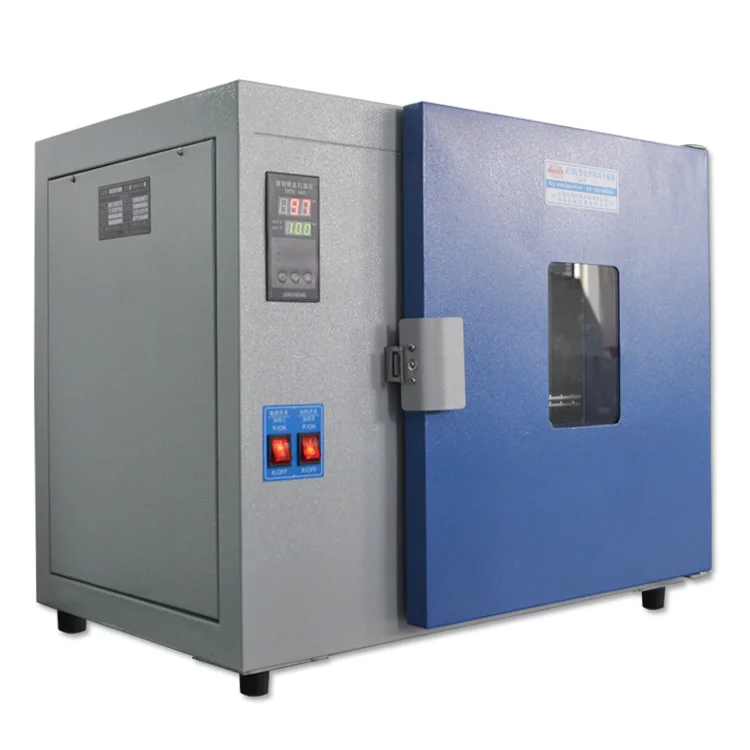

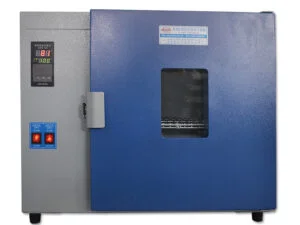

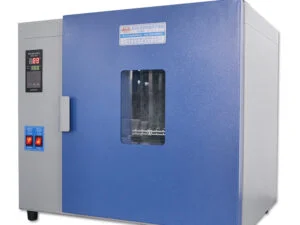

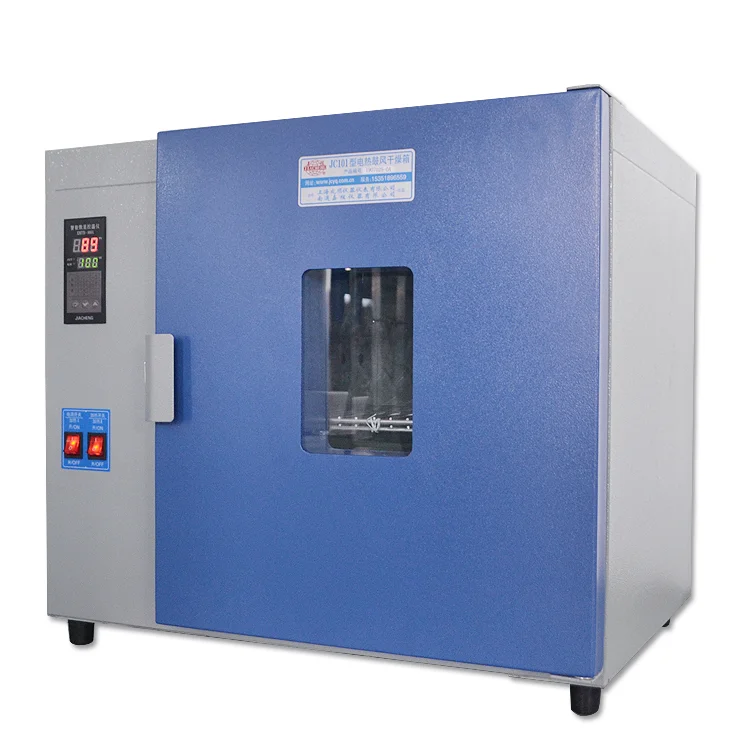

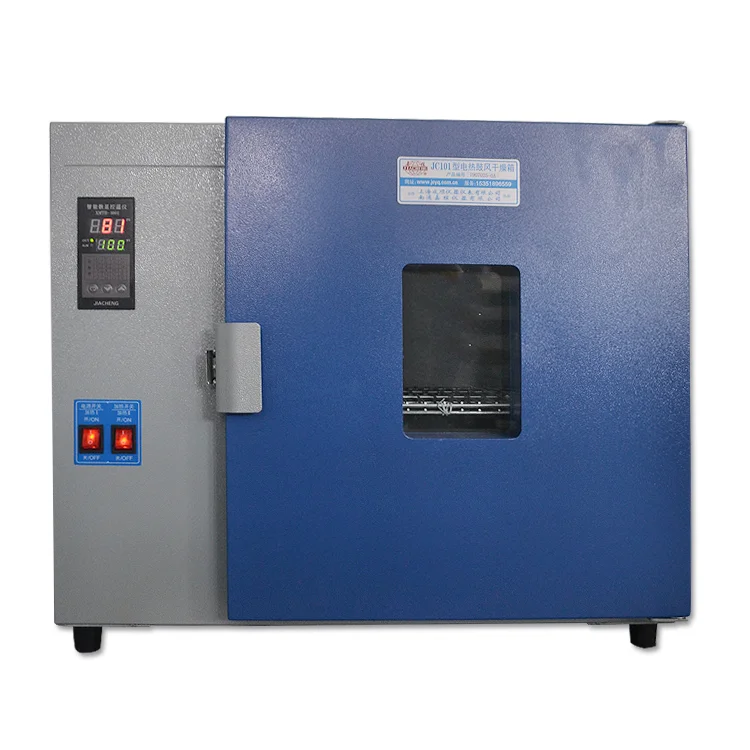

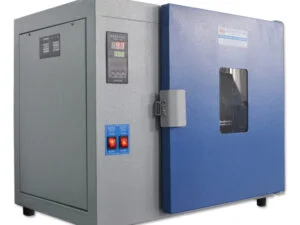

Digital Hot Air Circulation Drying Oven is applicable to such tests as drying, cure melting, sterilizing in industrial and mining enterprises as well as in laboratory and scientific research institutes. Normally the oven
is widely used in the fields of Electrics, Electronics, Instruments, Materials, Education, Medicine, chemical industry or other Scientific Research Organizations and Production Units.
Features:
Microcomputer intelligent control, setting and actual temperature display, electronic timing
Double glass observation window, stainless steel liner
There is a vent at the top for the water and exhaust gas.
PID self – tuning, over – temperature alarm, automatic stop at the end of work
Overheat protection, over the limit temperature will be automatically interrupted, tracking alarm function, stirring heat circulation, heating, air can be independently operated to ensure the safety of personnel and equipment
The hot air sterilizer USES the high temperature dry heat to oxidize the microorganism, denaturation of protein, concentration of dielectric and so on.
By destroying the cell protoplasm through oxidation, the microorganism dies and can kill all the microorganism within a certain heating time

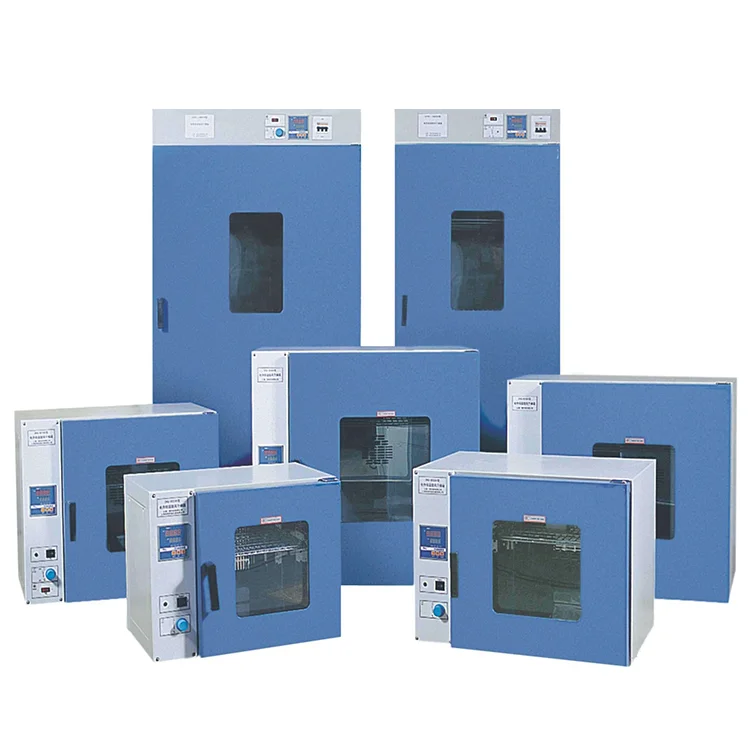

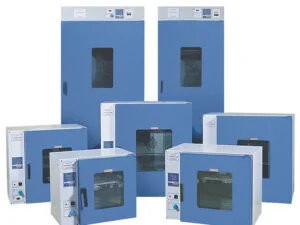

Dimension Selection (or customize)
Model
DZ-CJ101-1
DZ-CJ101-2
DZ-CJ101-3
Volume (L)
43 L
71 L
136 L
Working Size (mm)
350*350*350
450*450*350
550*550*450
Exterior Size (cm)
590*660*520
690*760*520
790*870*640
Model
DZ-CJ101-4
DZ-CJ101-5
DZ-CJ101-6
Volume (L)
225 L
640 L
1000 L
Working Size (mm)
750*600*500
1000*800*800
1000*1000*1000
Exterior Size (cm)
1050*980*700
1300*1210*1000
1300*1420*1200
Main Parameters
Temp Range
RT+10℃~250℃
Temp Accuracy
1 ℃
Temp Fluctuation
±1%
Working Temp
5℃~40℃
Inside Material
Stainless Steel
Power
220V / 380V
