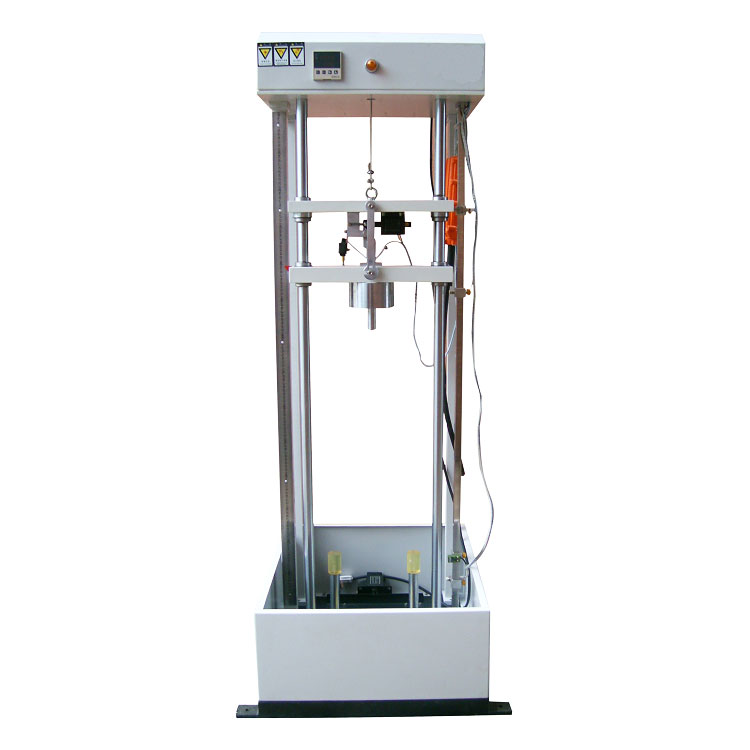

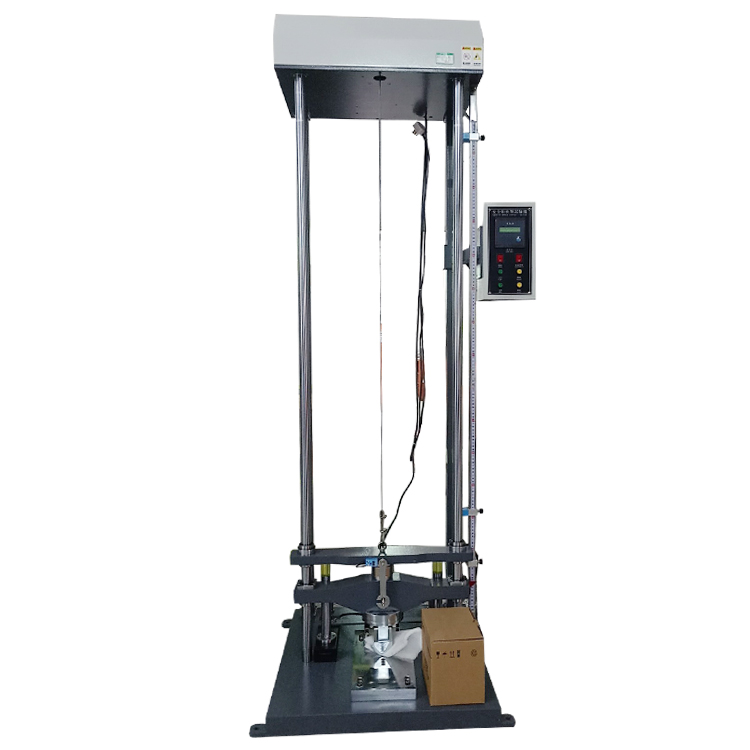

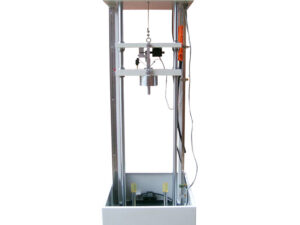

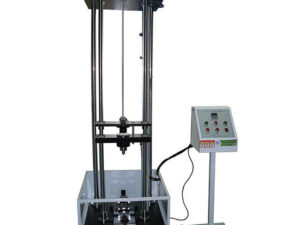

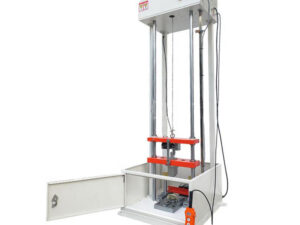

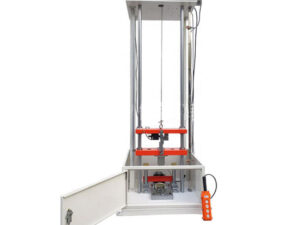

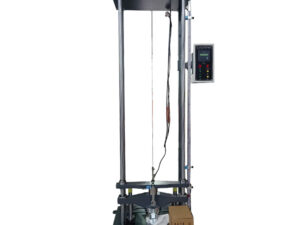

Safety Shoes Drop Impact Testing Machine, Safety Footwear Impact Tester
Model
NG-351
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Introduce:
Best Safety Shoes Footwear Impact Resistance Tester is installed a steel striker adaptered to fall freely on vertical guides from a predetermined height to give the required impact energy to
the toe of safety footwear for measuring the degree of the dent. In addition, the toecap should not
develop any cracks on the test axis with go through the material.
Standard:
It complies with BS-953, EN-344, ANSI-41, CSA-Z195, ISO 8782
Technology Parameters:
Striker Weight
(EN) 20±0.2kg, (BS, ANSI) 22.7KG
Drop Height
0~1100mm auto adjustable
Impact Energy
(EN)200J, (BS, ANSI)1002J
Striker
(EN)3±0.1mm, (ANSI)ø25.4
Dimension
70×70×180cm
Weight
185kg
Power
AC220V/50Hz or others
Function instruction:
(up): Control the beam and its rise when it grips the impact head
(down):Control the beam and its fall when it grips the impact head
ON/OFF:Switch on the control panel
(release):The impact falls down (the test method is as follow)
Note :The impact speed in the range of 4.35~4.5 is normal
(The speed is shown on the speed chart)
