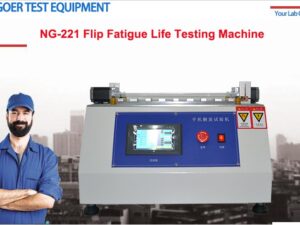

Flip Phone Life Tester, Mobile Phone Cover Clampshell Life Fatigue Tester
Model
NG-221
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

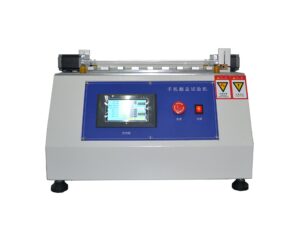

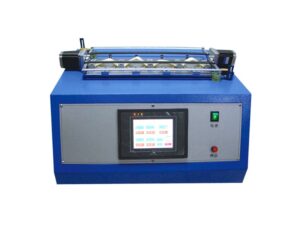

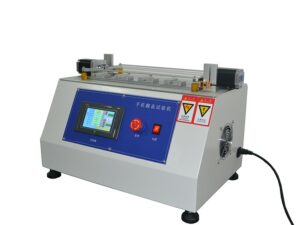

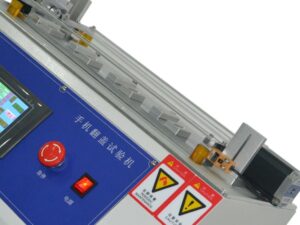

The mobile phone clamshell life testing machine is a special equipment for clamshell fatigue test.Its structure design is reasonable, unique, small volume, suitable for limited space location or in the temperature control box in the test environment.Using the sensor to directly detect the flip count of mobile phone, through two stepper motor movement over transmission, open and close the action, stable operation of the equipment, low noise, maintenance free.Four product tests can be done at one time. The machine automatically counts the number of times and automatically stops when it reaches the set number. It has full applicability for different types of mobile phones.
Features:
Touch Screen controlled, easy and convenient operation.
Four test station at same times, improve the work efficiency.
The test stroke and test speed can be settable as required.
Stable running, low noisy and maintenance-free.
Complete machine, don’t need to assemble, can use directly.
Specifications:
Test Stations
4 test stations
Display
Colour Touch Screen
Swing Angle Range
0～180° adjustable
Test speed
10～70 times / minutes adjustable
Sample thickness
10~60mm
Motion mode
Automatic
Counter
0~999999 (Memory counting)
Fixtures
Antistatic Fixture
Power
AC220V±10% 50/60HZ
Machine size
Approx 620*320*380mm
Weight
Approx 60kg
