Summary:

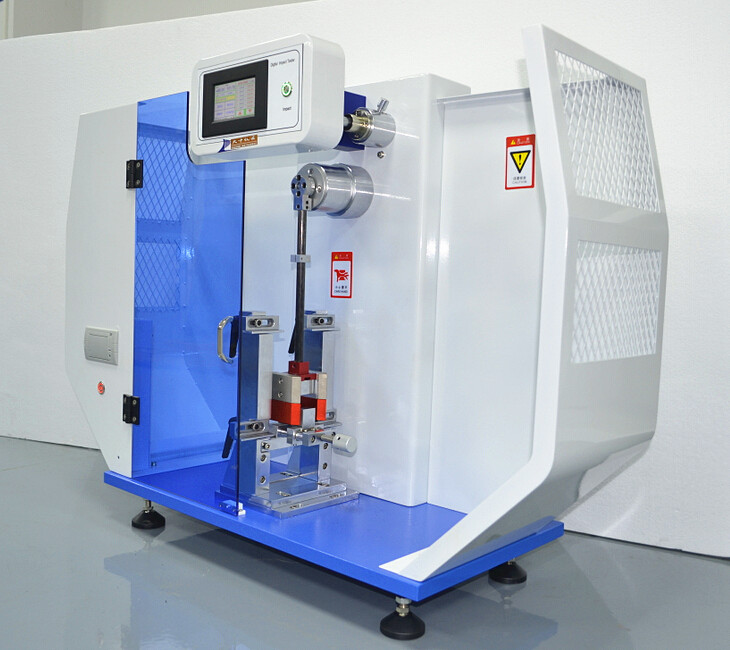

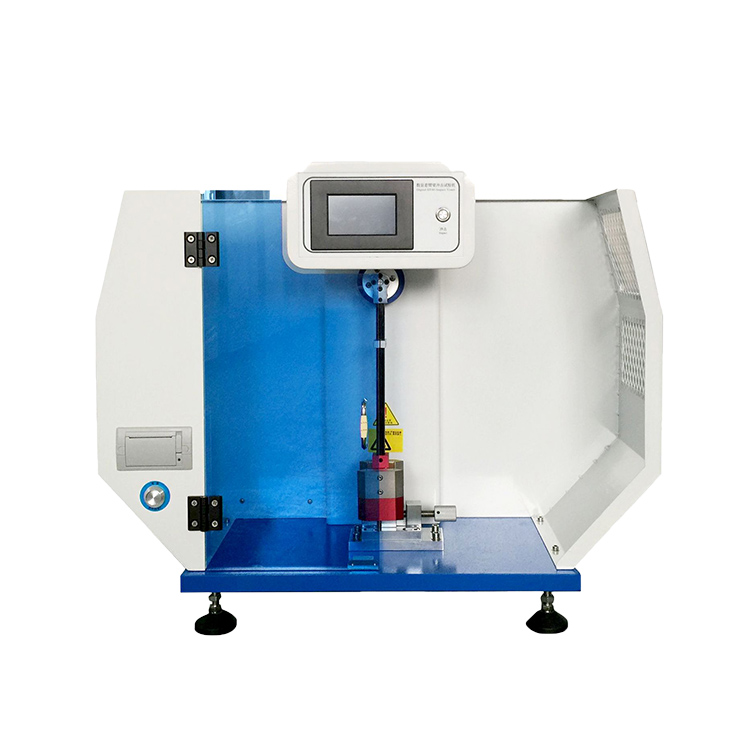

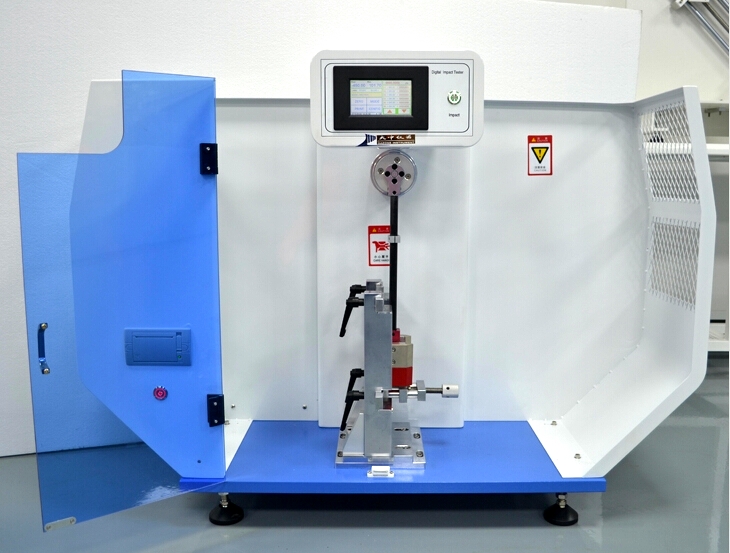

This Digital Type Izod and Charpy Impact Tester is mainly used for the determination of impact toughness of non-metallic materials such as hard plastic, reinforced nylon, glass reinforced plastic, ceramic, cast stone and electrical insulating materials. It is an ideal test equipment for chemical industry, scientific research units, universities and colleges, and quality inspection departments.

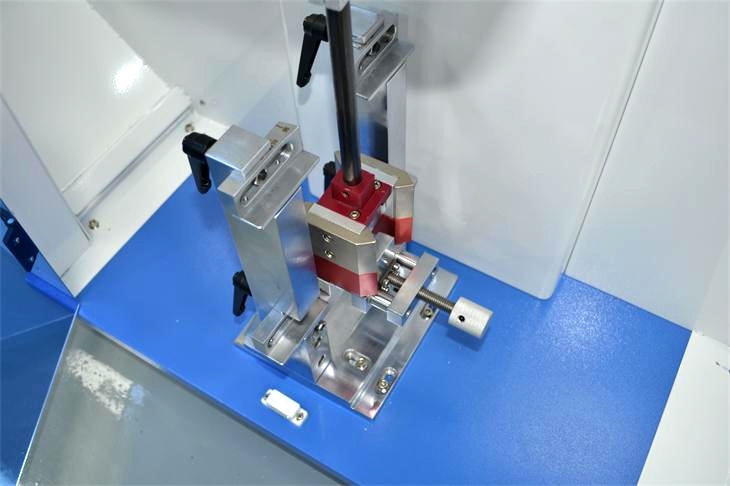

This tester has a clear function; energy loss measurement and automatic compensation function; strength, standard deviation, and other functions automatically calculate impact. CHARPY clamp jaws wedge from mouth, clamping freely, fast clamping, is the latest development of our new products.
Standard:
ISO179-2000, GB/T1043-2008, JB/T8762-1998, GB/T 18743-2002, ISO180-2000, GB/T1843-2008, JB/T8761-1998, ASTM D256-2010 ETC.
Features:
This impact tester adopts micro-computer technology to manufacture,it’s a intelligentize and digital
impact tester.It can correct automatically energy loss caused by friction and wind drag.(After sample
breakage,It’s one-time finished for checking pendulum bob surplus energy and correcting the energy loss.)
This impact tester is used to electronic display to show the test result, test result output by
printer.Reading intuitive,improving the accuracy.
Adopt carbon fiber oscillating bar. On the direction of impact, improve the rigidity of materials and largest concentrate impacting mass on center of mass of pendulum bob, really do a no vibration impact test and
increase service life.
Adopts rotary encoder grating angular technology with high resolution digital encoder OMRON brand,
high accuracy, good stability, big measurement ranges. Digital showing impact energy, impact strength, Pre-
elevation, lead angle, average value, energy loss etc.
Automatically calculate the final result, test data can be stored 24 group data and averaging.
Specifications:
Impact energy
1J, 2.75J, 5.5 J
Display mode
Color touch screen
Accuracy
0.01J
Impact velocity
3.5m/s
Pendulum elevation
150°
Impact center distance
335mm
Blade fillet radius
R=0.8±0.2mm
Angle accuracy
Original OMRON encoder, 0.01°
Power
220V±10% 50HZ
